Saab 9000 1992-1993 AC evaporator RAC

Group 8c Heating and ventilation, section 410

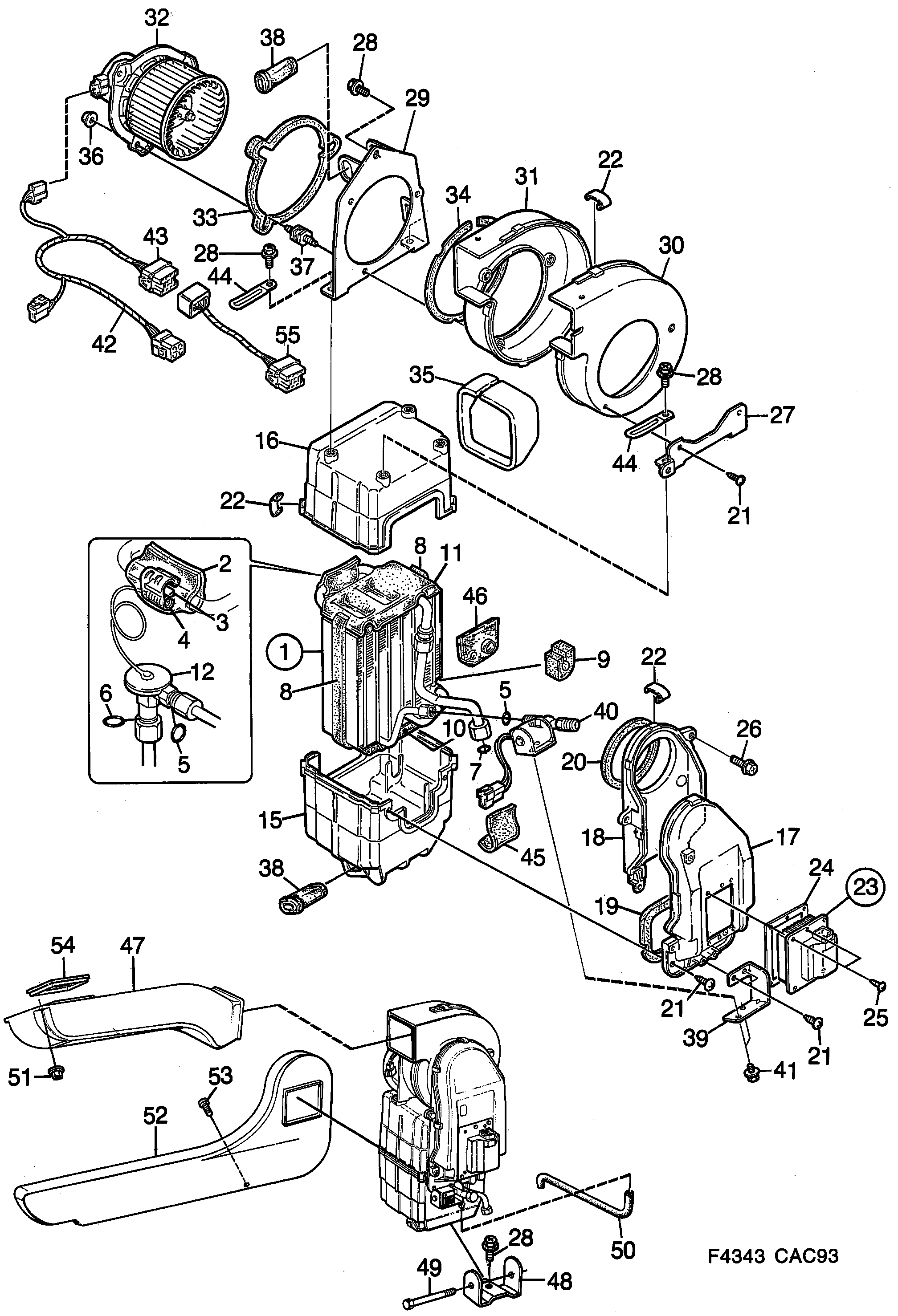

Saab 9000 AC evaporator RAC diagram

Pos	Article	Part No.
1	Evaporator	9629734
2	Insulation	4070710
3	Holder	4072252
4	Clamp	4072773
5	O-ring	30541940 (replaces 4318028)
6	O-ring	30541941 (replaces 4318036)
7	O-ring	30541943 (replaces 4318051)
8	Seal	9631029
9	Seal	9631037
10	Seal	9631045
11	Seal	9631052
12	Expansion valve	9631060
15	Evaporator housing	9629718
16	Evaporator housing	9629726
17	Duct	9631516
18	Duct	9631524
19	Seal	4071064
20	Seal	9629825
21	Screw	7922347
22	Clamp	4070736
23	Control unit	9630005
24	Seal	4070082
25	Screw	7922149
26	Screw	7965544
27	Bracket	9629767
28	Screw	7972441
29	Attaching plate	4070033
30	Fan housing	9630971
31	Fan housing	9629866
32	Fan unit	4070017
33	Seal	9629817
34	Gasket	4072765
35	Seal	9629833
36	Nut	11900451 (replaces 7977929)
37	Rubber damper	4070686
38	Suspension	4070066
39	Bracket	4072757
40	Solenoid valve	4070074
41	Screw	8059362
42	Cable harness	4073649
44	Clamp	4074506
45	Insulation	4074498
46	Grommet	9631532
47	Duct	9629692
48	Bracket	9629783
49	Screw	9631557
50	Draining hose	9629940
51	Nut	4062329
52	Duct	9629999
53	Screw	92151992 (replaces 7972938)
55	Cable harness	4418372
