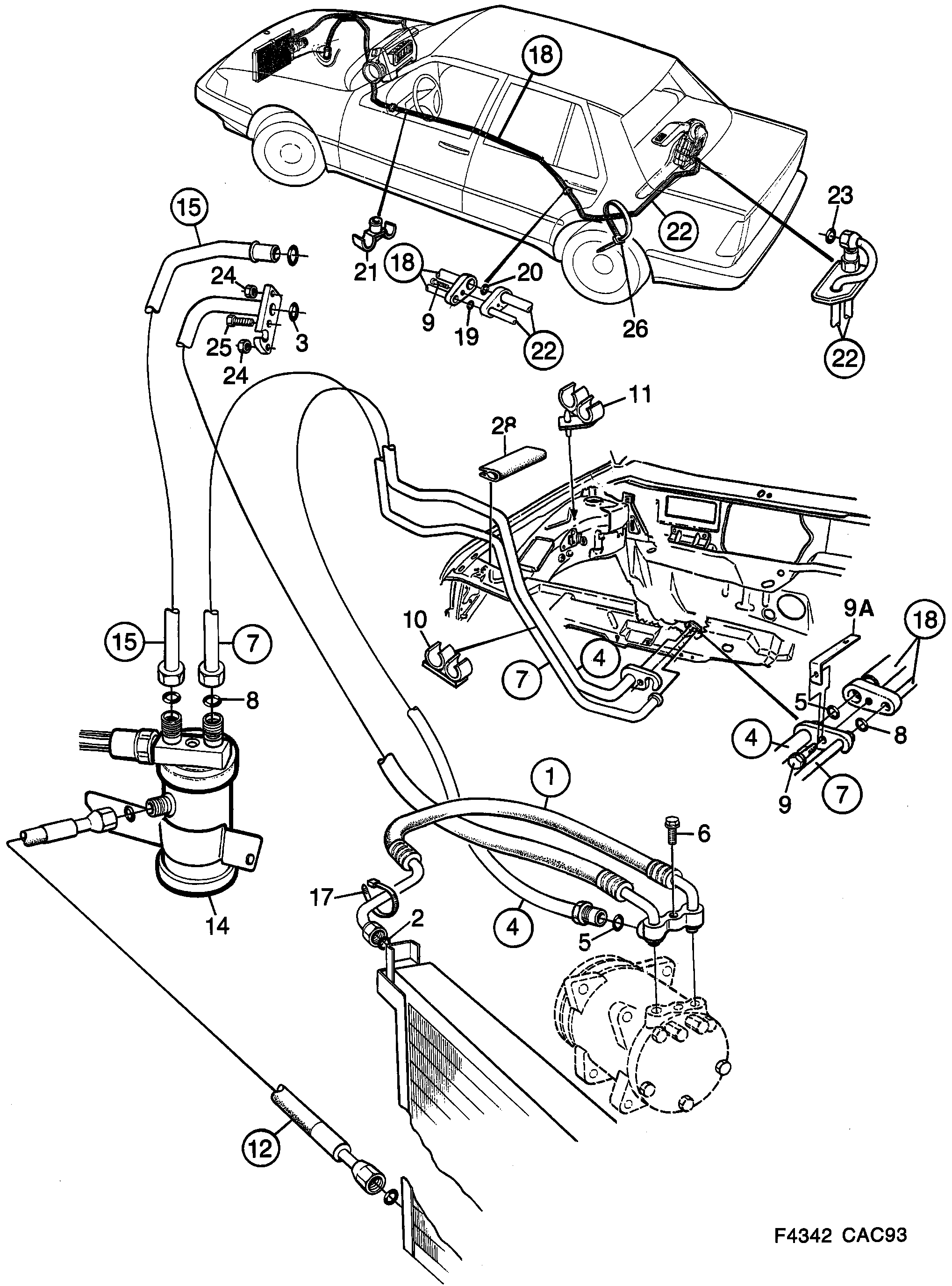

Group 8c Heating and ventilation, section 380
| Pos | Article | Part No. |
|---|---|---|
| 1 | Hose | 4071387 |
| 2 | O-ring | 30541941 (replaces 4318036) |
| 3 | O-ring | 30541943 (replaces 4318051) |
| 4 | Hose | 4071262 |
| 5 | O-ring | 4318044 |
| 6 | Screw | 92151523 (replaces 7982564) |
| 7 | Hose | 4071296 |
| 8 | O-ring | 30541940 (replaces 4318028) |
| 9 | Screw | 7978232 |
| 9A | Bracket | 4319802 |
| 10 | Pipe bracket | 4318473 |
| 11 | Pipe bracket | 30541956 (replaces 4318325) |
| 17 | Tie strap | 11900513 (replaces 7971880) |
| 18 | Tube | 4072518 |
| 21 | Pipe bracket | 4074027 |
| 22 | Tube | 4072500 |
| 24 | Nut | 11900451 (replaces 7977929) |
| 25 | Screw | 11900355 (replaces 7978117) |
| 26 | Tie strap | 7971898 |
| 28 | Wear protection | 4175287 |
