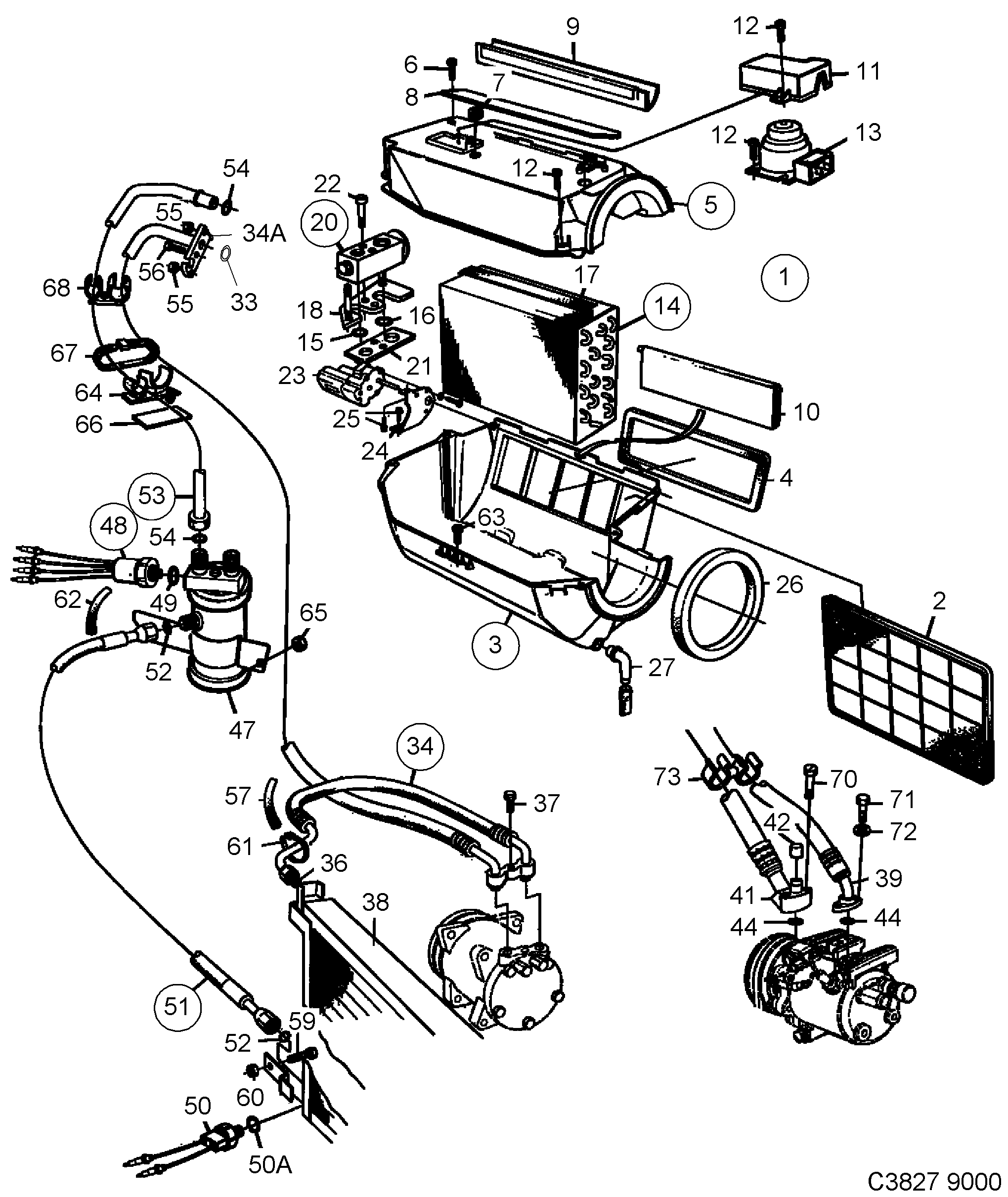

Group 8c Heating and ventilation, section 350
| Pos | Article | Part No. |
|---|---|---|
| 1 | Evaporator housing | 4071684 |
| 1 | Evaporator housing | 4071940 |
| 2 | Compartment filter | 4072393 |
| 3 | Gauges | 30541966 (replaces 4319125) |
| 4 | Seal | 4072369 |
| 5 | Gauges | 30541967 (replaces 4319133) |
| 6 | Screw | 92150102 (replaces 7972946) |
| 7 | Bushing | 30541974 (replaces 4319646) |
| 8 | Filter cover | 30541951 (replaces 4318218) |
| 9 | Water drain | 4073359 |
| 10 | Shutter | 4073375 |
| 11 | Protecting casing | 30541952 (replaces 4318234) |
| 12 | Screw | 7922214 |
| 13 | Thermo contact | 4542965 (replaces 4318317) |
| 14 | Evaporator | 4319117 |
| 15 | O-ring | 30541941 (replaces 4318036) |
| 16 | O-ring | 4318044 |
| 17 | Seal | 9622572 |
| 18 | Plate | 4073417 |
| 20 | Valve | 4319141 |
| 20 | Valve | 4319158 |
| 21 | Seal | 4073391 |
| 22 | Screw | 8097800 |
| 23 | Electrical motor | 9624867 |
| 24 | Attaching plate | 4073383 |
| 25 | Screw | 7973126 |
| 26 | Seal | 30541953 (replaces 4318242) |
| 27 | Drain valve | 4073532 |
| 33 | O-ring | 30541943 |
| 34 | Hose | 4632857 |
| 34 | Hose | 4632865 |
| 35 | O-ring | 30541943 (replaces 4318051) |
| 37 | Screw | 92153206 (replaces 7978307) |
| 38 | Condenser | 4755492 (replaces 4071957) |
| 38 | Condenser | 4755492 (replaces 4382404) |
| 39 | Hose | 4382628 (replaces 4071916) |
| 39 | Hose | 4382628 |
| 39 | Hose | 4382610 (replaces 4071908) |
| 39 | Hose | 4382610 |
| 41 | Hose | 4382644 (replaces 4319216) |
| 41 | Hose | 4382644 |
| 41 | Hose | 4071932 |
| 41 | Hose | 4382636 |
| 42 | Plug | 30542840 (replaces 4318705) |
| 47 | Reservoir | 4074340 |
| 47 | Reservoir | 4383584 |
| 48 | Pressure monitor | 4319984 |
| 49 | O-ring | 4073979 |
| 50 | Pressure monitor | 4071981 |
| 51 | Hose | 4383238 (replaces 4319588) |
| 52 | O-ring | 30541940 (replaces 4318028) |
| 53 | Tube | 4319570 |
| 55 | Nut | 11900451 (replaces 7977929) |
| 56 | Screw | 11900355 (replaces 7978117) |
| 57 | Protection | 9631367 |
| 59 | Screw | 92153209 (replaces 7974280) |
| 59 | Screw | 8019911 |
| 59 | Screw | 7974272 |
| 60 | Nut | 92153044 (replaces 7974298) |
| 61 | Tie strap | 11900513 (replaces 7971880) |
| 62 | Protecting moulding | 8564973 |
| 63 | Screw | 7973001 |
| 64 | Pipe bracket | 4318531 |
| 66 | Stay pad | 9630310 |
| 68 | Pipe bracket | 4318382 |
| 70 | Screw | 7978174 |
| 71 | Screw | 8059578 |
| 71 | Hexagon screw | 92150006 (replaces 7978141) |
| 72 | Washer | 9166364 |
| 73 | Clamp | 9627266 |
