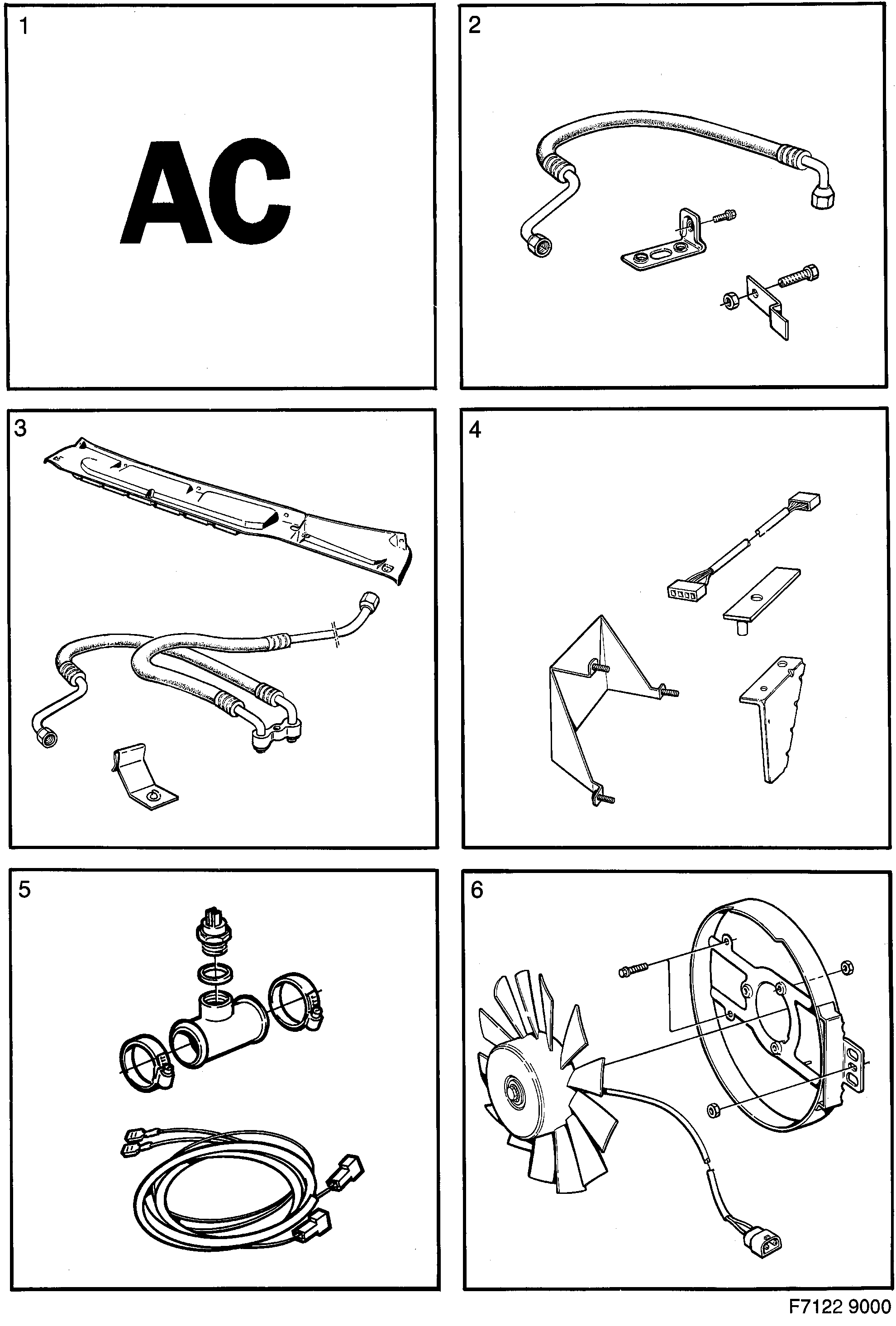

Group 8c Heating and ventilation, section 340
| Pos | Article | Part No. |
|---|---|---|
| 1 | Air conditioning kit | 8605412 |
| Evaporator housing | 4071940 | |
| Reservoir | 4074340 | |
| Clip | 4113999 | |
| Bracket | 4117602 | |
| Pulley | 4118964 | |
| Relay | 4179933 | |
| Hose | 4283164 | |
| Pipe bracket | 4318382 | |
| Pipe bracket | 4318531 | |
| Tube | 4319570 | |
| Hose | 4383238 (replaces 4319588) | |
| Pressure monitor | 4319984 | |
| V-belt | 4356291 | |
| Bracket | 4357067 | |
| Condenser | 4755492 (replaces 4382404) | |
| Hose | 4382636 | |
| Compressor | 4382735 | |
| Label | 4542825 (replaces 4382750) | |
| Screw | 7398266 | |
| Washer | 7398852 | |
| Bracket | 7550346 | |
| Rubber bushing | 7550353 | |
| Lock nut | 7968415 | |
| Tie strap | 7971864 | |
| Tie strap | 11900513 (replaces 7971880) | |
| Screw | 7972441 | |
| Screw | 7973001 | |
| Screw | 92153209 (replaces 7974280) | |
| Nut | 92153044 (replaces 7974298) | |
| Fuse | 7974637 | |
| Fuse | 7974678 | |
| Nut | 11900451 (replaces 7977929) | |
| Screw | 11900355 (replaces 7978117) | |
| Screw | 7978174 | |
| Screw | 92150014 (replaces 7978208) | |
| Nut | 7979602 | |
| Screw | 11900373 (replaces 7982119) | |
| Label | 8506941 | |
| Relay | 8522310 | |
| Relay | 8536401 | |
| Protecting moulding | 8564973 | |
| Bracket | 8605230 | |
| Screw | 9382466 | |
| Pin | 9386343 | |
| Sleeve | 9386350 | |
| Label | 9390964 | |
| Connector housing | 9503426 | |
| Connector housing | 9503442 | |
| Switch | 30526057 (replaces 9512690) | |
| Switch | 9523788 | |
| Clamp | 9627266 | |
| Stay pad | 9630310 | |
| Protection | 9631367 | |
| 3 | Additional kit | 8605438 |
| Cover plate | 4028767 | |
| Cover | 30541960 | |
| Hose | 4382610 | |
| Screw | 92153146 (replaces 7972607) | |
| Hexagon screw | 92150006 (replaces 7978141) | |
| 3 | Additional kit | 8605446 |
| Hose | 4382628 | |
| 4 | Additional kit | 8605297 |
| Pipe bracket | 4062063 (replaces 4074431) | |
| Screw | 92151992 (replaces 7972938) | |
| Washer | 8029951 | |
| Washer | 8073223 | |
| Lock nut | 92150265 (replaces 8073512) | |
| Nut | 11900440 (replaces 8074288) | |
| Pop rivet | 8235178 | |
| Cable harness | 8548315 | |
| Bracket | 8605347 | |
| Bracket | 8605354 | |
| Bracket | 8605362 | |
| Bracket | 8605370 | |
| Relay | 9513219 | |
| 5 | Ac-accesory kit | 7577042 |
| Tube | 7576960 | |
| Hose clamp | 7970114 | |
| Seal | 8330268 | |
| Cable harness | 9523119 | |
| Thermo contact | 4086724 (replaces 9526526) | |
| 6 | Fan | 9627373 |
| Fan shroud | 7577885 | |
| Fan unit | 7598980 | |
| Nut | 92153043 (replaces 7975576) | |
| Nut | 11900428 (replaces 7971658) |
