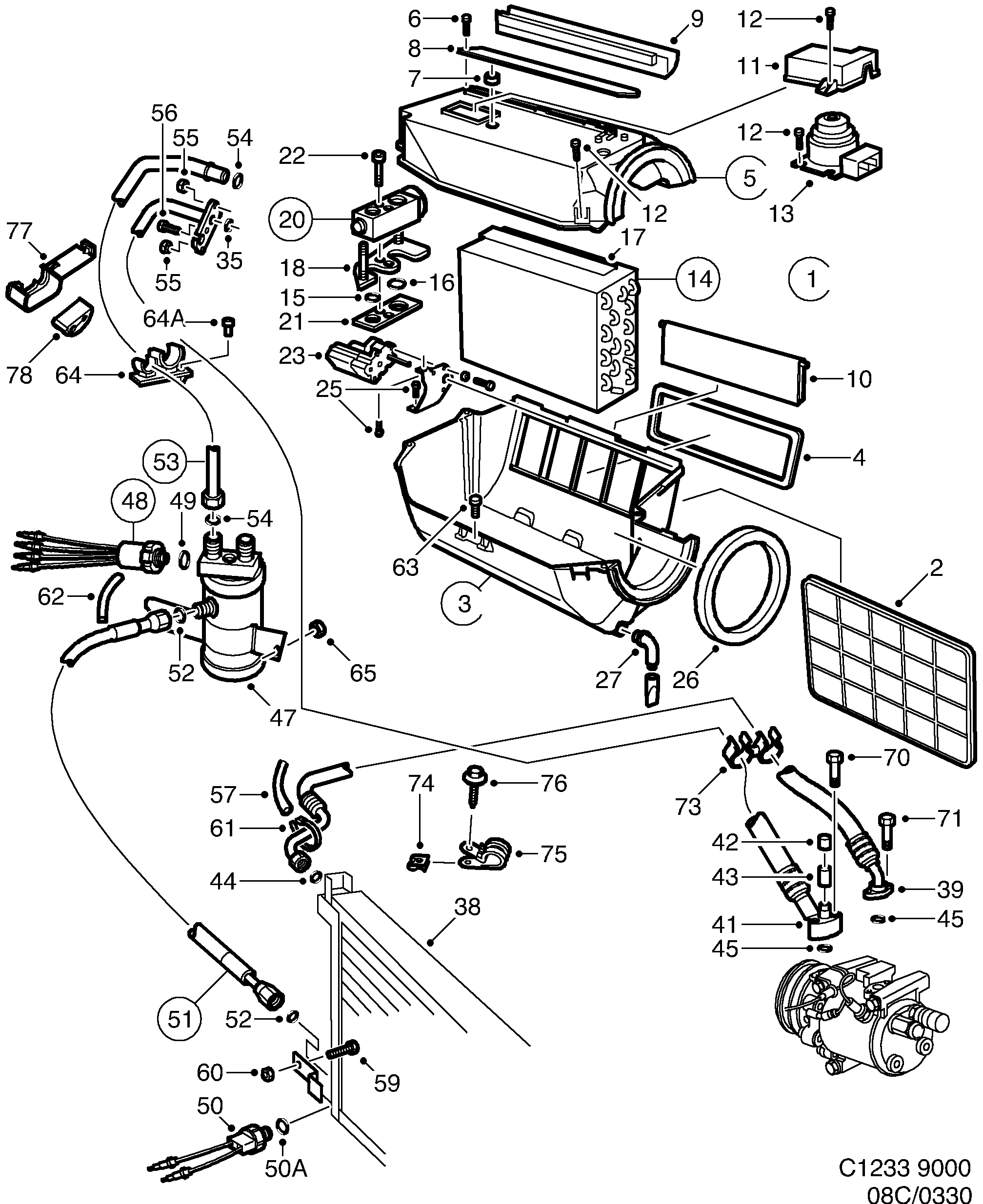

Group 8c Heating and ventilation, section 330
| Pos | Article | Part No. |
|---|---|---|
| 1 | Evaporator housing | 4632543 |
| 2 | Compartment filter | 4072393 |
| 3 | Gauges | 30541966 (replaces 4319125) |
| 4 | Seal | 4072369 |
| 5 | Gauges | 30541967 (replaces 4319133) |
| 6 | Screw | 92150102 (replaces 7972946) |
| 7 | Bushing | 30541974 (replaces 4319646) |
| 8 | Filter cover | 30541951 (replaces 4318218) |
| 9 | Water drain | 4073359 |
| 10 | Shutter | 4073375 |
| 11 | Protecting casing | 30541952 (replaces 4318234) |
| 12 | Screw | 7922214 |
| 13 | Thermo contact | 4542965 (replaces 4542973) |
| 13 | Thermo contact | 4542965 |
| 14 | Evaporator | 4319117 |
| 15 | O-ring | 30541941 (replaces 4318036) |
| 16 | O-ring | 4318044 |
| 17 | Seal | 9622572 |
| 18 | Plate | 4632600 |
| 20 | Valve | 4319158 |
| 21 | Seal | 4073391 |
| 22 | Screw | 8097800 |
| 23 | Electrical motor | 9624867 |
| Attaching plate | 4073383 | |
| 25 | Screw | 7973126 |
| 26 | Seal | 30541953 (replaces 4318242) |
| 27 | Drain valve | 4073532 |
| 35 | O-ring | 30541943 (replaces 4318051) |
| 38 | Condenser | 4755492 (replaces 4382404) |
| 38 | Condenser | 4755492 (replaces 4634911) |
| Service kit | 7495559 | |
| 38 | Condenser | 4755492 |
| 39 | Hose | 4382628 |
| 39 | Hose | 4755658 (replaces 4632196) |
| 39 | Hose | 4755658 |
| 39 | Hose | 4382610 |
| 39 | Hose | 4755666 (replaces 4632188) |
| 39 | Hose | 4755666 |
| 39 | Hose | 30555697 (replaces 4319075) |
| 41 | Hose | 4382818 |
| 41 | Hose | 4383212 |
| 42 | Plug | 30542840 (replaces 4318705) |
| 42 | Plug | 4758108 |
| 43 | Valve | 4758090 |
| 47 | Reservoir | 4383584 |
| 48 | Pressure monitor | 4383170 |
| 49 | O-ring | 4073979 |
| 50 | Pressure monitor | 4383188 |
| 51 | Hose | 4383238 (replaces 4319588) |
| 51 | Hose | 4383238 |
| 52 | O-ring | 30541940 (replaces 4318028) |
| 53 | Tube | 4382800 |
| 55 | Nut | 11900451 (replaces 7977929) |
| 56 | Screw | 11900355 (replaces 7978117) |
| 57 | Protection | 9631367 |
| 57 | Edge protection moulding | 4867032 |
| 59 | Screw | 92153209 (replaces 7982481) |
| 60 | Nut | 92153044 (replaces 7974298) |
| 61 | Tie strap | 11900513 (replaces 7971880) |
| 62 | Protecting moulding | 8564973 |
| 63 | Screw | 7973001 |
| 64 | Pipe bracket | 4382768 |
| 64A | Rivet | 9565417 |
| 70 | Screw | 7978174 |
| 70 | Screw | 92151521 (replaces 7982549) |
| 71 | Hexagon screw | 92150006 (replaces 7978141) |
| 73 | Clamp | 9627266 |
| 74 | Clip nut | 92150164 (replaces 7972573) |
| 75 | Clamp | 7398407 |
| 76 | Screw | 92153219 (replaces 7922354) |
| 77 | Bracket | 9625633 |
| 78 | Seal | 4062063 |
