Saab 9000 1990-1993 AC compressor

Group 8c Heating and ventilation, section 290

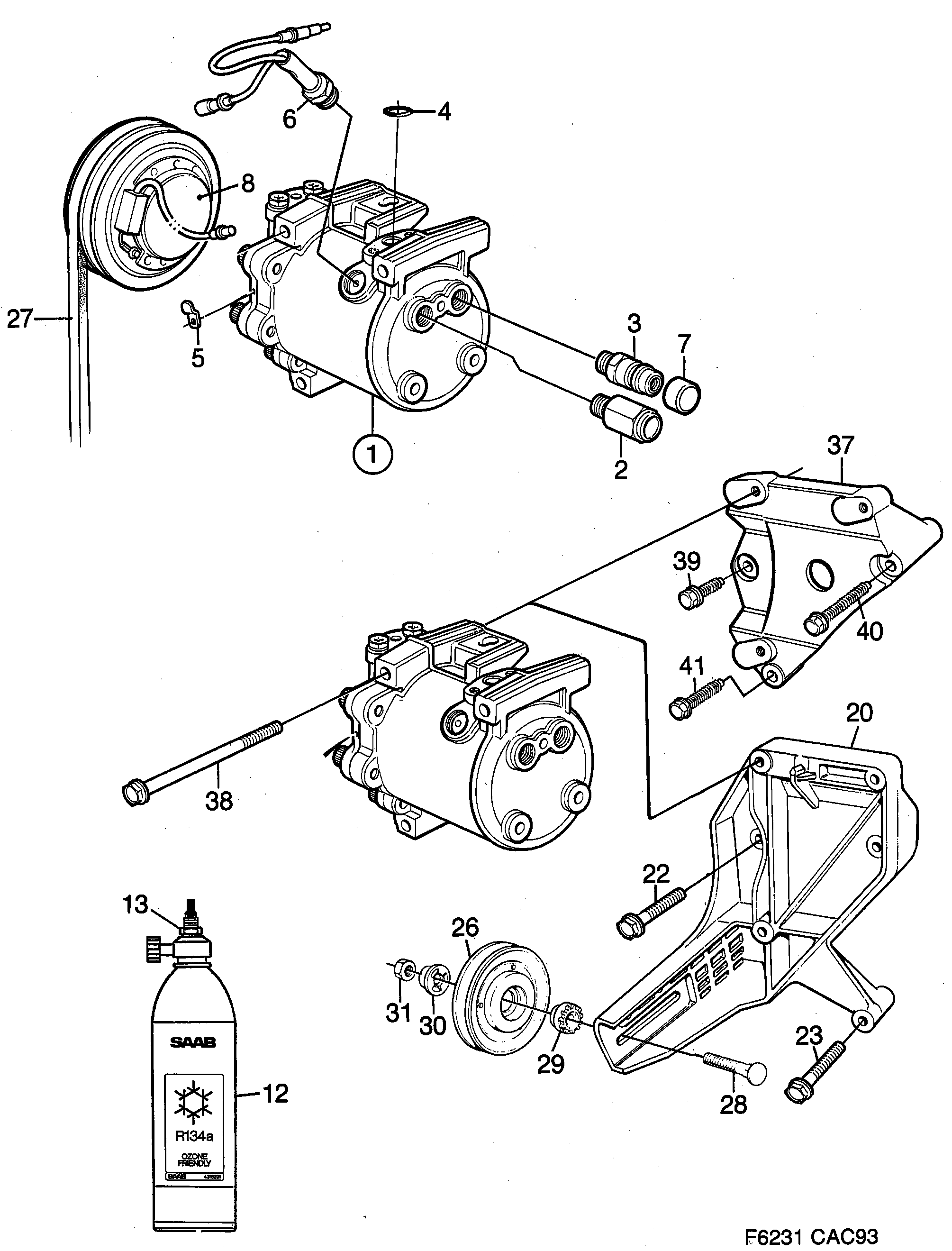

Saab 9000 AC compressor diagram

Pos	Article	Part No.
1	Compressor	4071882
1	Compressor	4632055 (replaces 4071890)
1	Compressor	4382735
1	Compressor	4632055 (replaces 4382743)
2	Relief valve	30541944 (replaces 4318093)
3	Valve	30541945 (replaces 4318135)
4	O-ring	30541946 (replaces 4318143)
5	Cable clamp	30541948 (replaces 4318168)
6	Thermo switch	30541950 (replaces 4318192)
7	Plug	30541947 (replaces 4318150)
8	Clutch	4318184
8	Clutch	4383626 (replaces 4318176)
12	Refrigerant	4071973
20	Bracket	4357067
22	Screw	11900373 (replaces 7982119)
23	Screw	92150014 (replaces 7978208)
26	Pulley	4118964
27	V-belt	4356291
28	Screw	9382466
29	Pin	9386343
30	Sleeve	9386350
31	Lock nut	7968415
37	Bracket	4279410
38	Screw	7398266
41	Screw	11900368 (replaces 7978224)
	Oil	90509933 (replaces 4074787)
