Saab 9000 1985-1989 AC evaporator

Group 8c Heating and ventilation, section 280

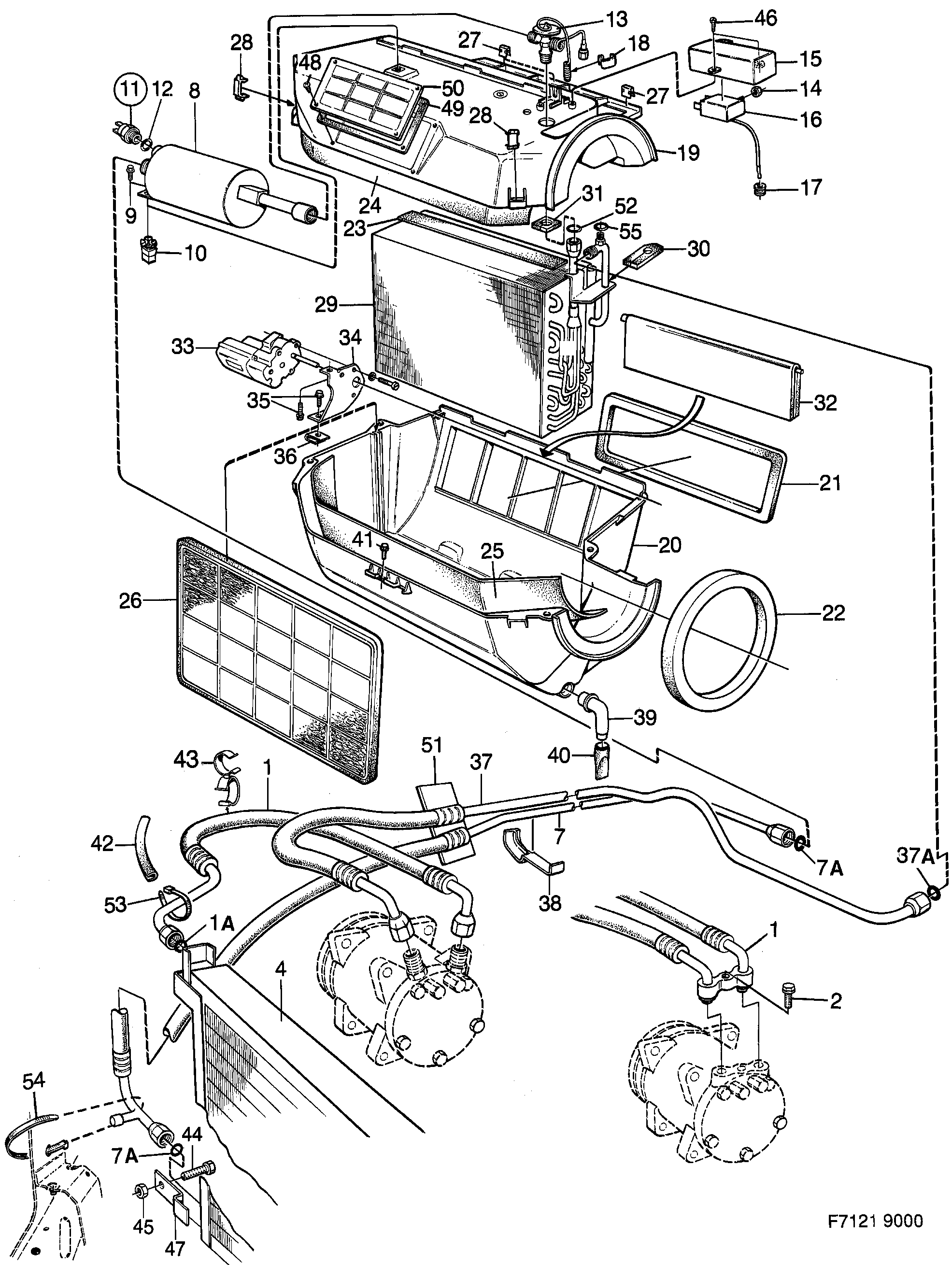

Saab 9000 AC evaporator diagram

Pos	Article	Part No.
1	Hose	9626458
1	Hose	9629304
1	Hose	9629577
1	Hose	9629312
1	Hose	9629585
1A	O-ring	30541941 (replaces 7972094)
2	Screw	92153206 (replaces 7978307)
4	Condenser	9629403
7	Hose	9626243
7	Hose	9629320
7A	O-ring	30541940 (replaces 7972086)
8	Reservoir	9624040
9	Screw	7973126
10	Nut	9625583
11	Switch	9627142
11	Pressure monitor	9627159
12	O-ring	4073979 (replaces 9473851)
13	Valve	9480914
14	Nut	8566598
15	Protecting casing	9625096
16	Thermo contact	9507849
17	Bushing	9460742
18	Clamp	9629197
19	Gauges	9625419
20	Gauges	9629262
21	Seal	9620733
21	Seal	9627431
21	Seal	4072237
22	Seal	9620741
22	Seal	9630286
23	Seal	9622572
24	Insulation	9624032
25	Insulation	9624107
26	Compartment filter	9625674
27	Clamp	9626037
28	Clamp	9625989
29	Evaporator	9624925
30	Seal	9625328
31	Seal	9625336
32	Shutter	9623398
33	Electrical motor	9624867
34	Attaching plate	9625112
36	Clip nut	7967995
37	Hose	9629296
37A	O-ring	4318044 (replaces 7972482)
38	Bracket	9625633
39	Draining hose	9625054
40	Check valve	9623307
41	Screw	7922891 (replaces 7974769)
41	Screw	7922420
42	Protecting moulding	8278558
42	Protection	9631367
43	Clamp	9627266
44	Screw	92153209 (replaces 7974280)
45	Nut	92153044 (replaces 7974298)
46	Screw	7971351
47	Bracket	7576218
48	Screw	7922214
49	Seal	9625823
50	Cover	9628090
51	Stay pad	9630310
53	Tie strap	7971898
54	Tie strap	7971872
55	O-ring	7972078
