Saab 9000 1990-1992 AC compressor, R12

Group 8c Heating and ventilation, section 260

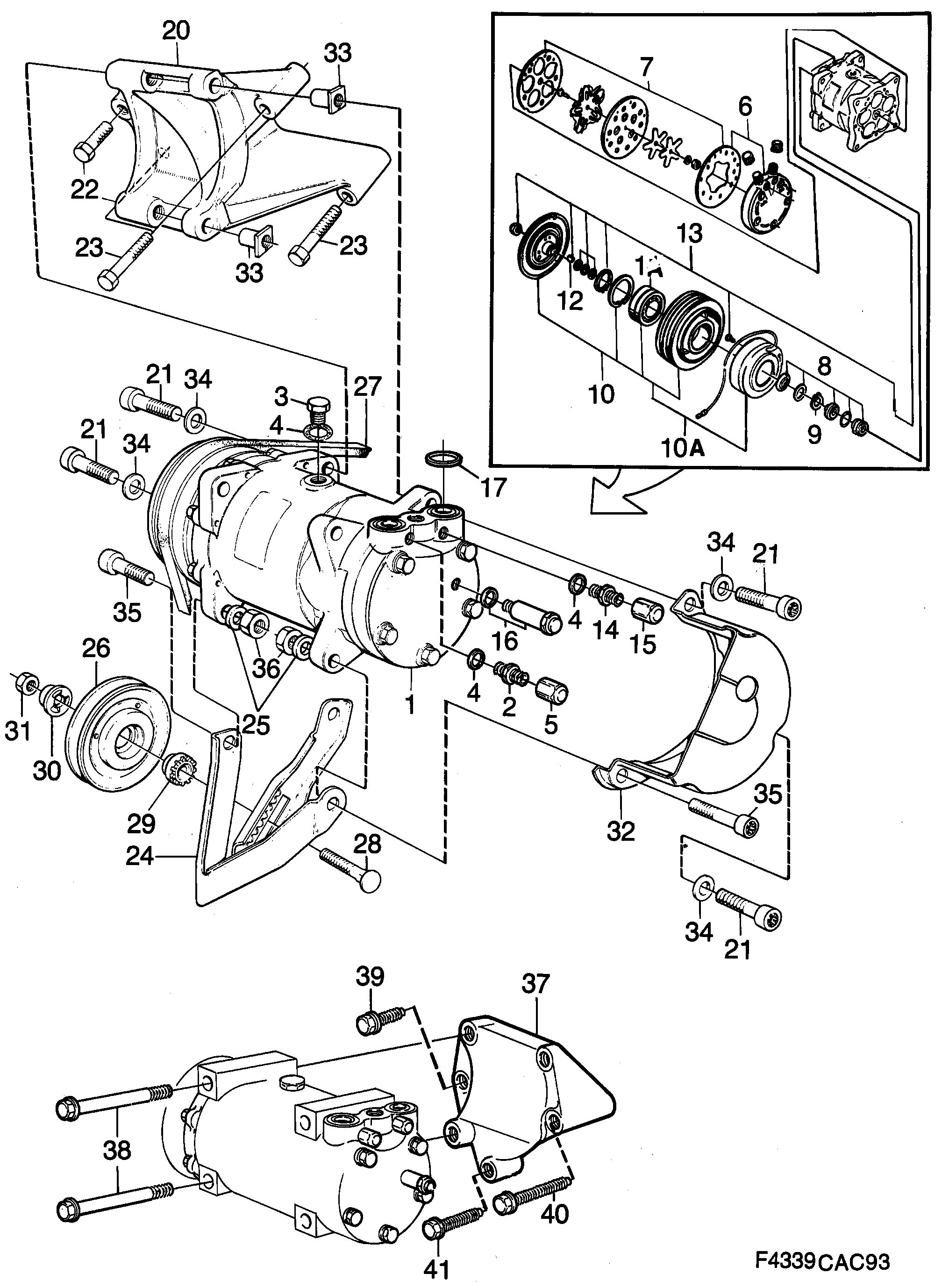

Saab 9000 AC compressor, R12 diagram

Pos	Article	Part No.
1	Compressor	4319810 (replaces 4070801)
1	Compressor	9629593
1	Compressor	4319810
1	Compressor	30542750
1	Compressor	4382370
1	Compressor	4382388
2	Valve	9479452
3	Plug	4072450
4	O-ring	9479486
5	Plug	9626896
6	Cylinder head	4072435
7	Gasket kit	4072443
7	Gasket kit	4383287
8	Sealing kit	9629478
8	Sealing kit	4383261
9	Lock ring	9629486
9	Lock ring	4383279
10	Clutch	9629445
10	Clutch	4072484
10A	Clutch	4382263
10A	Clutch	4382271
10A	Clutch	4383337
10A	Clutch	4383329
10A	Clutch	4383311
11	Ball bearing	9629452
11	Ball bearing	4383303
12	Key	4072468
13	Accessories kit	4072476
13	Accessories kit	4383360
13	Accessories kit	4383352
13	Accessories kit	4383345
14	Valve	4071429
15	Plug	4071577
16	Valve	4070819
16	Valve	4319174
16	Valve	4383295
17	O-ring	4635520 (replaces 4071999)
20	Bracket	7596000
21	Screw	7576580
22	Screw	7970015
23	Screw	90541167 (replaces 7977606)
24	Arm	9382359
25	Spacer	7554215
26	Pulley	4118964 (replaces 9325663)
26	Pulley	4118964
27	V-belt	9382383
28	Screw	9382466
29	Pin	9386343
30	Sleeve	9386350
31	Lock nut	7968415
32	Shield	4070926
33	Sleeve	7553324
34	Washer	7061328
35	Screw	7975030
36	Nut	8151243
37	Bracket	4026142
38	Screw	7398266
39	Screw	92150014 (replaces 7978208)
40	Screw	11900373 (replaces 7982119)
41	Screw	11900368 (replaces 7978224)
