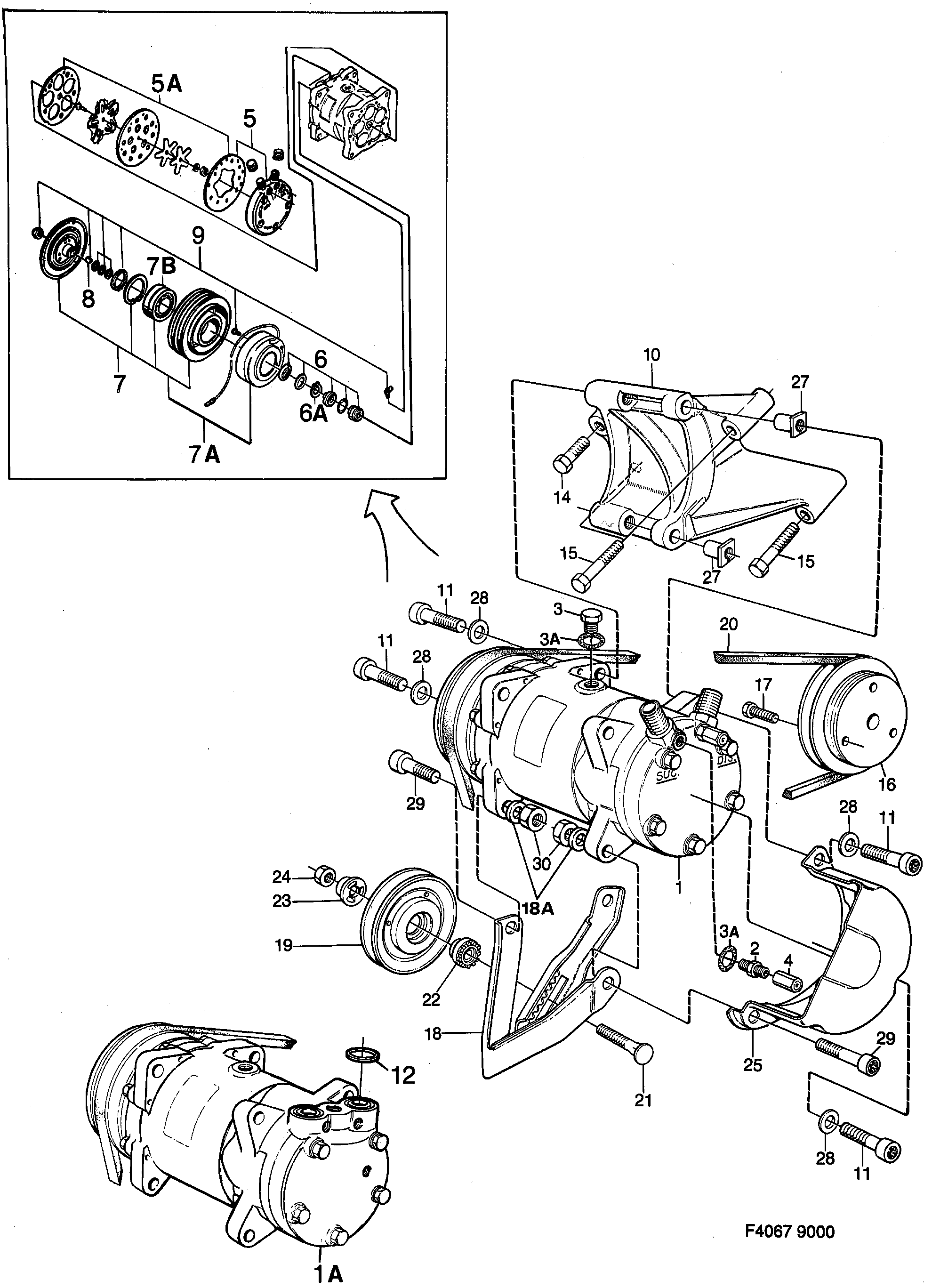

Group 8c Heating and ventilation, section 250
| Pos | Article | Part No. |
|---|---|---|
| 1 | Compressor | 9624115 |
| 1 | Compressor | 9629254 |
| 1 | Compressor | 4319992 |
| 1A | Compressor | 4319810 (replaces 9629601) |
| 2 | Valve | 9479452 |
| 3 | Plug | 9479478 |
| 3 | Plug | 4072450 |
| 3A | O-ring | 9479486 |
| 4 | Plug | 9626896 |
| 5 | Cylinder head | 9479759 |
| 5 | Cylinder head | 9629502 |
| 5 | Cylinder head | 4072435 |
| 5 | Cylinder head | 7495179 |
| 5A | Gasket kit | 9479742 |
| 5A | Gasket kit | 9629494 |
| 5A | Gasket kit | 4383287 |
| 6 | Sealing kit | 9482357 |
| 6 | Sealing kit | 9629478 |
| 6 | Sealing kit | 4383261 |
| 6A | Snap ring | 9482381 |
| 6A | Lock ring | 9629486 |
| 6A | Lock ring | 4383279 |
| 7 | Clutch | 9626888 |
| 7 | Clutch | 9631409 |
| 7 | Clutch | 9629445 |
| 7A | Clutch | 9626912 |
| 7A | Clutch | 9627183 |
| 7A | Clutch | 4382263 |
| 7A | Clutch | 4383337 |
| 7B | Ball bearing | 9480856 |
| 7B | Ball bearing | 9629452 |
| 7B | Ball bearing | 4383303 |
| 8 | Key | 9479726 |
| 8 | Key | 4072468 |
| 9 | Accessories kit | 9626904 |
| 9 | Accessories kit | 9629460 |
| 9 | Accessories kit | 4072476 |
| 9 | Accessories kit | 4383360 |
| 10 | Bracket | 7553316 |
| 10 | Bracket | 7596000 |
| 11 | Screw | 7976970 |
| 11 | Screw | 7576580 |
| 12 | O-ring | 4635520 (replaces 4071999) |
| 14 | Screw | 7970015 |
| 15 | Screw | 7973787 |
| 15 | Screw | 90541167 (replaces 7977606) |
| 16 | Pulley | 9382342 |
| 17 | Screw | 8019945 |
| 18 | Arm | 9382359 |
| 18 | Arm | 7554165 |
| 18A | Spacer | 7554215 |
| 19 | Pulley | 4118964 (replaces 9325663) |
| 20 | V-belt | 9382383 |
| 21 | Screw | 9382466 |
| 22 | Pin | 9386343 |
| 23 | Sleeve | 9386350 |
| 24 | Lock nut | 7968415 |
| 25 | Shield | 4070926 |
| 25 | Shield | 7598170 |
| 25 | Shield | 4028759 |
| 27 | Sleeve | 7553324 |
| 28 | Washer | 7061328 |
| 29 | Screw | 7975030 |
| 30 | Nut | 8151243 |
