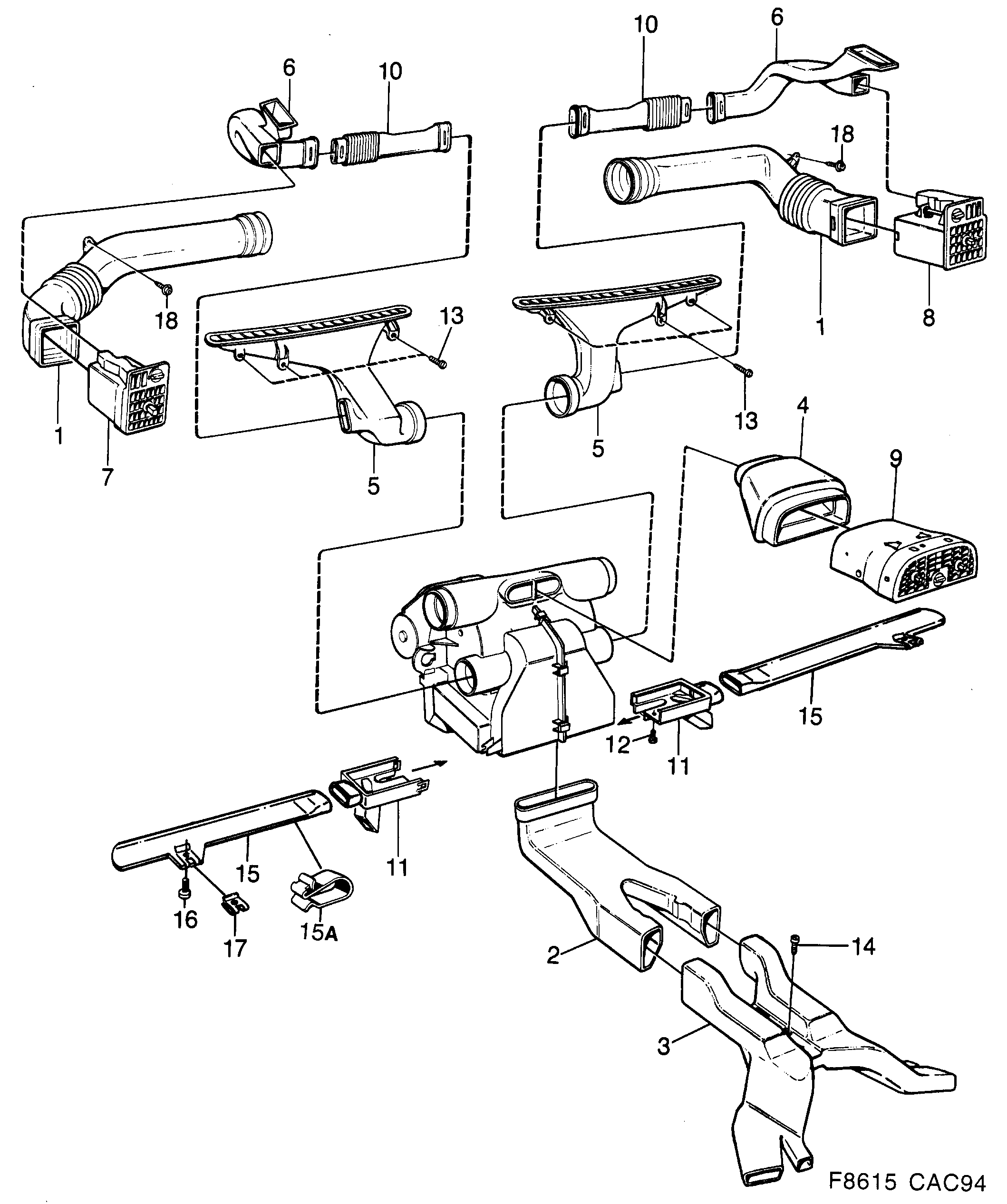

Group 8c Heating and ventilation, section 210
| Pos | Article | Part No. |
|---|---|---|
| 1 | Duct | 4382487 |
| 1 | Duct | 4382479 |
| 2 | Air duct | 9630138 |
| 3 | Air duct | 4071791 |
| 4 | Duct | 9620105 |
| 4 | Duct | 9622325 |
| 5 | Duct | 4073615 |
| 5 | Duct | 4073623 |
| 6 | Duct | 9627506 |
| 6 | Duct | 9627498 |
| 6 | Duct | 9627522 |
| 6 | Duct | 9627514 |
| 7 | Air outlet | 4070215 |
| 8 | Air outlet | 4070223 |
| 9 | Air outlet | 4382545 |
| 10 | Duct | 9628967 |
| 11 | Air outlet | 4774428 (replaces 4071189) |
| 11 | Air outlet | 4071171 |
| 12 | Screw rivet | 9672254 |
| 13 | Screw | 7922420 |
| 14 | Screw | 7973001 |
| 15 | Duct | 9630336 |
| 15 | Duct | 9627365 |
| 15 | Duct | 4070272 |
| 15 | Duct | 9629122 |
| 15 | Duct | 4070306 |
| 15 | Duct | 9629114 |
| 15A | Clamp | 7156409 |
| 16 | Screw | 7922826 |
| 17 | Clip nut | 7968001 |
