Saab 9000 1990-1993 Duct

Group 8c Heating and ventilation, section 200

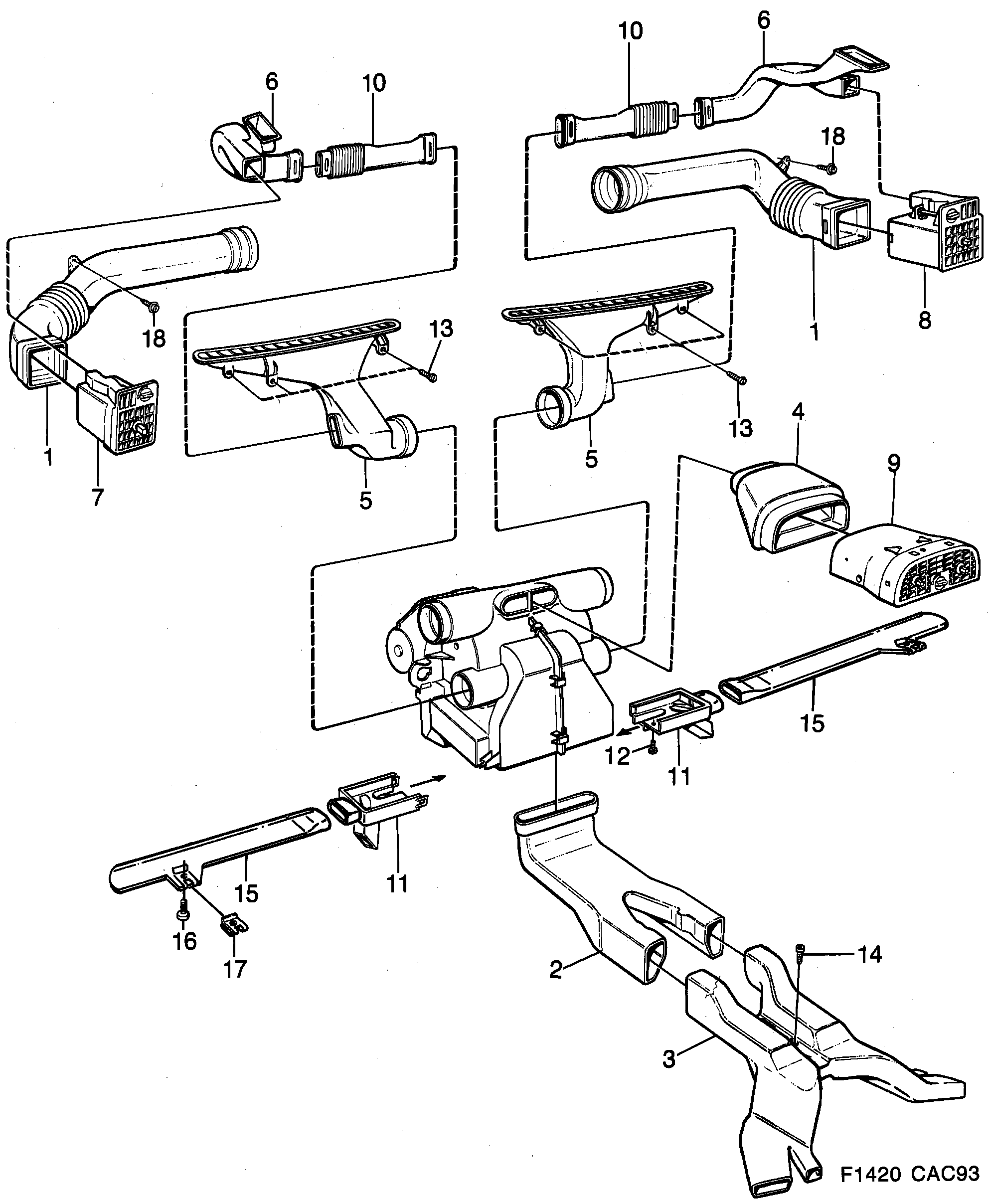

Saab 9000 Duct diagram

Pos	Article	Part No.
1	Duct	4382487 (replaces 9630732)
1	Duct	4382479 (replaces 9630724)
2	Air duct	9630138
3	Air duct	4071791
4	Duct	9620105
4	Duct	9622325
5	Duct	4073615
5	Duct	4073623
6	Duct	9627506
6	Duct	9627498
6	Duct	9627522
6	Duct	9627514
7	Air outlet	4070215
8	Air outlet	4070223
9	Air outlet	4382545 (replaces 9626953)
9	Air outlet	4382545
10	Duct	9628967
11	Air outlet	4774428 (replaces 4071189)
11	Air outlet	4071171
12	Screw rivet	9672254
13	Screw	7922420
14	Screw	9771320
15	Duct	9630336
15	Duct	9627365
15	Duct	4070272
15	Duct	9629122
15	Duct	9629114
16	Screw	7922826
17	Clip nut	7968001
