Saab 9000 1985-1989 Duct

Group 8c Heating and ventilation, section 190

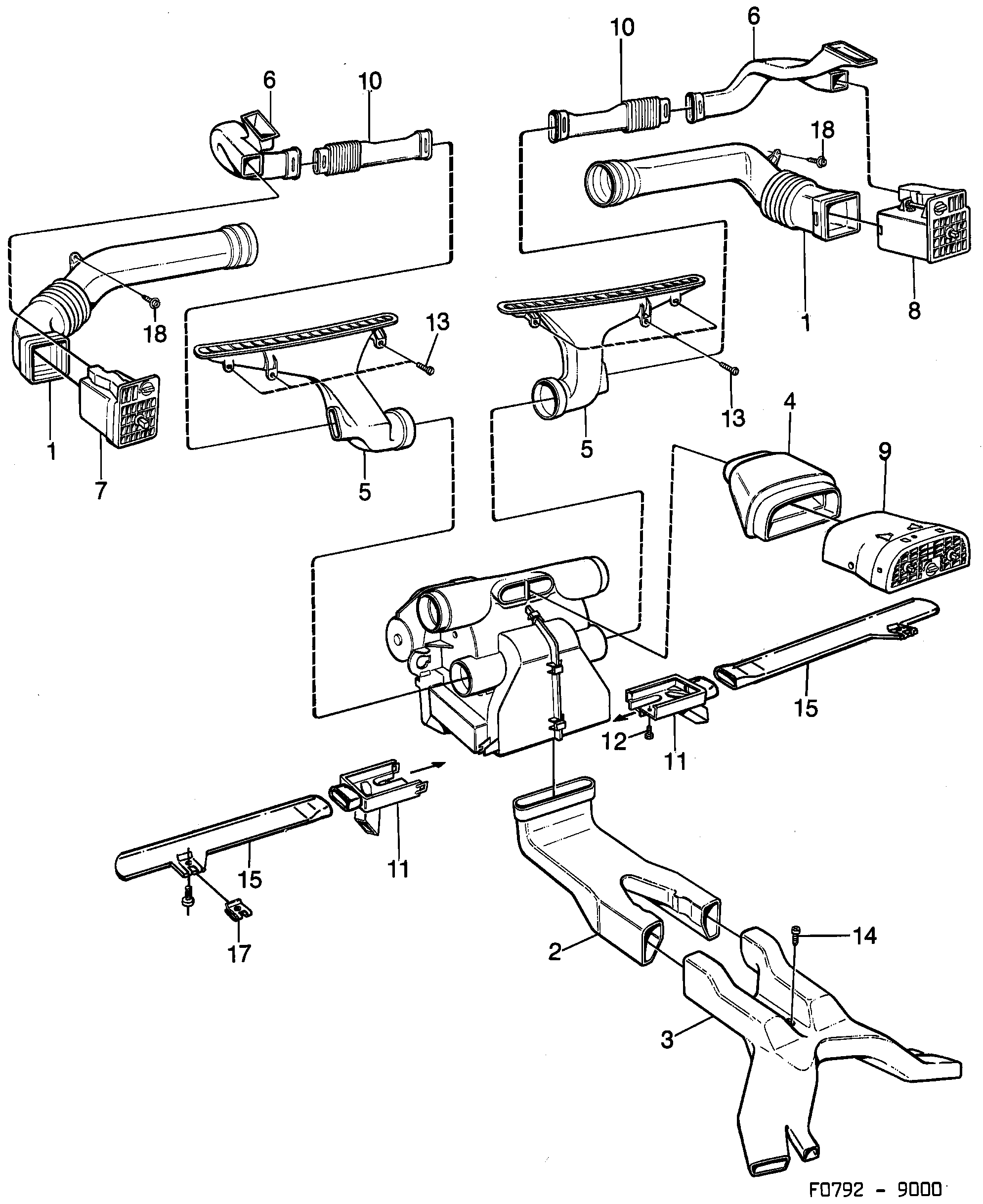

Saab 9000 Duct diagram

Pos	Article	Part No.
1	Duct	4382487 (replaces 9623323)
1	Duct	4382479 (replaces 9623331)
1	Duct	4382487 (replaces 9625278)
1	Duct	4382479 (replaces 9625260)
1	Duct	4382487 (replaces 9630732)
1	Duct	4382479 (replaces 9630724)
2	Air duct	9625088
2	Air duct	9627787
2	Air duct	9630138 (replaces 9628181)
2	Air duct	9630138
3	Air duct	9627316
3	Air duct	9628173
3	Air duct	9628595
4	Duct	9620105
4	Duct	9622325
5	Duct	9624966
5	Duct	9627456
5	Duct	9628942
5	Duct	4070140
5	Duct	9624974
5	Duct	9627464
5	Duct	9628959
5	Duct	4070157
6	Duct	9627506
6	Duct	9627498
6	Duct	9627522
6	Duct	9627514
7	Air outlet	4070215 (replaces 9625062)
7	Air outlet	4070215
8	Air outlet	9625070
8	Air outlet	4070223
9	Air outlet	4382545 (replaces 9620170)
9	Air outlet	4382545 (replaces 9626953)
10	Duct	9628967 (replaces 9622119)
10	Duct	9628967
11	Air outlet	9622986
11	Air outlet	4774428 (replaces 9629056)
11	Air outlet	4774428 (replaces 4071189)
11	Air outlet	9622978
11	Air outlet	9627803
11	Air outlet	4071171 (replaces 9629098)
11	Air outlet	4071171 (replaces 9627357)
11	Air outlet	4071171
12	Screw	92153219 (replaces 7922354)
12	Screw rivet	9672254
13	Screw	7922347
13	Screw	7922420
14	Screw	9771320
15	Duct	9630336
15	Duct	9627365
15	Duct	9629122
15	Duct	9629114
16	Screw	7922826
17	Clip nut	7968001
18	Screw	92151992 (replaces 7972938)
