Saab 9000 1990-1993 Heat exchanger, servo Fan unit, ACC

Group 8c Heating and ventilation, section 170

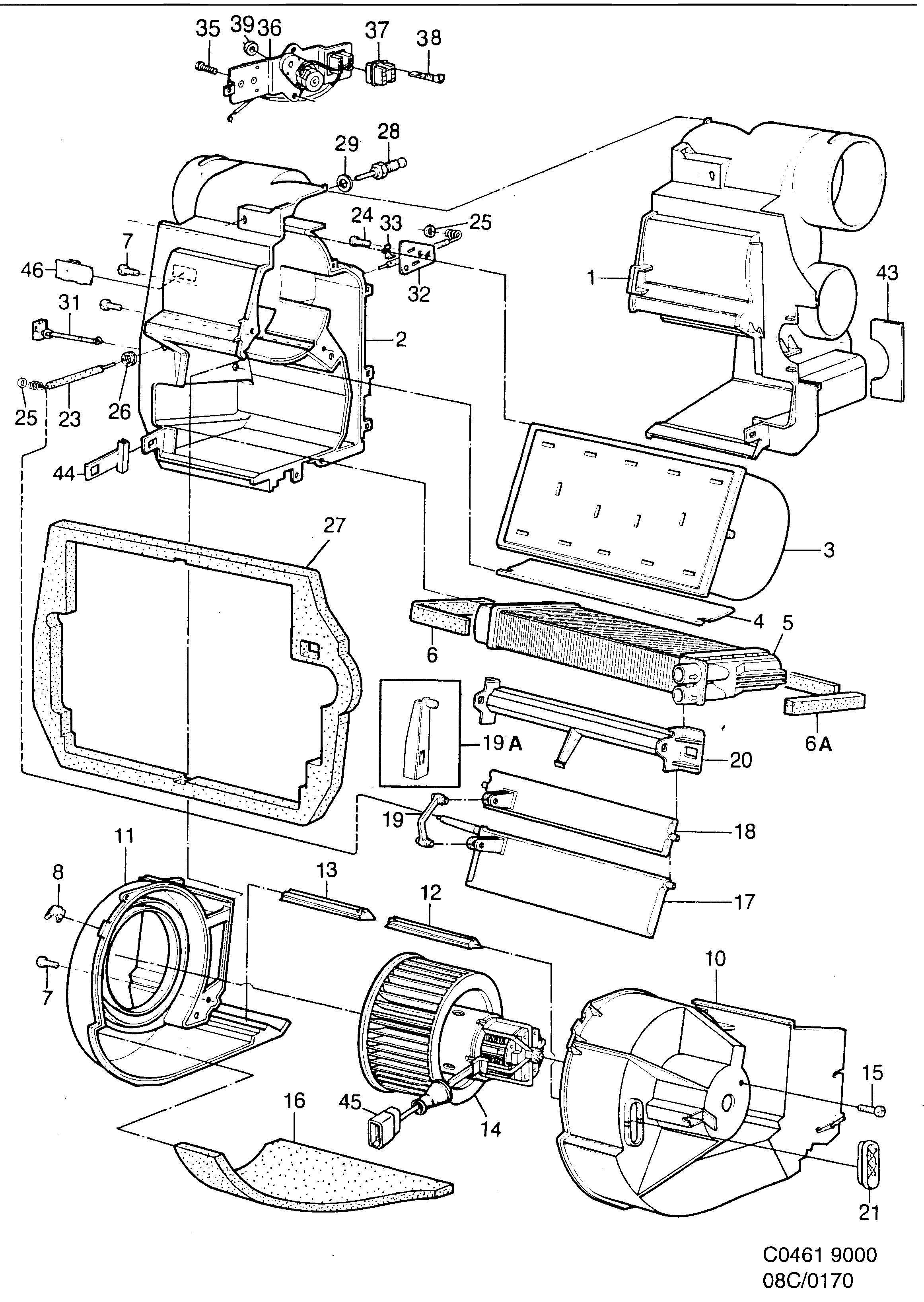

Saab 9000 Heat exchanger, servo Fan unit, ACC diagram

Pos	Article	Part No.
1	Heater housing	9622663
1	Heater housing	4383063
2	Heater housing	9630799
2	Heater housing	4383071
3	Air deflector housing	9624578
4	Stiffening bar	9625468
5	Heat exchanger	4613881 (replaces 9620238)
5	Heat exchanger	5046362 (replaces 4070728)
6	Seal	9626300
6A	Seal	9626318
7	Screw	7971443
8	Clamp	9625989
10	Fan housing	9628272
11	Fan housing	9622614
12	Air deflector	9625138
13	Air deflector	9625120
14	Fan unit	9628587
15	Screw	92151805 (replaces 8059230)
16	Insulation	9625955
17	Shutter	9624321
18	Shutter	9624305
19	Link	9624347
19A	Kit	7496433
	Rubber bushing	4382826
	Shutter shaft	4383857
20	Connector	9622655
21	Cover	9622812
23	Control cable	9623935
24	Screw	7971393
25	Washer	7975485
26	Protecting bushing	9625831
27	Seal	9631490
28	Screw	7399348 (replaces 7974090)
29	Washer	8029969
32	Attaching plate	9623315
33	Clamp	9622432
36	Motor unit	9630567
36	Motor unit	30542972 (replaces 4319190)
37	Connector housing	9122557
37	Connector housing	4117461
38	Cable terminal	9552100
38	Cable terminal	12789932 (replaces 4115085)
43	Bracket	9622697
44	Attaching plate	9627415
44	Attaching plate	9627407
46	Clamp	9629411
