Saab 9000 1985-1989 Heat exchanger, servo Fan unit, ACC

Group 8c Heating and ventilation, section 160

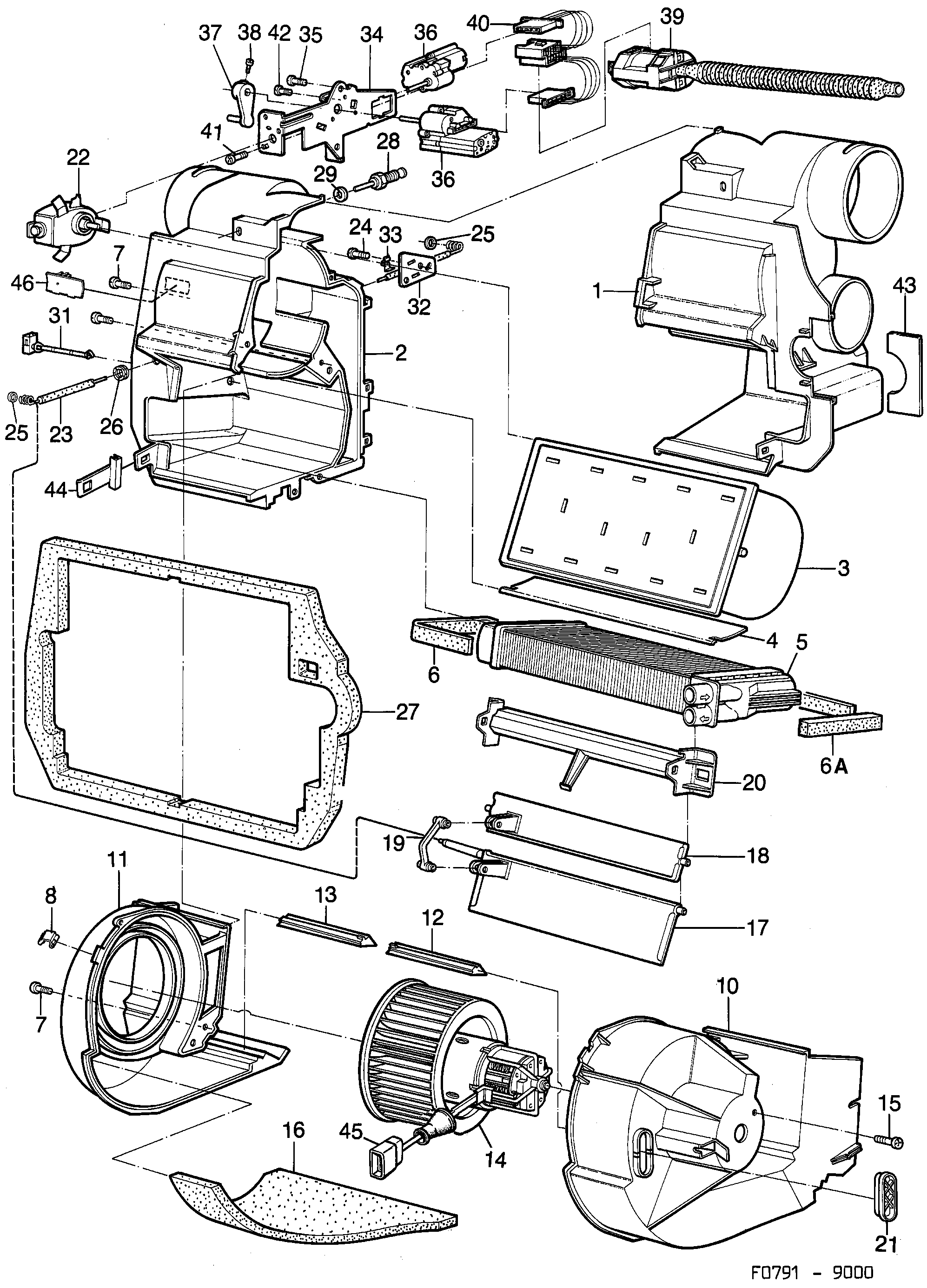

Saab 9000 Heat exchanger, servo Fan unit, ACC diagram

Pos	Article	Part No.
1	Heater housing	9622663
2	Heater housing	9622671
2	Heater housing	9630799
3	Air deflector housing	9624578
4	Stiffening bar	9625468
5	Heat exchanger	4613881 (replaces 9620238)
6	Seal	9626300
6A	Seal	9626318
7	Screw	7971443
8	Clamp	9625989
10	Fan housing	9628272 (replaces 9622606)
10	Fan housing	9628272
11	Fan housing	9622614
12	Air deflector	9625138
13	Air deflector	9625120
14	Fan unit	9501685 (replaces 9622622)
14	Fan unit	9628587
15	Screw	92151805 (replaces 8059230)
16	Insulation	9625955
17	Shutter	9624321
18	Shutter	9624305
19	Link	9624347
20	Connector	9622655
21	Cover	9622812
22	Angle gear	9623869
23	Control cable	9623935
24	Screw	7971393
25	Washer	7975485
26	Protecting bushing	9625831
27	Seal	9631490 (replaces 9626987)
27	Seal	9631490 (replaces 9629379)
27	Seal	9631490
28	Screw	7399348 (replaces 7974090)
29	Washer	92153032 (replaces 7916489)
29	Washer	8029969
32	Attaching plate	9623315
33	Clamp	9622432
34	Attaching plate	9625534
36	Electrical motor	9625435
37	Lever	9623968
38	Screw	92150234 (replaces 7975584)
39	Fan	9626052
40	Cable harness	9624123
41	Screw	8059107
42	Screw	7971336
43	Bracket	9622697
44	Attaching plate	9627415
44	Attaching plate	9627407
46	Clamp	9629411
