Saab 9000 1994-1998 Heat exchanger Fan unit, not ACC

Group 8c Heating and ventilation, section 150

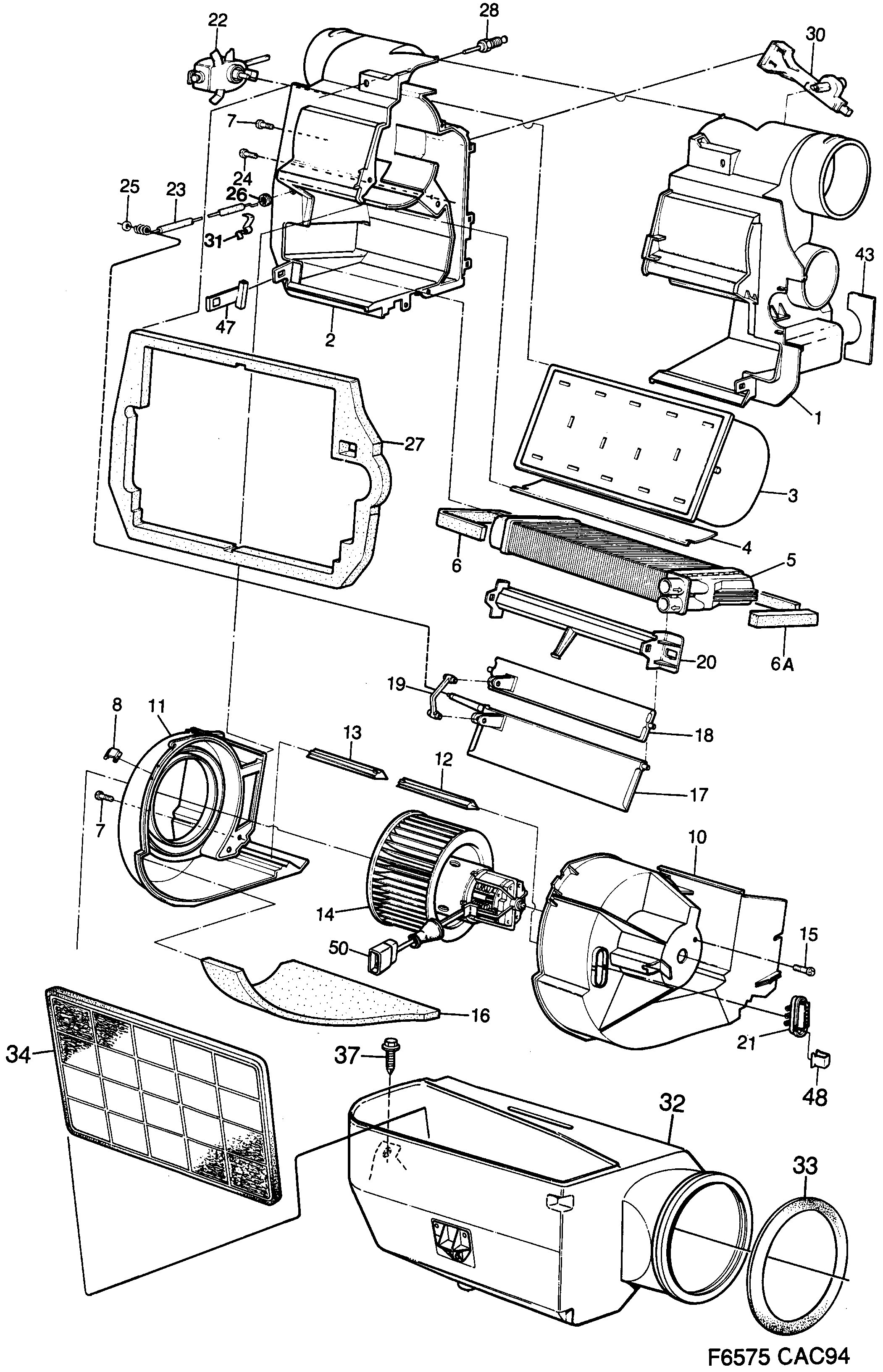

Saab 9000 Heat exchanger Fan unit, not ACC diagram

Pos	Article	Part No.
1	Heater housing	4383063
2	Heater housing	4383071
3	Air deflector housing	9624578
4	Stiffening bar	9625468
5	Heat exchanger	5046362 (replaces 4070728)
5	Heat exchanger	5046362
6	Seal	9626300
6A	Seal	9626318
7	Screw	7971443
8	Clamp	9625989
10	Fan housing	9628272
11	Fan housing	9622614
12	Air deflector	9625138
13	Air deflector	9625120
14	Fan unit	9628587
15	Screw	92151805 (replaces 8059230)
16	Insulation	9625955
17	Shutter	9624321
18	Shutter	9624305
19	Link	9624347
20	Connector	9622655
21	Resistor	4382420
21	Resistor	4634564
22	Angle gear	9623570
23	Control cable	9623455
24	Screw	7971393
25	Washer	7975485
26	Protecting bushing	9625831
27	Seal	9631490
28	Rivet	7399348
30	Gear rod	9625146
31	Clamp	9622432
32	Filter housing	4072203
33	Seal	9630039
34	Compartment filter	4072211
37	Screw	92151885 (replaces 7978638)
43	Bracket	9622697
47	Attaching plate	9627415
47	Attaching plate	9627407
48	Clip	7399207
