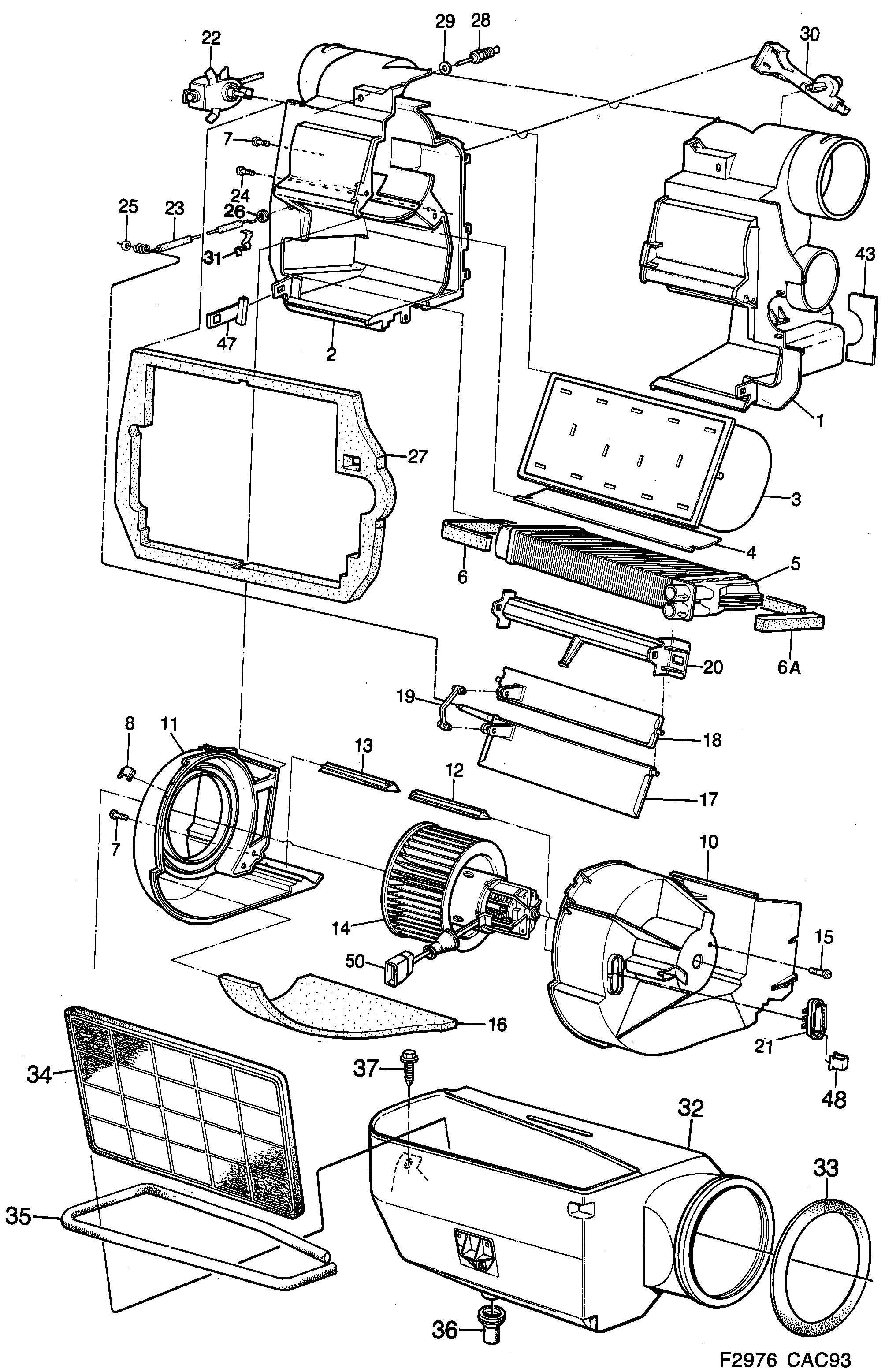

Group 8c Heating and ventilation, section 140
| Pos | Article | Part No. |
|---|---|---|
| 1 | Heater housing | 9622663 |
| 1 | Heater housing | 4383063 |
| 2 | Heater housing | 9630799 |
| 2 | Heater housing | 4383071 |
| 3 | Air deflector housing | 9624578 |
| 4 | Stiffening bar | 9625468 |
| 5 | Heat exchanger | 4613881 (replaces 9620238) |
| 5 | Heat exchanger | 5046362 (replaces 4070728) |
| 6 | Seal | 9626300 |
| 6A | Seal | 9626318 |
| 7 | Screw | 7971443 |
| 8 | Clamp | 9625989 |
| 10 | Fan housing | 9628272 |
| 11 | Fan housing | 9622614 |
| 12 | Air deflector | 9625138 |
| 13 | Air deflector | 9625120 |
| 14 | Fan unit | 9628587 |
| 15 | Screw | 92151805 (replaces 8059230) |
| 16 | Insulation | 9625955 |
| 17 | Shutter | 9624321 |
| 18 | Shutter | 9624305 |
| 19 | Link | 9624347 |
| 20 | Connector | 9622655 |
| 21 | Resistor | 9629429 |
| 21 | Resistor | 4382420 |
| 22 | Angle gear | 9623570 |
| 23 | Control cable | 9623455 |
| 24 | Screw | 7971393 |
| 25 | Washer | 7975485 |
| 26 | Protecting bushing | 9625831 |
| 27 | Seal | 9631490 |
| 28 | Screw | 7399348 (replaces 7974090) |
| 28 | Rivet | 7399348 |
| 29 | Washer | 8029969 |
| 30 | Gear rod | 9625146 |
| 31 | Clamp | 9622432 |
| 32 | Filter housing | 9630070 |
| 33 | Seal | 9630039 |
| 34 | Air filter | 4072211 (replaces 9630096) |
| 35 | Seal | 4073110 |
| 36 | Check valve | 9630112 |
| 32 | Filter housing | 4072203 |
| 34 | Compartment filter | 4072211 |
| 37 | Screw | 92151885 (replaces 7978638) |
| 43 | Bracket | 9622697 |
| 47 | Attaching plate | 9627415 |
| 47 | Attaching plate | 9627407 |
| 48 | Clip | 7399207 |
