Saab 9000 1985-1989 Heat exchanger Fan unit, not ACC

Group 8c Heating and ventilation, section 130

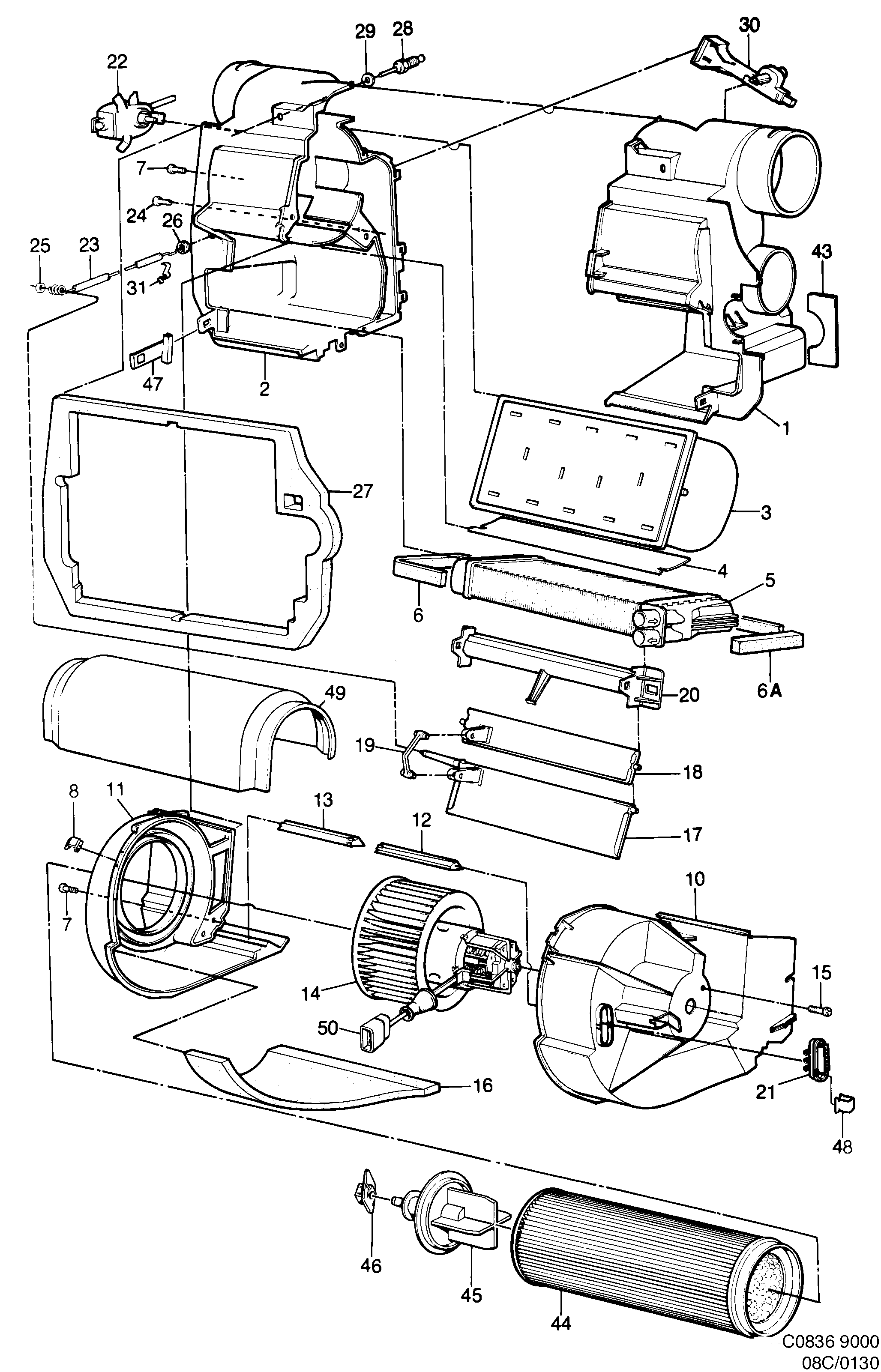

Saab 9000 Heat exchanger Fan unit, not ACC diagram

Pos	Article	Part No.
1	Heater housing	9622663
2	Heater housing	9622671
2	Heater housing	9630799
3	Air deflector housing	9624578
4	Stiffening bar	9625468
5	Heat exchanger	4613881 (replaces 9620238)
6	Seal	9626300
6A	Seal	9626318
7	Screw	7971443
8	Clamp	9625989
10	Fan housing	9628272 (replaces 9622606)
10	Fan housing	9628272
11	Fan housing	9622614
12	Air deflector	9625138
13	Air deflector	9625120
14	Fan unit	9501685 (replaces 9622622)
14	Fan unit	9628587
15	Screw	92151805 (replaces 8059230)
16	Insulation	9625955
17	Shutter	9624321
18	Shutter	9624305
19	Link	9624347
20	Connector	9622655
21	Resistor	9629429
22	Angle gear	9623570
23	Control cable	9623455
24	Screw	7971393
25	Washer	7975485
26	Protecting bushing	9625831
27	Seal	9631490 (replaces 9626987)
27	Seal	9631490 (replaces 9629379)
27	Seal	9631490
28	Screw	7399348 (replaces 7974090)
29	Washer	92153032 (replaces 7916489)
29	Washer	8029969
30	Gear rod	9625146
31	Clamp	9622432
43	Bracket	9622697
44	Compartment filter	9622457
45	Bracket	9625724
46	Bracket	9625765
47	Attaching plate	9627415
47	Attaching plate	9627407
48	Clip	7399207
49	Cover	9628603
