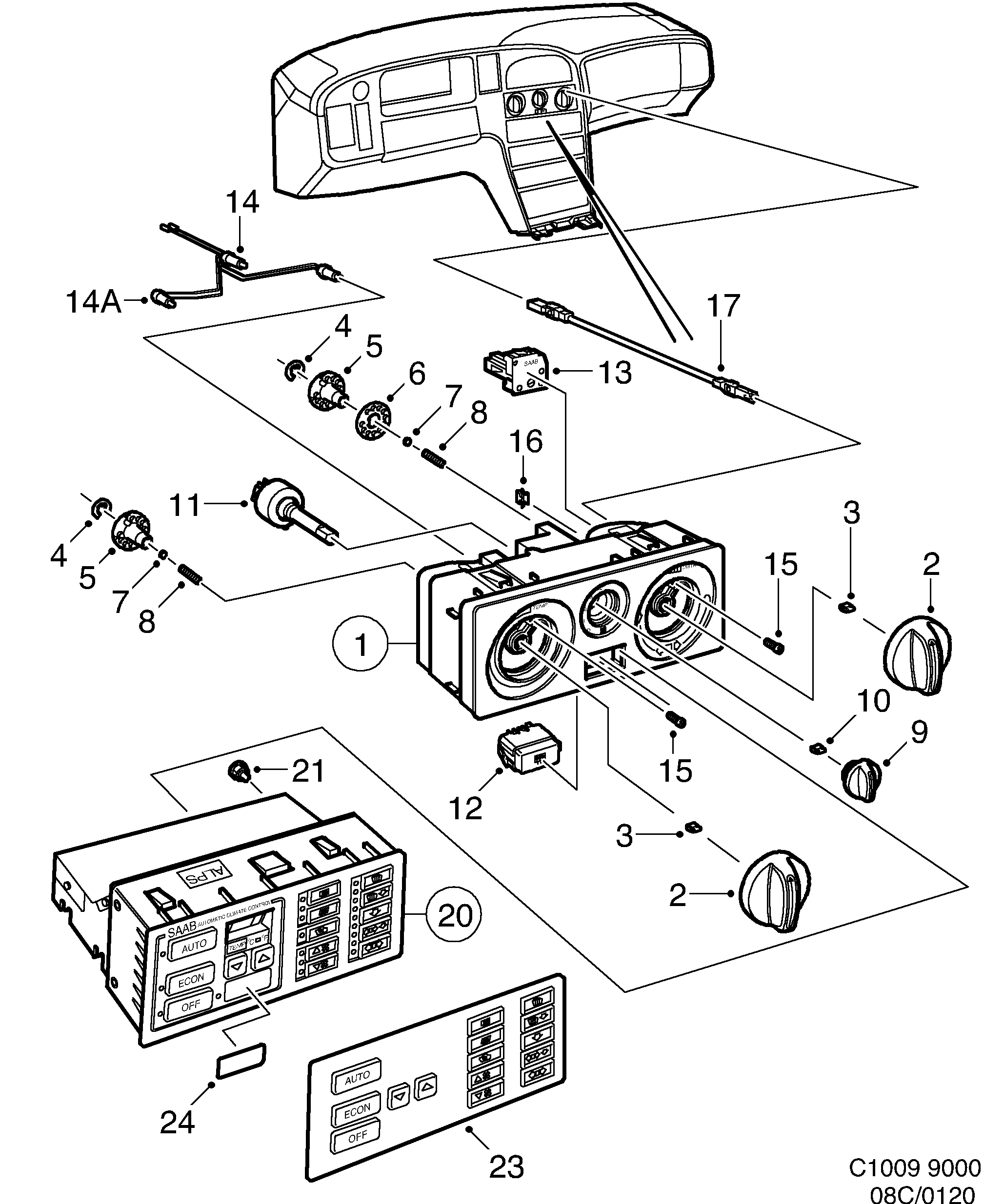

Group 8c Heating and ventilation, section 120
| Pos | Article | Part No. |
|---|---|---|
| 1 | Panel | 9631235 |
| 2 | Steering wheel | 9623737 |
| 3 | Bracket | 9621897 |
| 4 | Retaining ring | 7936008 |
| 5 | Disc | 9625245 |
| 6 | Spring latch bolt | 9625252 |
| 7 | Ball | 9420043 |
| 8 | Spring | 9420035 |
| 9 | Steering wheel | 9623745 |
| 11 | Switch | 9500927 |
| 12 | Switch | 9505744 |
| 13 | Switch | 9505421 |
| 14 | Cable harness | 9514787 |
| 14A | Bulb | 93190474 (replaces 8500613) |
| 15 | Screw | 7971393 |
| 16 | Clamp | 9625351 |
| 17 | Control arm | 9622390 |
| 17 | Control arm | 9626383 |
| 20 | Control panel | 4382933 |
| 20 | Control panel | 4383790 |
| 21 | Bulb | 9625575 |
| 23 | Symbol strip | 4074316 |
| 24 | Cover | 9631599 |
