Saab 9000 1985-1989 Control panel

Group 8c Heating and ventilation, section 100

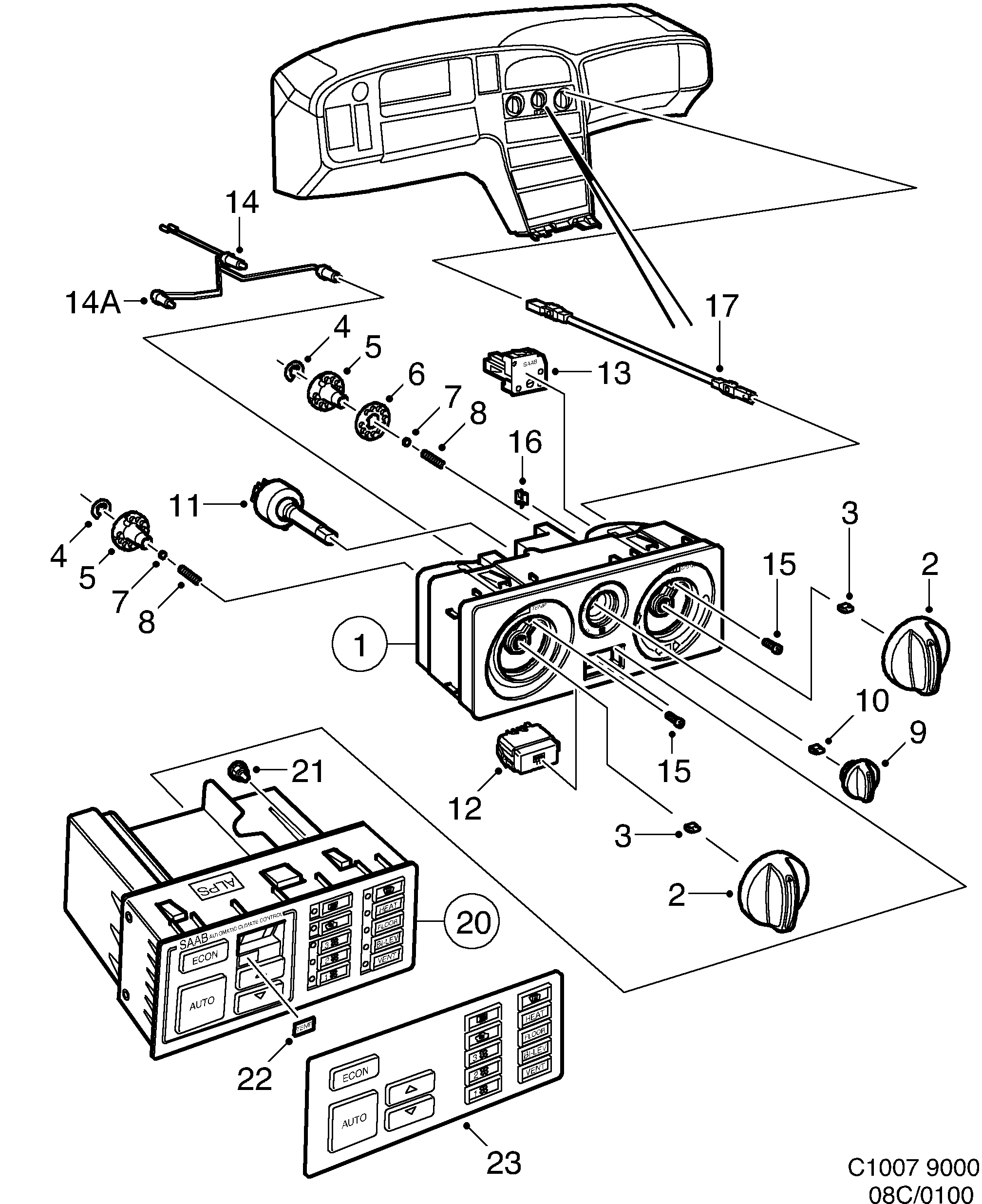

Saab 9000 Control panel diagram

Pos	Article	Part No.
1	Panel	9631235 (replaces 9625229)
1	Panel	9631235
2	Steering wheel	9623737
3	Bracket	9621897
4	Retaining ring	7936008
5	Disc	9625245
6	Spring latch bolt	9625252
7	Ball	9420043
8	Spring	9420035
9	Steering wheel	9623745
11	Switch	9500927
12	Switch	9505744
13	Switch	9505421
14	Cable harness	9514787 (replaces 9506601)
14	Cable harness	9514787
14A	Bulb	93190474 (replaces 8500613)
15	Screw	7971393
16	Clamp	9625351
17	Control arm	9622390
17	Control arm	9626383
20	Control panel	9628397
21	Bulb	9625575
22	Sign	9628389
23	Symbol strip	4071106
