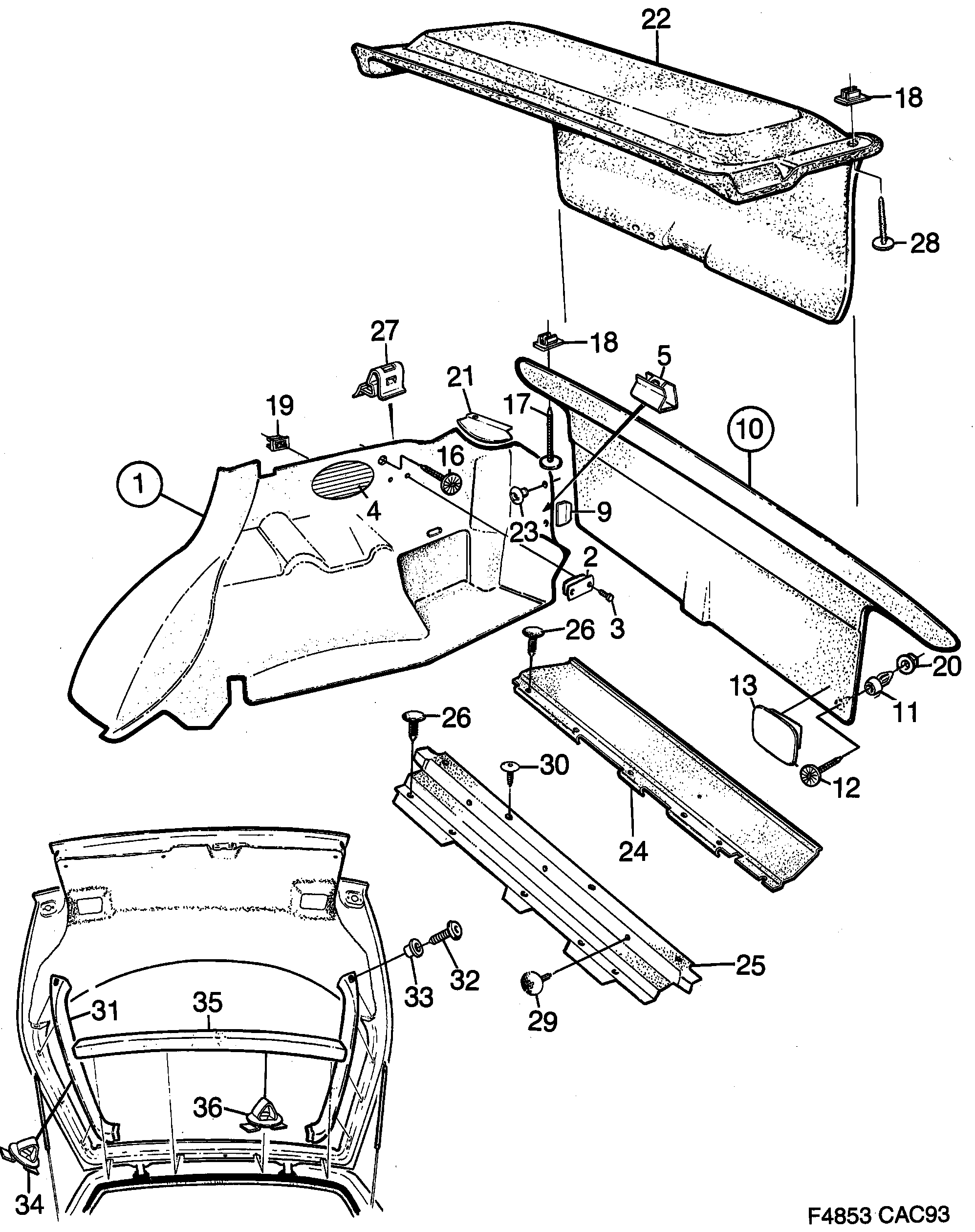

Group 8b Car body, internal, section 830
| Pos | Article | Part No. |
|---|---|---|
| 1 | Upholstery | 4051660 |
| 1 | Upholstery | 4051652 |
| 1 | Upholstery | 4051678 |
| 1 | Upholstery | 4034013 |
| 1 | Upholstery | 4034039 |
| 1 | Upholstery | 30561331 (replaces 9084575) |
| 1 | Upholstery | 30561332 (replaces 9084567) |
| 1 | Upholstery | 9545468 |
| 1 | Upholstery | 9545476 |
| 1 | Upholstery | 9545484 |
| 1 | Upholstery | 4141776 |
| 1 | Upholstery | 30561329 (replaces 4135976) |
| 1 | Upholstery | 4135984 |
| 5 | Clamp | 4140315 |
| 9 | Plate | 4269874 |
| 10 | Upholstery | 9754839 |
| 10 | Upholstery | 9658998 |
| 10 | Upholstery | 9083395 |
| 11 | Clamp | 9786997 |
| 12 | Quick fastener | 9491689 |
| 13 | Cover | 9084633 |
| 16 | Quick fastener | 9464926 |
| 16 | Clip | 92152407 (replaces 9668153) |
| 17 | Quick fastener | 9423658 |
| 18 | Quick nut | 8452898 |
| 19 | Sleeve | 9473877 |
| 21 | Bracket | 9795808 |
| 21 | Bracket | 4269791 |
| 22 | Upholstery | 4054979 |
| 22 | Upholstery | 4268355 |
| 23 | Push nut | 4087029 |
| 24 | Upholstery | 9658899 |
| 24 | Upholstery | 4141644 |
| 25 | Sill protection | 9088659 |
| 25 | Sill protection | 9087057 |
| 27 | Clamp | 9690264 |
| 29 | Cover | 9591637 |
| 30 | Screw | 9771320 |
| 31 | Protection | 9087412 |
| 31 | Protection | 9087404 |
| 33 | Sleeve | 4262242 |
| 34 | Clip | 9087438 |
| 35 | Protection | 9087420 |
