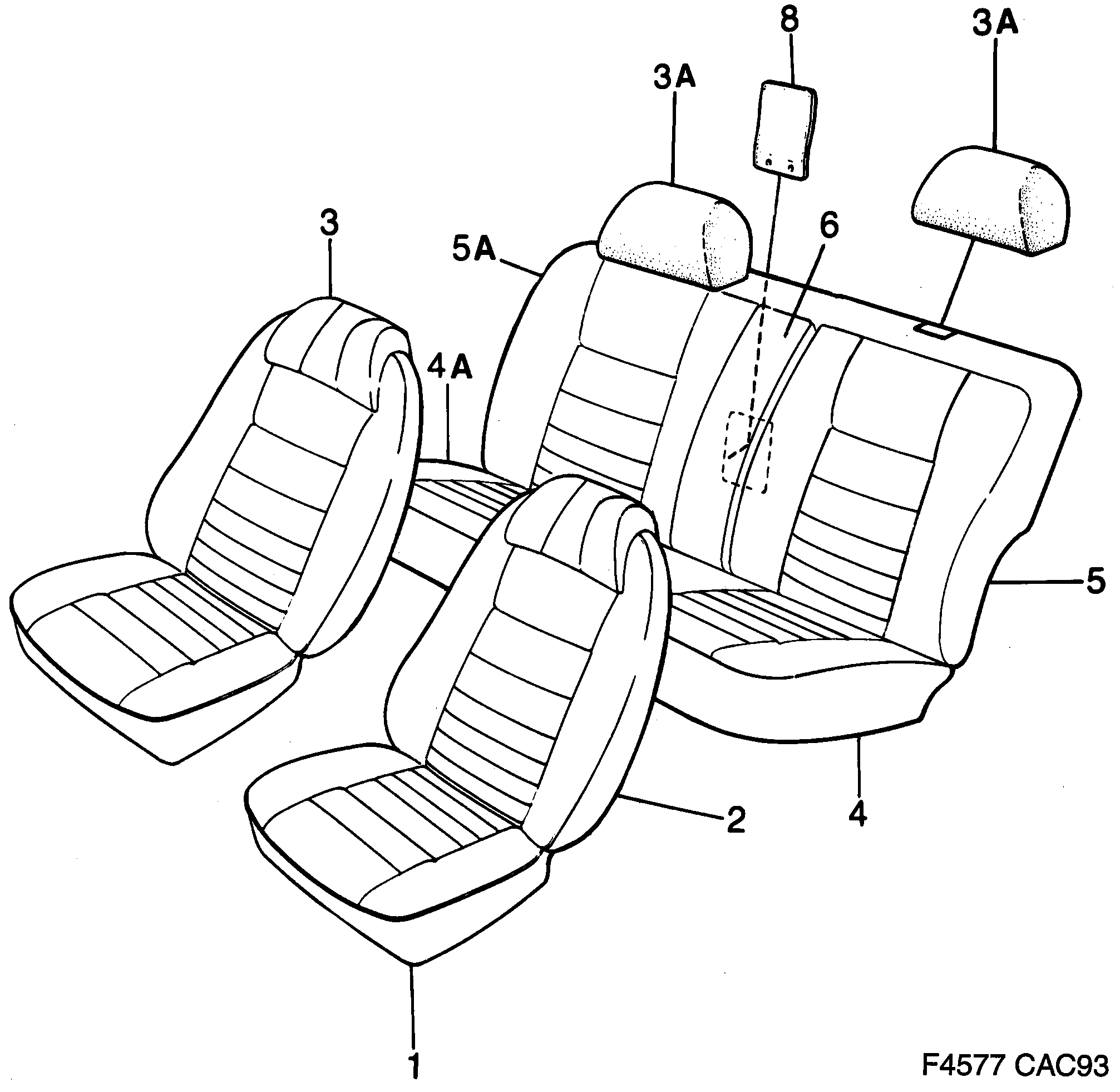

Group 8b Car body, internal, section 500
| Pos | Article | Part No. |
|---|---|---|
| 1 | Seat cover | 4288833 |
| 1 | Seat cover | 4288825 |
| 2 | Back cover | 4288841 |
| 3 | Head restraint cover | 4474078 |
| 3A | Head restraint cover | 4292488 |
| 4 | Seat cover | 4292371 |
| 4 | Seat cover | 4292801 |
| 4A | Seat cover | 4292363 |
| 5 | Back cover | 4292439 |
| 5 | Back cover | 4292835 |
| 5A | Back cover | 30541894 (replaces 4292421) |
| 6 | Arm rest cover | 4292504 |
| 8 | Hatch | 30541906 (replaces 4292777) |
| 1 | Seat cover | 4316592 |
| 1 | Seat cover | 4316626 |
| 2 | Back cover | 4316600 |
| 3 | Head restraint cover | 4474029 |
| 3A | Head restraint cover | 30544163 (replaces 4317061) |
| 4 | Seat cover | 4317012 |
| 4 | Seat cover | 4317137 |
| 4A | Seat cover | 4317020 |
| 5 | Back cover | 4317038 |
| 5 | Back cover | 4317145 |
| 5A | Back cover | 4317046 |
| 6 | Arm rest cover | 4317053 |
| 1 | Seat cover | 4316550 |
| 1 | Seat cover | 4316584 |
| 2 | Back cover | 4316568 |
| 1 | Seat cover | 4134151 |
| 1 | Seat cover | 4134169 |
| 2 | Back cover | 4134102 |
| 3 | Head restraint cover | 4474110 |
| 3A | Head restraint cover | 4050464 |
| 4 | Seat cover | 9697293 |
| 4 | Seat cover | 9575168 |
| 4A | Seat cover | 9697343 |
| 5 | Back cover | 4139960 |
| 5 | Back cover | 9575218 |
| 5A | Back cover | 4139978 |
| 6 | Arm rest cover | 9653718 |
| 8 | Hatch | 4051363 |
| 1 | Seat cover | 4317160 |
| 1 | Seat cover | 4317186 |
| 2 | Back cover | 4317178 |
| 3 | Head restraint cover | 4474060 |
| 3A | Head restraint cover | 4316758 |
| 4 | Seat cover | 4316717 |
| 4 | Seat cover | 4316832 |
| 4A | Seat cover | 4316725 |
| 5 | Back cover | 4316733 |
| 5 | Back cover | 4316840 |
| 5A | Back cover | 4316741 |
| 6 | Arm rest cover | 4316766 |
| 1 | Seat cover | 4316477 |
| 1 | Seat cover | 4316501 |
| 2 | Back cover | 4316485 |
| 1 | Seat cover | 4134177 |
| 1 | Seat cover | 4134185 |
| 2 | Back cover | 4134110 |
| 3 | Head restraint cover | 4474102 |
| 3A | Head restraint cover | 4050472 |
| 4 | Seat cover | 9697285 |
| 4 | Seat cover | 9575150 |
| 4A | Seat cover | 9697335 |
| 5 | Back cover | 4291530 |
| 5 | Back cover | 9575200 |
| 5A | Back cover | 4291522 |
| 6 | Arm rest cover | 9697244 |
| 8 | Hatch | 4051371 |
| 1 | Seat cover | 4316352 |
| 1 | Seat cover | 4316386 |
| 2 | Back cover | 4316360 |
| 3 | Head restraint cover | 4474052 |
| 3A | Head restraint cover | 4316964 |
| 4 | Seat cover | 4316915 |
| 4 | Seat cover | 4317079 |
| 4A | Seat cover | 30544057 (replaces 4316923) |
| 5 | Back cover | 4316931 |
| 5 | Back cover | 4317087 |
| 5A | Back cover | 4316949 |
| 6 | Arm rest cover | 4316956 |
| 1 | Seat cover | 4316634 |
| 1 | Seat cover | 4316667 |
| 2 | Back cover | 4316642 |
| 1 | Seat cover | 4134193 |
| 1 | Seat cover | 4134201 |
| 2 | Back cover | 4134128 |
| 3 | Head restraint cover | 4474086 |
| 3A | Head restraint cover | 4050480 |
| 4 | Seat cover | 9587346 |
| 4 | Seat cover | 9587403 |
| 4A | Seat cover | 9587411 |
| 5 | Back cover | 4291555 |
| 5 | Back cover | 9587478 |
| 5A | Back cover | 4291548 |
| 6 | Arm rest cover | 9587601 |
| 8 | Hatch | 4051389 |
| 1 | Seat cover | 4316394 |
| 1 | Seat cover | 4316428 |
| 2 | Back cover | 4316402 |
| 3 | Head restraint cover | 4474045 |
| 3A | Head restraint cover | 4316816 |
| 4 | Seat cover | 4316774 |
| 4 | Seat cover | 4317103 |
| 4A | Seat cover | 4316782 |
| 5 | Back cover | 4316790 |
| 5 | Back cover | 4317111 |
| 5A | Back cover | 4316808 |
| 6 | Arm rest cover | 4316824 |
| 1 | Seat cover | 4316675 |
| 1 | Seat cover | 4316709 |
| 2 | Back cover | 4316683 |
| 1 | Seat cover | 4127874 |
| 1 | Seat cover | 4127882 |
| 2 | Back cover | 4127890 |
| 3 | Head restraint cover | 4474094 |
| 3A | Head restraint cover | 4128179 |
| 4 | Seat cover | 4128096 |
| 4 | Seat cover | 4128146 |
| 4A | Seat cover | 4128104 |
| 5 | Back cover | 4291571 |
| 5 | Back cover | 4128153 |
| 5A | Back cover | 4291563 |
| 6 | Arm rest cover | 4128138 |
| 8 | Hatch | 4047932 |
| 1 | Seat cover | 4316436 |
| 1 | Seat cover | 4316469 |
| 2 | Back cover | 4316444 |
| 3 | Head restraint cover | 4474037 |
| 3A | Head restraint cover | 30543791 (replaces 4316907) |
| 4 | Seat cover | 4316972 |
| 4 | Seat cover | 4316865 |
| 4A | Seat cover | 4316980 |
| 5 | Back cover | 4316998 |
| 5 | Back cover | 4316873 |
| 5A | Back cover | 4317004 |
| 6 | Arm rest cover | 4316881 |
| 1 | Seat cover | 4316519 |
| 1 | Seat cover | 4316543 |
| 2 | Back cover | 4316527 |
| 1 | Seat cover | 4309555 |
| 1 | Seat cover | 4309563 |
| 2 | Back cover | 4309571 |
| 3 | Head restraint cover | 4474185 |
| 3A | Head restraint cover | 30545252 (replaces 4310264) |
| 4 | Seat cover | 4310157 |
| 4 | Seat cover | 4314829 |
| 4A | Seat cover | 4310165 |
| 5 | Back cover | 4310249 |
| 5 | Back cover | 4314837 |
| 5A | Back cover | 4310256 |
| 6 | Arm rest cover | 30545253 (replaces 4310272) |
| 8 | Hatch | 4314845 |
