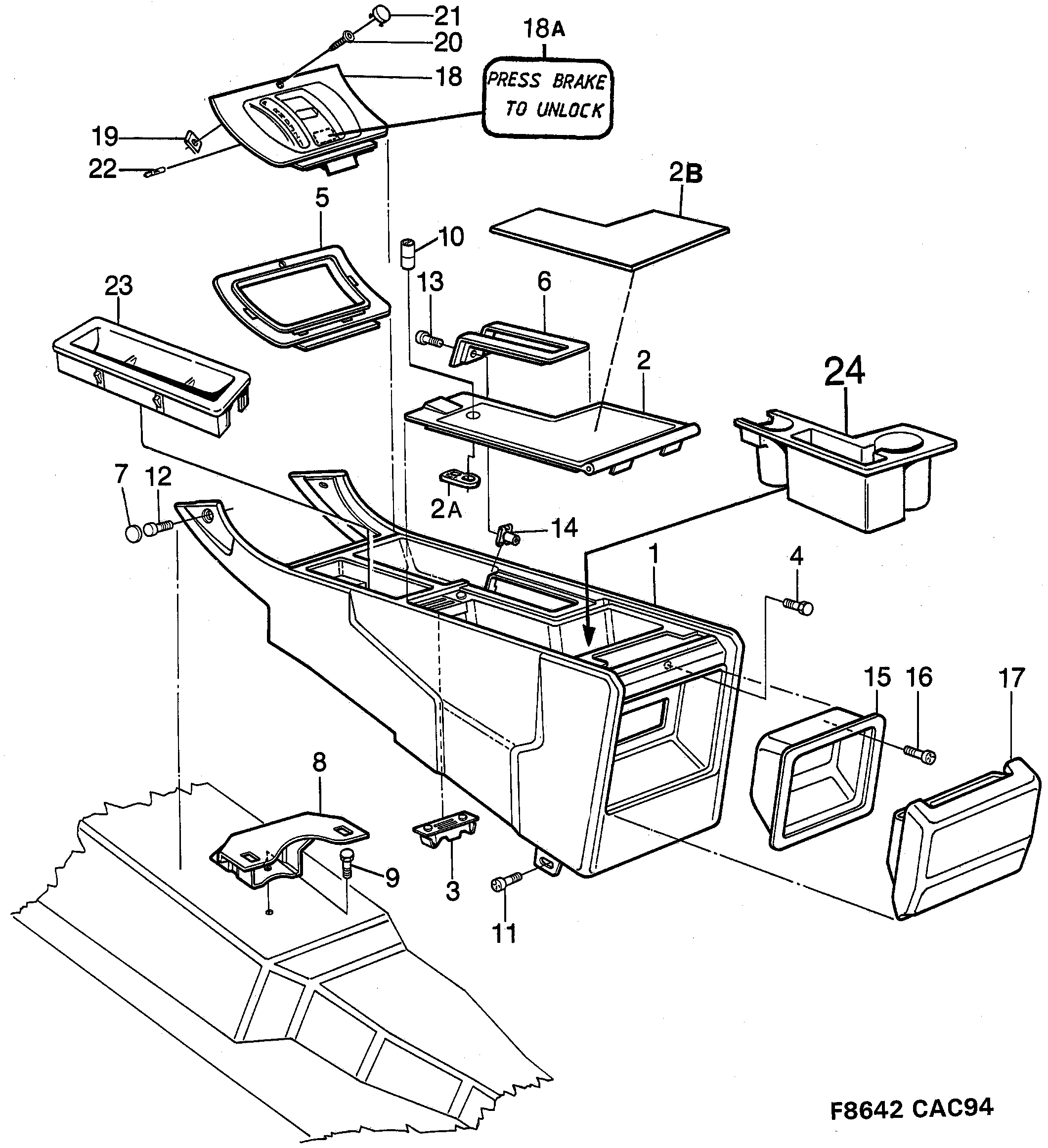

Group 8b Car body, internal, section 240
| Pos | Article | Part No. |
|---|---|---|
| 1 | Centre console | 4427092 |
| 1 | Centre console | 4616439 |
| 1 | Centre console | 4427068 |
| 1 | Centre console | 4616413 |
| 1 | Centre console | 4427084 |
| 1 | Centre console | 4616421 |
| 2 | Cover | 4083374 |
| 2 | Cover | 4086930 |
| 2 | Cover | 4077012 |
| 2 | Cover | 4086906 |
| 2 | Cover | 4077038 |
| 2 | Cover | 4086922 |
| 2A | Lock tab | 4086781 |
| 2B | Wooden insert | 4616801 |
| 2B | Wooden insert | 4616819 |
| 2B | Wooden insert | 4816112 |
| 3 | Magnet | 9763228 |
| 4 | Rivet | 9220880 |
| 5 | Collar | 9760596 |
| 5 | Collar | 136103066 (replaces 8669160) |
| 5 | Collar | 9764200 |
| 5 | Collar | 8673451 |
| 6 | Frame | 9790007 |
| 7 | Cover | 4083341 |
| 7 | Cover | 9581893 |
| 7 | Cover | 9778911 |
| 8 | Bracket | 9663048 |
| 8 | Bracket | 9663055 |
| 9 | Screw | 7969223 |
| 9 | Screw | 92153146 (replaces 7972607) |
| 12 | Screw | 7965338 |
| 13 | Screw | 92150118 (replaces 7970536) |
| 14 | Clip nut | 92150164 (replaces 7972573) |
| 15 | Ashtray housing | 9778283 |
| 16 | Screw | 9781501 |
| 17 | Ashtray | 9751074 |
| 17 | Ashtray | 4085908 |
| 18 | Shift lever boot | 9592908 |
| 18 | Shift lever boot | 136103041 (replaces 8669178) |
| 18 | Shift lever boot | 4085320 |
| 18 | Shift lever boot | 4519781 |
| 18 | Shift lever boot | 4428215 |
| 18 | Shift lever boot | 4519849 |
| 18 | Shift lever boot | 9592916 |
| 18 | Shift lever boot | 8673444 |
| 18A | Cover | 4519773 |
| 19 | Clip nut | 7972771 |
| 20 | Screw | 7922214 (replaces 8427841) |
| 21 | Cover | 9285404 |
| 24 | Cup holder | 4708434 |
