Saab 9000 1990-1993 Centre console

Group 8b Car body, internal, section 230

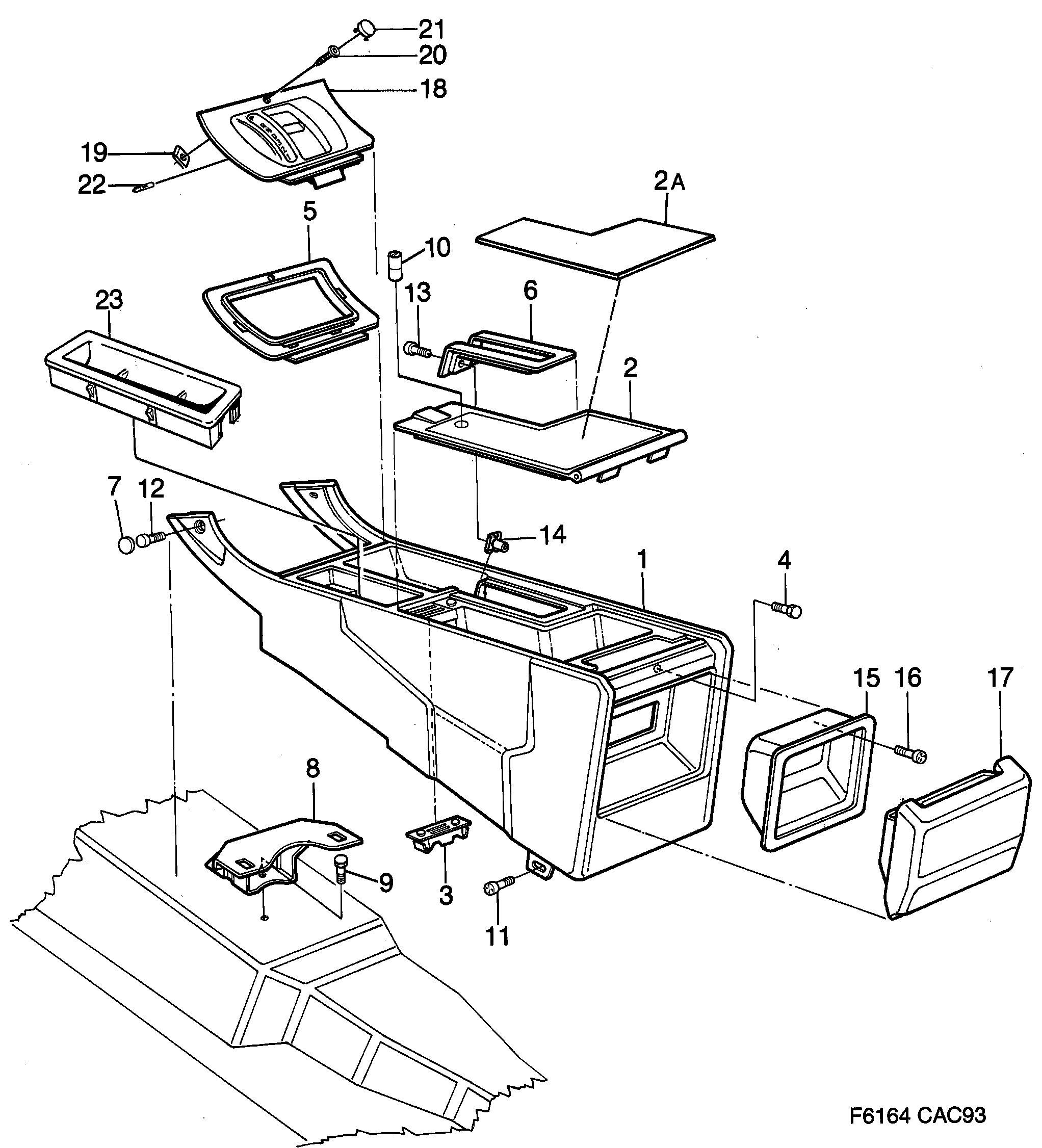

Saab 9000 Centre console diagram

Pos	Article	Part No.
1	Centre console	4427092 (replaces 4083325)
1	Centre console	4616439 (replaces 4437034)
1	Centre console	4078416
1	Centre console	4427068 (replaces 4078424)
1	Centre console	4437026
1	Centre console	4078432
1	Centre console	4437018
1	Centre console	4427084 (replaces 4078440)
1	Centre console	4616421 (replaces 4078481)
2	Cover	4083374
2	Cover	4077004
2	Cover	4077012
2	Cover	4077020
2	Cover	4077038
2A	Wooden insert	8669186
3	Magnet	9763228
4	Rivet	9220880
5	Collar	9760596
5	Collar	136103066 (replaces 8669160)
5	Collar	9764200
5	Collar	8673451
6	Frame	4083358
6	Frame	9789991
6	Frame	9581901
6	Frame	9679994
6	Frame	9790007
7	Cover	4083341
7	Cover	9778929
7	Cover	9581893
7	Cover	9679986
7	Cover	9778911
8	Bracket	9663048
8	Bracket	9663055
9	Screw	7969223
11	Screw	92153146 (replaces 7972607)
12	Screw	7965338
13	Screw	7970304
13	Screw	92150118 (replaces 7970536)
14	Clip nut	9663006
14	Clip nut	92150164 (replaces 7972573)
15	Ashtray housing	9760695
16	Screw	9781501
17	Ashtray	9751074
17	Ashtray	4085908
18	Shift lever boot	9592908
18	Shift lever boot	136103041 (replaces 8669178)
18	Shift lever boot	4085320
18	Shift lever boot	4428215
18	Shift lever boot	9592916
18	Shift lever boot	8673444
19	Clip nut	7972771
20	Screw	7922214 (replaces 8427841)
21	Cover	9285404
