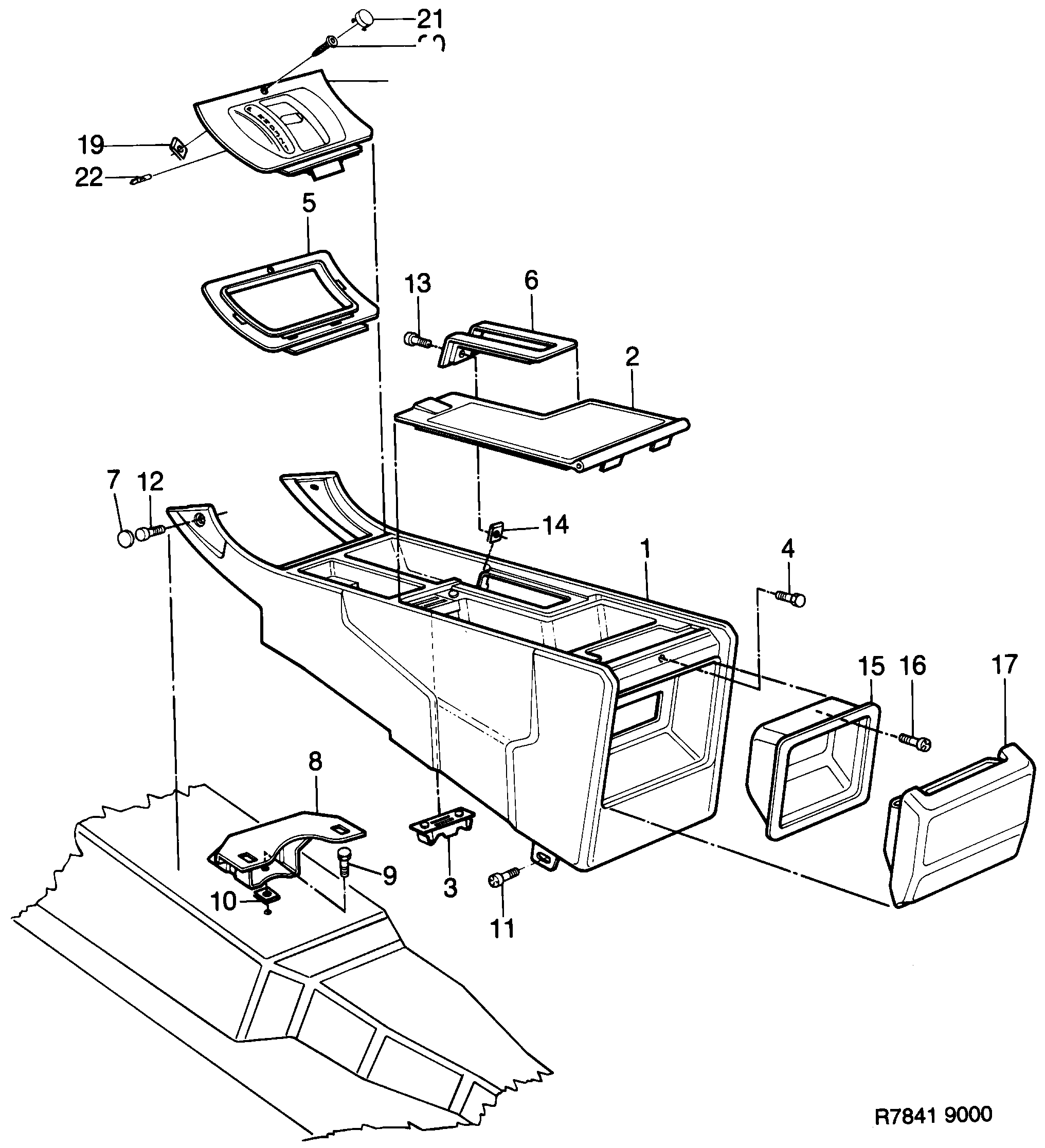

Group 8b Car body, internal, section 220
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bracket | 9781972 |
| 1 | Bracket | 4078416 (replaces 9651670) |
| 1 | Centre console | 4033676 |
| 1 | Centre console | 9782020 |
| 1 | Centre console | 9651688 |
| 1 | Centre console | 4033726 |
| 1 | Centre console | 9781980 |
| 1 | Centre console | 9573882 |
| 1 | Centre console | 9581919 |
| 1 | Centre console | 4427068 (replaces 4033700) |
| 1 | Centre console | 9782038 |
| 1 | Centre console | 9669979 |
| 1 | Centre console | 9573965 |
| 1 | Centre console | 9581943 |
| 1 | Centre console | 4033759 |
| 1 | Centre console | 9651712 |
| 1 | Centre console | 9679960 |
| 1 | Centre console | 4033692 |
| 1 | Centre console | 9651720 |
| 1 | Centre console | 9690165 |
| 1 | Centre console | 4033742 |
| 1 | Centre console | 9782004 |
| 1 | Centre console | 9651738 |
| 1 | Centre console | 9573890 |
| 1 | Centre console | 4427084 (replaces 4033684) |
| 1 | Centre console | 9782053 |
| 1 | Centre console | 9651746 |
| 1 | Centre console | 9573973 |
| 1 | Centre console | 4616421 (replaces 4033734) |
| 1 | Centre console | 9651589 |
| 1 | Centre console | 9573866 |
| 1 | Centre console | 9651597 |
| 1 | Centre console | 9573940 |
| 2 | Cover | 4077004 |
| 2 | Cover | 9578634 |
| 2 | Cover | 4030813 |
| 2 | Cover | 9778820 |
| 2 | Cover | 9578642 |
| 2 | Cover | 9581745 |
| 2 | Cover | 4030847 |
| 2 | Cover | 9574195 |
| 2 | Cover | 4077020 |
| 2 | Cover | 4077038 |
| 2 | Cover | 9578675 |
| 2 | Cover | 4030821 |
| 2 | Cover | 9578683 |
| 3 | Magnet | 9763228 |
| 4 | Rivet | 9220880 |
| 5 | Collar | 9760596 |
| 5 | Collar | 9764200 |
| 6 | Frame | 9789991 |
| 6 | Frame | 9793159 |
| 6 | Frame | 9669953 |
| 6 | Frame | 9581901 |
| 6 | Frame | 9790015 |
| 6 | Frame | 9679994 |
| 6 | Frame | 9790007 |
| 6 | Frame | 9651613 |
| 7 | Cover | 9778929 |
| 7 | Cover | 9778937 |
| 7 | Cover | 9669946 |
| 7 | Cover | 9581893 |
| 7 | Cover | 9778945 |
| 7 | Cover | 9679986 |
| 7 | Cover | 9778911 |
| 7 | Cover | 9651605 |
| 8 | Bracket | 9760141 |
| 8 | Bracket | 9663048 |
| 8 | Bracket | 9778655 |
| 8 | Bracket | 9663055 |
| 9 | Screw | 8059396 |
| 9 | Screw | 7969223 |
| 10 | Cage nut | 7974231 |
| 10 | Cage nut | 7974728 |
| 10 | Cage nut | 7974538 |
| 11 | Screw | 7973050 |
| 11 | Screw | 92153146 (replaces 7972607) |
| 12 | Screw | 7965338 |
| 13 | Screw | 7970304 |
| 14 | Clip nut | 92150164 (replaces 7972573) |
| 15 | Ashtray housing | 9760695 |
| 16 | Screw | 9781501 |
| 17 | Ashtray | 9751074 |
| 18 | Shift lever boot | 9592908 |
| 18 | Shift lever boot | 9592916 |
| 18 | Cover | 9690009 |
| 19 | Clip nut | 7972771 |
| 20 | Screw | 7922214 (replaces 8427841) |
| 21 | Cover | 9285404 |
| 22 | Bulb | 93190474 (replaces 8500613) |
