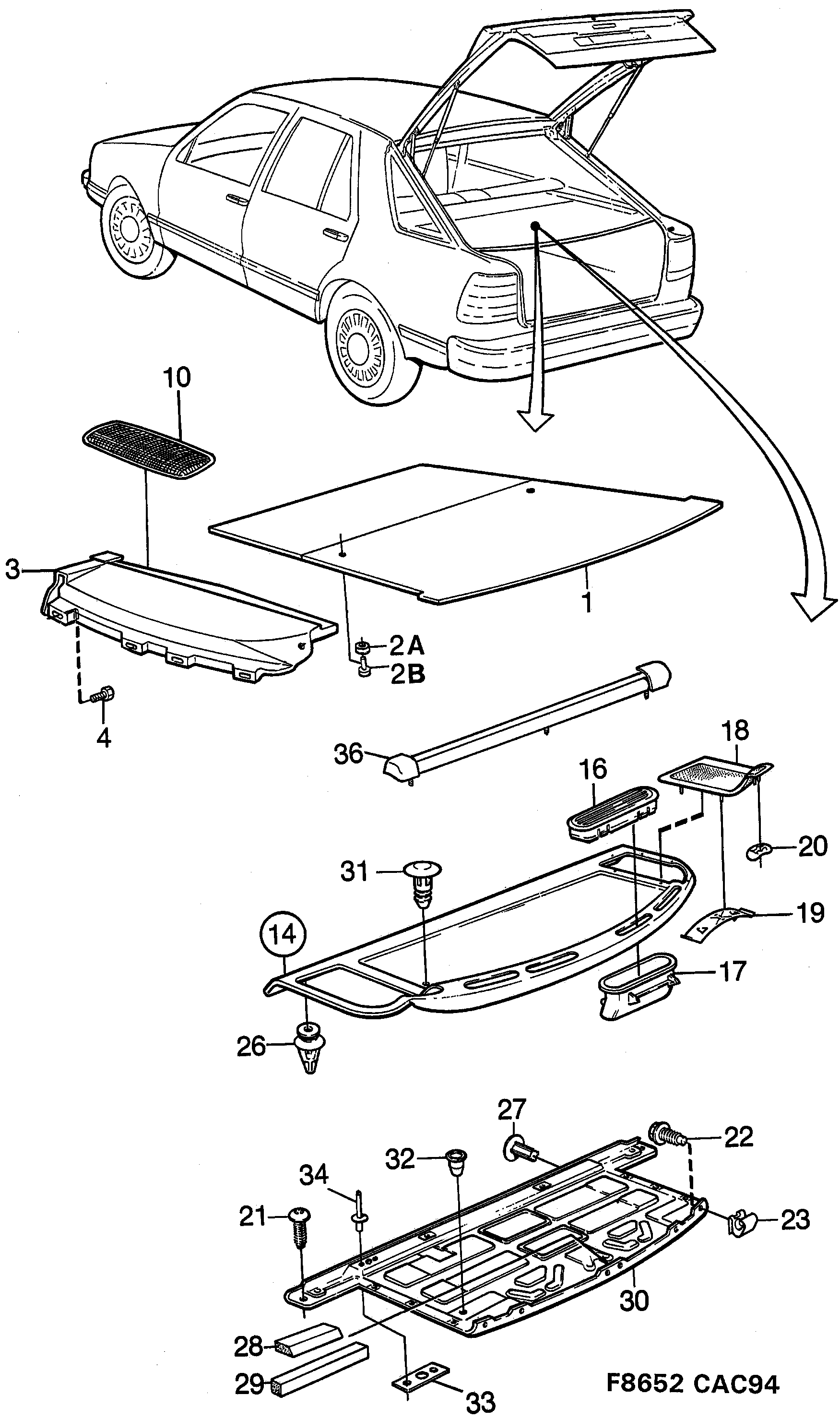

Group 8b Car body, internal, section 1830
| Pos | Article | Part No. |
|---|---|---|
| 1 | Parcel shelf | 4268470 |
| 1 | Parcel shelf | 4499059 |
| 2A | Stop | 4266532 |
| 2B | Screw | 4267787 |
| 3 | Support | 4486817 |
| 3 | Support | 4486825 |
| 4 | Screw | 7982366 (replaces 7975170) |
| 4 | Screw | 92153146 (replaces 7972607) |
| 14 | Parcel shelf | 4264289 |
| 14 | Parcel shelf | 4044079 |
| 14 | Parcel shelf | 4133278 |
| 14 | Parcel shelf | 4268132 |
| 16 | Air outlet | 4264446 |
| 17 | Air outlet | 9674896 |
| 18 | Grille, loudspeaker | 9694001 |
| 18 | Grille, loudspeaker | 9694019 |
| 19 | Clamp | 9578246 |
| 20 | Clamp | 9692724 |
| 22 | Screw | 8286296 |
| 23 | Cage nut | 7977895 |
| 26 | Clamp | 9578238 |
| 27 | Cover | 4264388 |
| 27 | Cover | 9591892 |
| 27 | Cover | 9591637 |
| 28 | Seal | 4030342 |
| 29 | Seal | 4034369 |
| 30 | Support | 4704219 (replaces 9584871) |
| 30 | Support | 4704219 |
| 31 | Plug | 4264370 |
| 31 | Plug | 9583576 |
| 31 | Plug | 9583196 |
| 32 | Sleeve | 9580275 |
| 33 | Nut plate | 9583790 |
| 33 | Nut plate | 9653502 |
| 34 | Rivet | 92153058 (replaces 7972490) |
