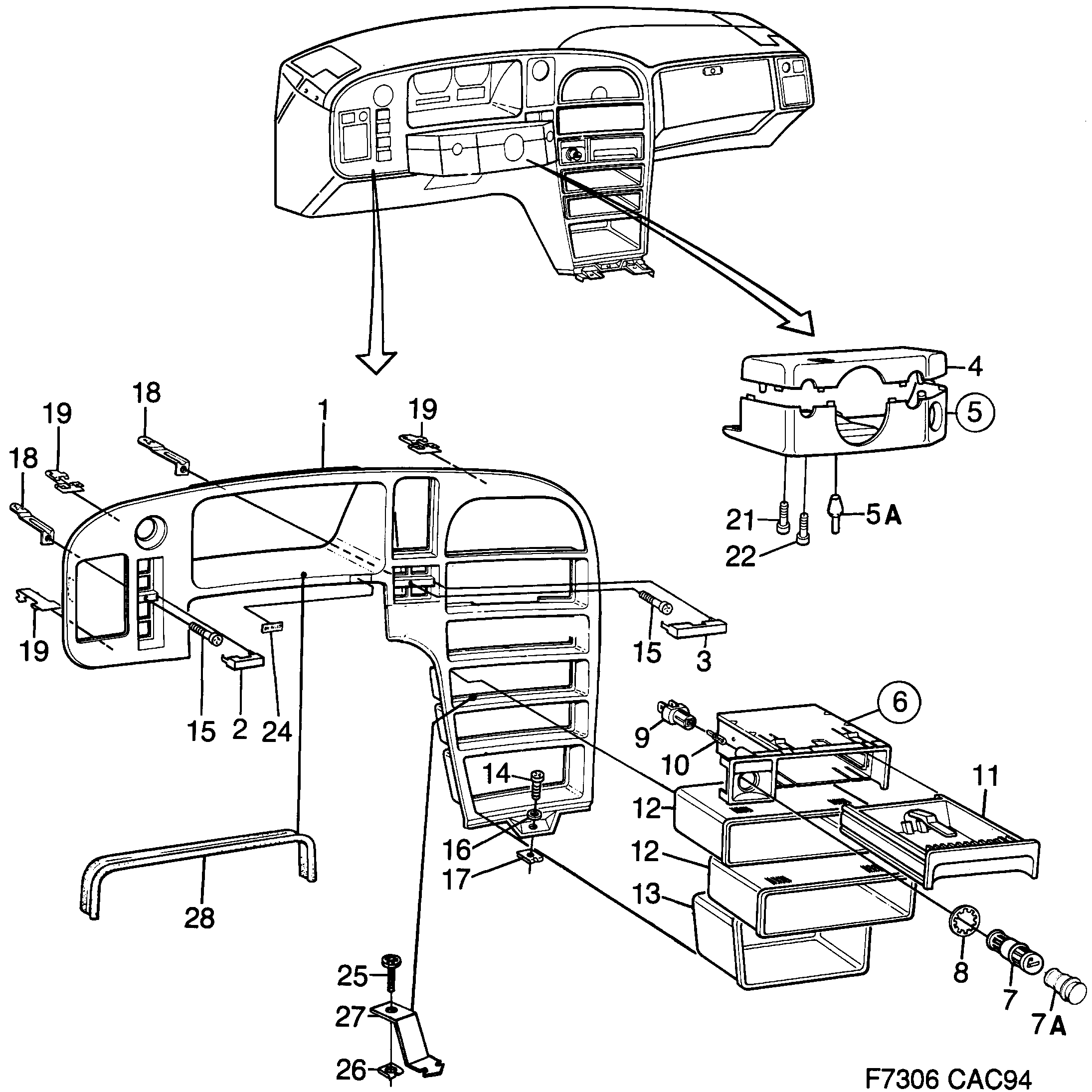

Group 8b Car body, internal, section 180
| Pos | Article | Part No. |
|---|---|---|
| 1 | Instrument frame | 4082699 |
| 1 | Instrument frame | 8673428 |
| 1 | Instrument frame | 4082707 |
| 1 | Instrument frame | 8673436 |
| 2 | Cover washer | 9760372 |
| 3 | Cover washer | 9760380 |
| 4 | Cover | 4082715 |
| 5 | Cover | 9545229 |
| 5 | Cover | 4519047 |
| 5 | Cover | 4518635 |
| 5A | Plug | 7113970 |
| 6 | Ashtray housing | 9778218 |
| 7 | Cigarette lighter | 8574469 |
| 7A | Lighter unit | 8559221 |
| 8 | Clip | 8532426 |
| 9 | Bulb socket | 8509697 |
| 10 | Bulb | 93190474 (replaces 8500613) |
| 11 | Ashtray | 9574724 |
| 12 | Storage tray | 9714817 |
| 13 | Storage tray | 9755216 |
| 13 | Storage tray | 9764762 |
| 14 | Screw | 7965338 |
| 15 | Screw | 92150118 (replaces 7970536) |
| 17 | Clip nut | 7977317 |
| 18 | Clip nut | 9767179 |
| 19 | Clamp | 9761552 |
| 21 | Screw | 7974512 |
| 22 | Screw | 7971443 |
| 24 | Text plate | 9659764 |
| 25 | Screw | 8441503 |
| 27 | Clamp | 9678541 |
| 28 | Piping | 4084398 |
| 28 | Piping | 4638458 |
