Saab 9000 1994-1997 Rear seat, fixed Seat cushion

Group 8b Car body, internal, section 1680

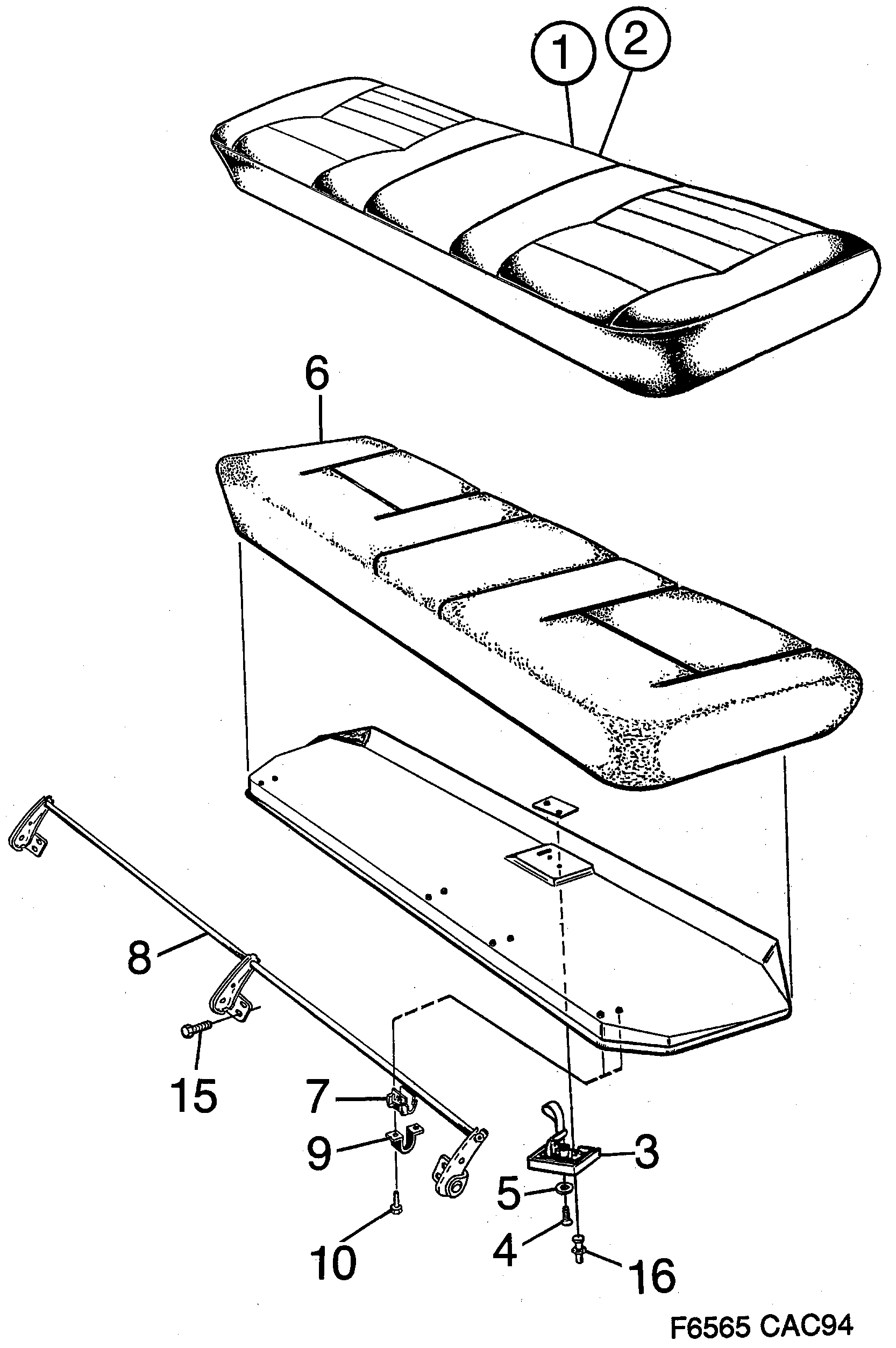

Saab 9000 Rear seat, fixed Seat cushion diagram
PosArticlePart No.
2Seat cushion4534939
2Seat cushion4534996
2Seat cushion4650495
3Lock9572454
4Screw7977028
5Washer9787516
6Foam plastic cushion4505350
6Foam plastic cushion4505384
6Foam plastic cushion4650529
7Bushing4048260
8Link arm9572470
9Cap4048278
10Screw7974397
15Screw8059578 (replaces 9778952)
16Lock pin30542669 (replaces 4312948)
16Lock pin4656005
Mounting kit4475539
