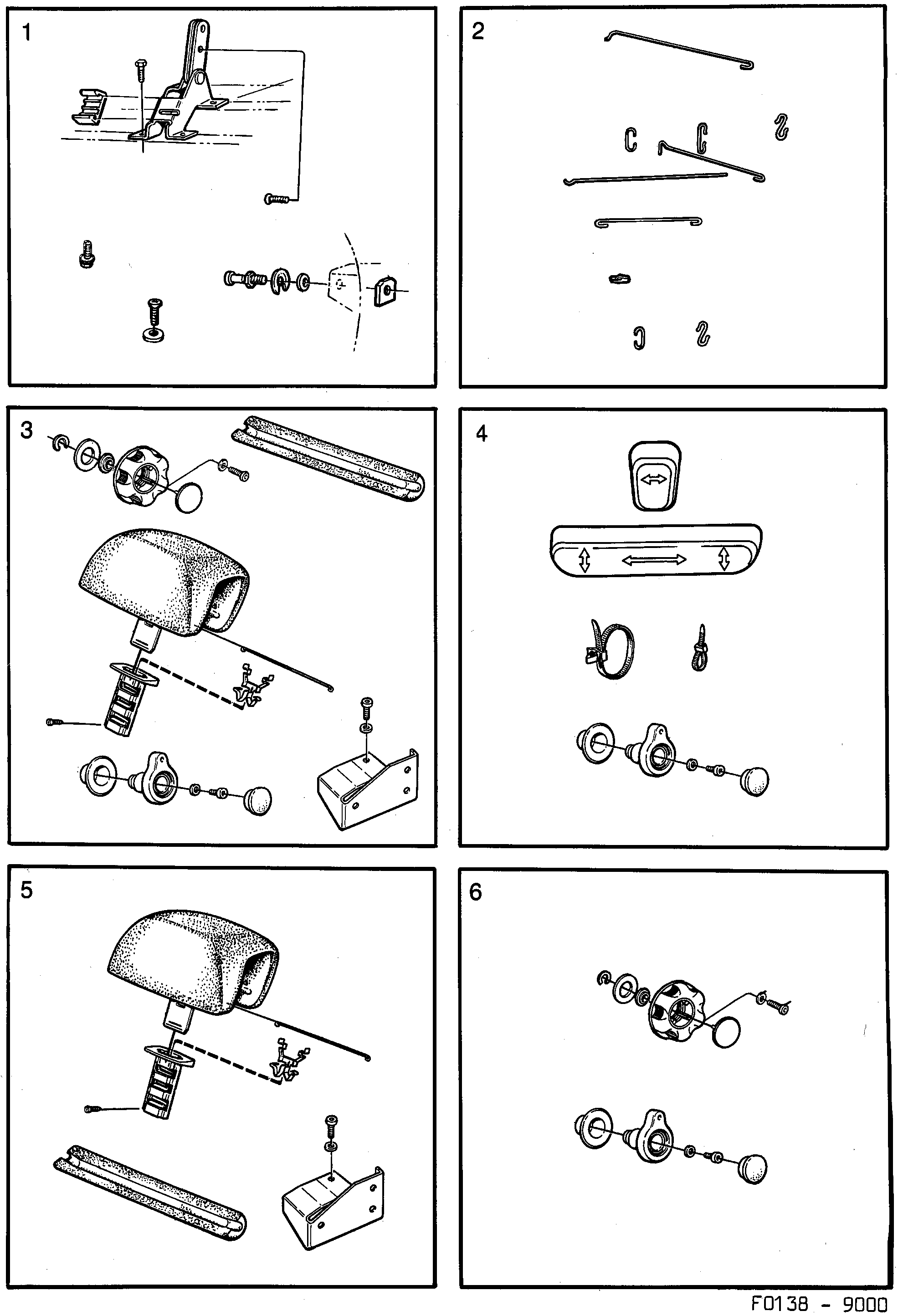

Group 8b Car body, internal, section 1630
| Pos | Article | Part No. |
|---|---|---|
| 1 | Mounting kit | 9672668 |
| Washer | 92153033 (replaces 7916497) | |
| Screw | 92152142 (replaces 7975212) | |
| Screw | 7981921 | |
| Screw | 92151821 (replaces 8059552) | |
| Washer | 8311904 | |
| Lock pin | 30542669 (replaces 9671025) | |
| Joint | 9761974 | |
| Nut plate | 9765272 | |
| Screw | 8059578 (replaces 9778952) | |
| Washer | 4288189 (replaces 9789090) | |
| Plastic buffer | 9789769 | |
| Washer | 4288189 (replaces 9791971) | |
| 2 | Mounting kit | 9676818 |
| Wire rod | 9671041 | |
| Wire rod | 9692906 | |
| Wire rod | 9721481 | |
| Wire rod | 9721499 | |
| Hook | 9769209 | |
| Hook | 9769217 | |
| Hook | 9769225 | |
| Cover rod | 9782558 | |
| Attaching brace | 9783408 | |
| 2 | Mounting kit | 9671751 |
| Cover rod | 9781592 | |
| Clamp | 9450685 | |
| 2 | Mounting kit | 9697939 |
| Cover rod | 9547332 | |
| Wire rod | 9694969 | |
| Wire rod | 9584715 | |
| Wire rod | 9584723 | |
| Attaching brace | 9593245 | |
| 3 | Mounting kit | 9671744 |
| Screw | 8059396 | |
| Screw | 9781204 | |
| Screw | 8059537 | |
| Screw | 7971294 | |
| Screw | 7922396 | |
| Screw | 7922271 | |
| Cage nut | 7975766 | |
| Washer | 8029951 | |
| Washer | 8029944 | |
| Head restraint | 9767815 | |
| Elastic | 9740663 | |
| Wire rod | 9459868 | |
| Sleeve | 4031563 | |
| Control knob | 9546946 | |
| Reinforcement | 9589045 | |
| Cover | 9851619 | |
| Cloth | 9864000 | |
| Bracket | 9781162 | |
| Bracket | 9782210 | |
| Screw | 7974884 | |
| Retaining ring | 7963143 (replaces 7915077) | |
| Locking spring | 9796848 | |
| Cover washer | 9785015 | |
| Steering wheel | 9763632 | |
| Cover | 9763624 | |
| Protection | 9792391 | |
| 4 | Mounting kit | 9586108 |
| Screw | 9544818 | |
| Screw | 9585423 | |
| Screw | 92153219 (replaces 7922354) | |
| Nut | 4134003 (replaces 7979479) | |
| Tie strap | 8552663 | |
| Tie strap | 7971872 | |
| Button | 5457510 (replaces 9565003) | |
| Button | 5457528 (replaces 9565011) | |
| Stud | 4134003 (replaces 9585431) | |
| Cover | 4034054 | |
| Cover | 4034047 | |
| Stop bracket | 4059671 | |
| Reinforcement | 4042974 | |
| 5 | Mounting kit | 9588542 |
| Head restraint | 9547688 | |
| 6 | Mounting kit | 9588559 |
| Screw | 8059560 | |
| Screw | 8499204 | |
| 6 | Mounting kit | 9588534 |
