Saab 9000 1994-1994 Rear seat, fixed Seat cushion

Group 8b Car body, internal, section 1620

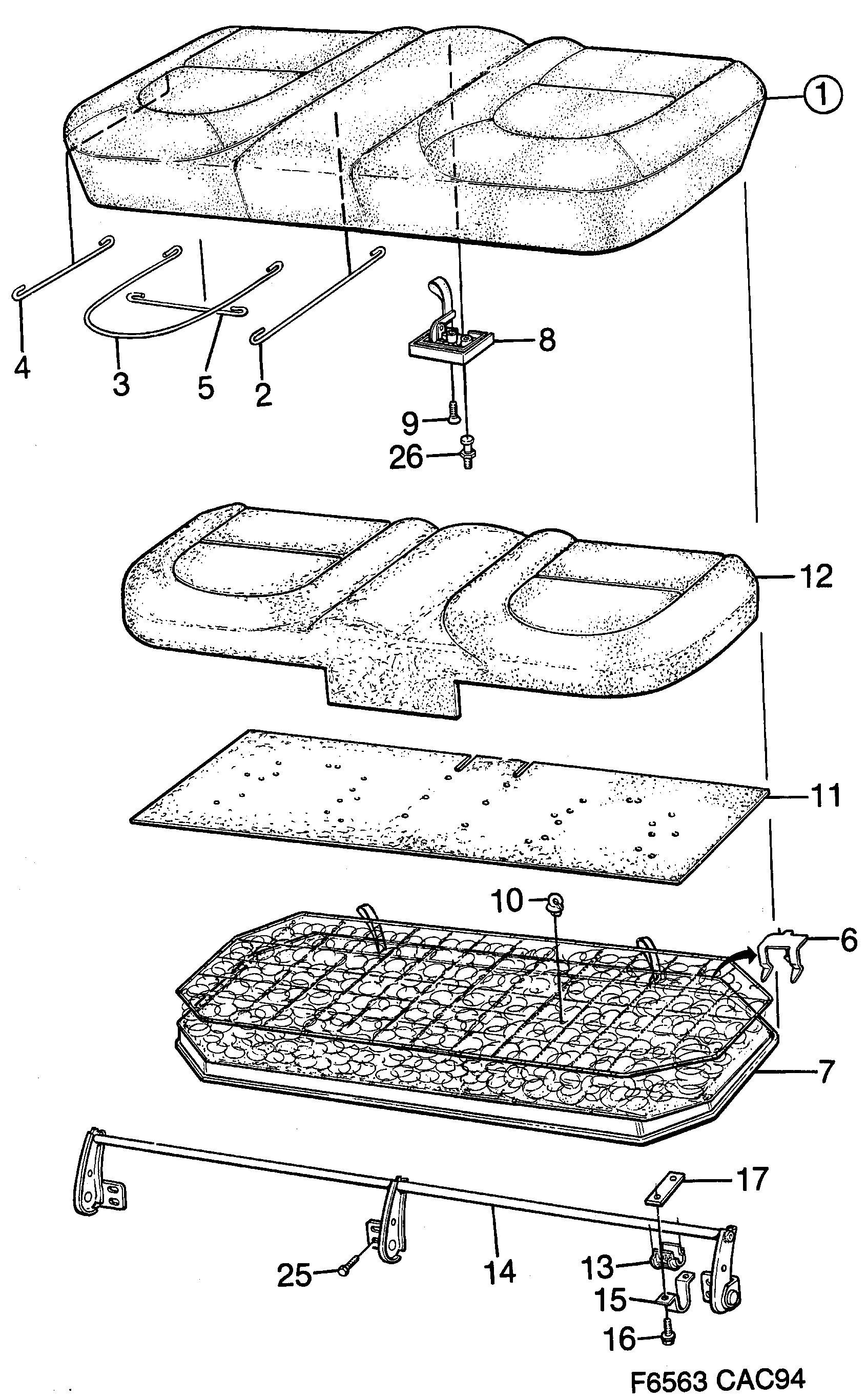

Saab 9000 Rear seat, fixed Seat cushion diagram

Pos	Article	Part No.
1	Seat cushion	9699091
1	Seat cushion	9699117
2	Wire rod	9693094
3	Wire rod	9787532
4	Wire rod	9584749
5	Wire rod	9828658
5	Wire rod	9721499
6	Clamp	9673831
7	Spring housing	9752379
7	Spring housing	30529270 (replaces 9675174)
8	Lock	9572454
9	Screw	7977028
10	Hook	9781469
11	Padding	9761867
12	Foam plastic cushion	9752395
12	Foam plastic cushion	9591793
13	Bushing	4048260
14	Link arm	9572470
15	Cap	4048278
16	Screw	7975436
17	Spacer	9572447
25	Screw	8059578 (replaces 9778952)
26	Lock pin	30542669 (replaces 4312948)
