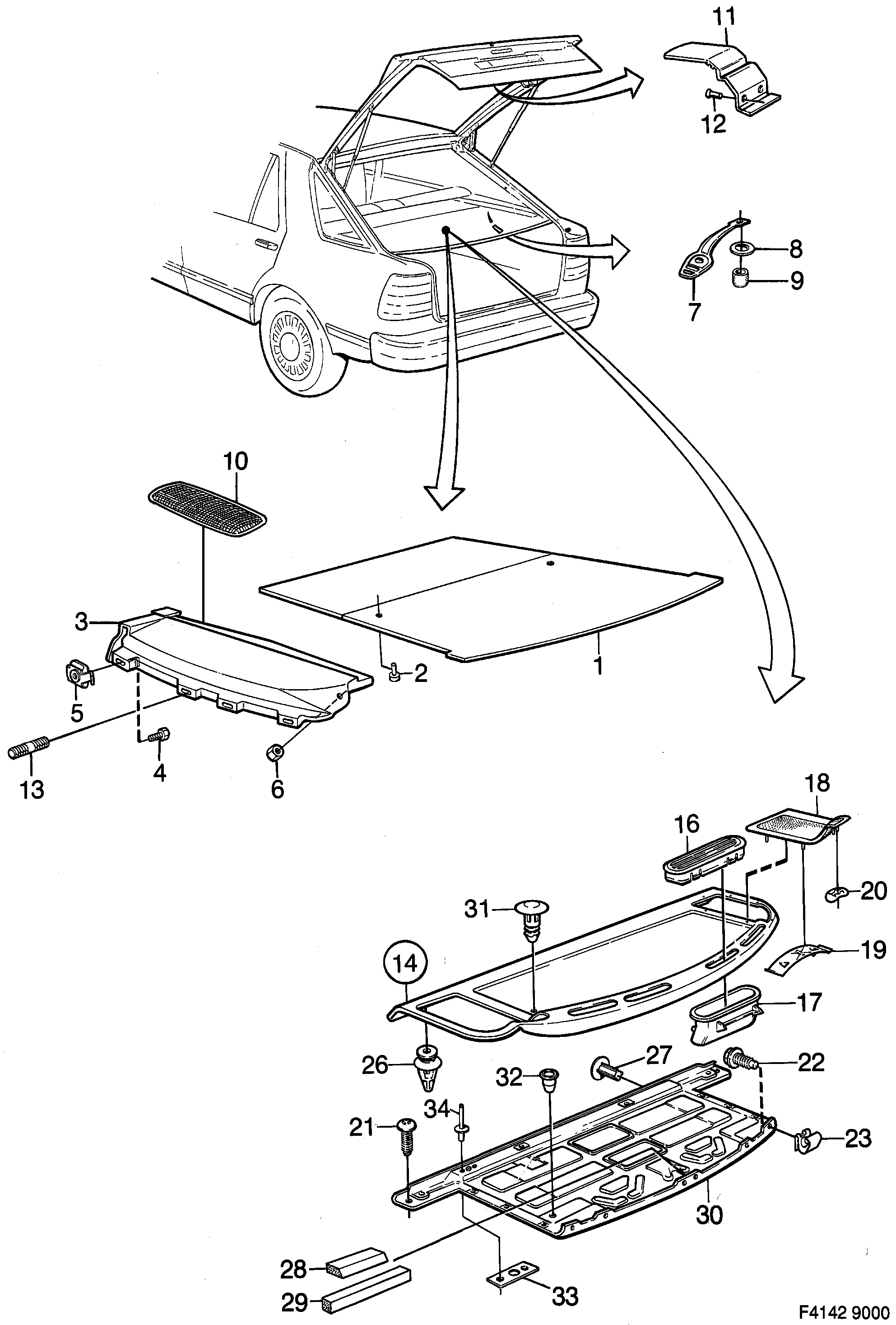

Group 8b Car body, internal, section 1540
| Pos | Article | Part No. |
|---|---|---|
| 1 | Parcel shelf | 9897406 |
| 1 | Parcel shelf | 9673732 |
| 1 | Parcel shelf | 9690959 |
| 1 | Parcel shelf | 9673740 |
| 1 | Parcel shelf | 9581281 |
| 1 | Parcel shelf | 9673765 |
| 1 | Parcel shelf | 9673724 |
| 1 | Parcel shelf | 9673757 |
| 1 | Parcel shelf | 9690967 |
| 2 | Set screw | 9673773 |
| 3 | Support | 9897430 |
| 3 | Support | 9576570 |
| 3 | Support | 9897448 |
| 3 | Support | 9690983 |
| 3 | Support | 9897455 |
| 3 | Support | 9576588 |
| 3 | Support | 9581265 |
| 3 | Support | 9897463 |
| 3 | Support | 9581273 |
| 3 | Support | 9576596 |
| 3 | Support | 9799776 |
| 3 | Support | 9799743 |
| 3 | Support | 9576562 |
| 3 | Support | 9799750 |
| 3 | Support | 9897471 |
| 3 | Support | 9576604 |
| 3 | Support | 9897489 |
| 3 | Support | 9691007 |
| 4 | Screw | 7969223 |
| 4 | Screw | 8286296 |
| 4 | Screw | 7982366 (replaces 7975170) |
| 5 | Cage nut | 7974728 |
| 6 | Nut | 11900428 (replaces 7971658) |
| 7 | Strap | 8467409 |
| 8 | Spring nut | 9794520 |
| 9 | Cap | 9796327 |
| 10 | Grille, loudspeaker | 9783002 |
| 10 | Grille, loudspeaker | 9783010 |
| 10 | Grille, loudspeaker | 9783028 |
| 10 | Grille, loudspeaker | 9783036 |
| 10 | Grille, loudspeaker | 9670456 |
| 10 | Grille, loudspeaker | 9581331 |
| 10 | Grille, loudspeaker | 9670464 |
| 10 | Grille, loudspeaker | 9581372 |
| 10 | Grille, loudspeaker | 9799628 |
| 10 | Grille, loudspeaker | 9799636 |
| 10 | Grille, loudspeaker | 9799602 |
| 10 | Grille, loudspeaker | 9799610 |
| 10 | Grille, loudspeaker | 9783044 |
| 10 | Grille, loudspeaker | 9691114 |
| 10 | Grille, loudspeaker | 9783051 |
| 10 | Grille, loudspeaker | 9691122 |
| 11 | Profile | 9797085 |
| 12 | Rivet | 9849514 |
| 13 | Stud | 9446881 |
| 14 | Parcel shelf | 9545013 |
| 14 | Parcel shelf | 9545070 |
| 14 | Parcel shelf | 9545039 |
| 14 | Parcel shelf | 4043576 |
| 14 | Parcel shelf | 9545021 |
| 14 | Parcel shelf | 4043626 |
| 14 | Parcel shelf | 9545054 |
| 14 | Parcel shelf | 4043899 |
| 14 | Parcel shelf | 9545047 |
| 16 | Air outlet | 9694316 |
| 16 | Air outlet | 9581422 |
| 16 | Air outlet | 9694290 |
| 16 | Air outlet | 9694308 |
| 16 | Air outlet | 9694332 |
| 16 | Air outlet | 9694324 |
| 17 | Air outlet | 9674896 |
| 18 | Grille, loudspeaker | 9693987 |
| 18 | Grille, loudspeaker | 9581448 |
| 18 | Grille, loudspeaker | 9693995 |
| 18 | Grille, loudspeaker | 9581430 |
| 18 | Grille, loudspeaker | 9693946 |
| 18 | Grille, loudspeaker | 9693953 |
| 18 | Grille, loudspeaker | 9693961 |
| 18 | Grille, loudspeaker | 9693979 |
| 18 | Grille, loudspeaker | 9694027 |
| 18 | Grille, loudspeaker | 9694035 |
| 18 | Grille, loudspeaker | 9694001 |
| 18 | Grille, loudspeaker | 9694019 |
| 19 | Clamp | 9578246 |
| 20 | Clamp | 9692724 |
| 21 | Screw | 7971294 |
| 23 | Cage nut | 7977895 |
| 26 | Clamp | 9578238 |
| 27 | Cover | 9591629 |
| 27 | Cover | 9591892 |
| 27 | Cover | 9591603 |
| 27 | Cover | 9591611 |
| 27 | Cover | 9591645 |
| 27 | Cover | 9591637 |
| 28 | Seal | 4030342 |
| 29 | Seal | 4034369 |
| 30 | Support | 4704219 (replaces 9673666) |
| 31 | Plug | 9583188 |
| 31 | Plug | 9583576 |
| 31 | Plug | 9583162 |
| 31 | Plug | 9583170 |
| 31 | Plug | 9583204 |
| 31 | Plug | 9583196 |
| 32 | Sleeve | 9580275 |
| 33 | Nut plate | 9583790 |
| 33 | Nut plate | 9653502 |
| 34 | Rivet | 92153058 (replaces 7972490) |
