Saab 9000 1994-1996 Rear seat Back cushion

Group 8b Car body, internal, section 1530

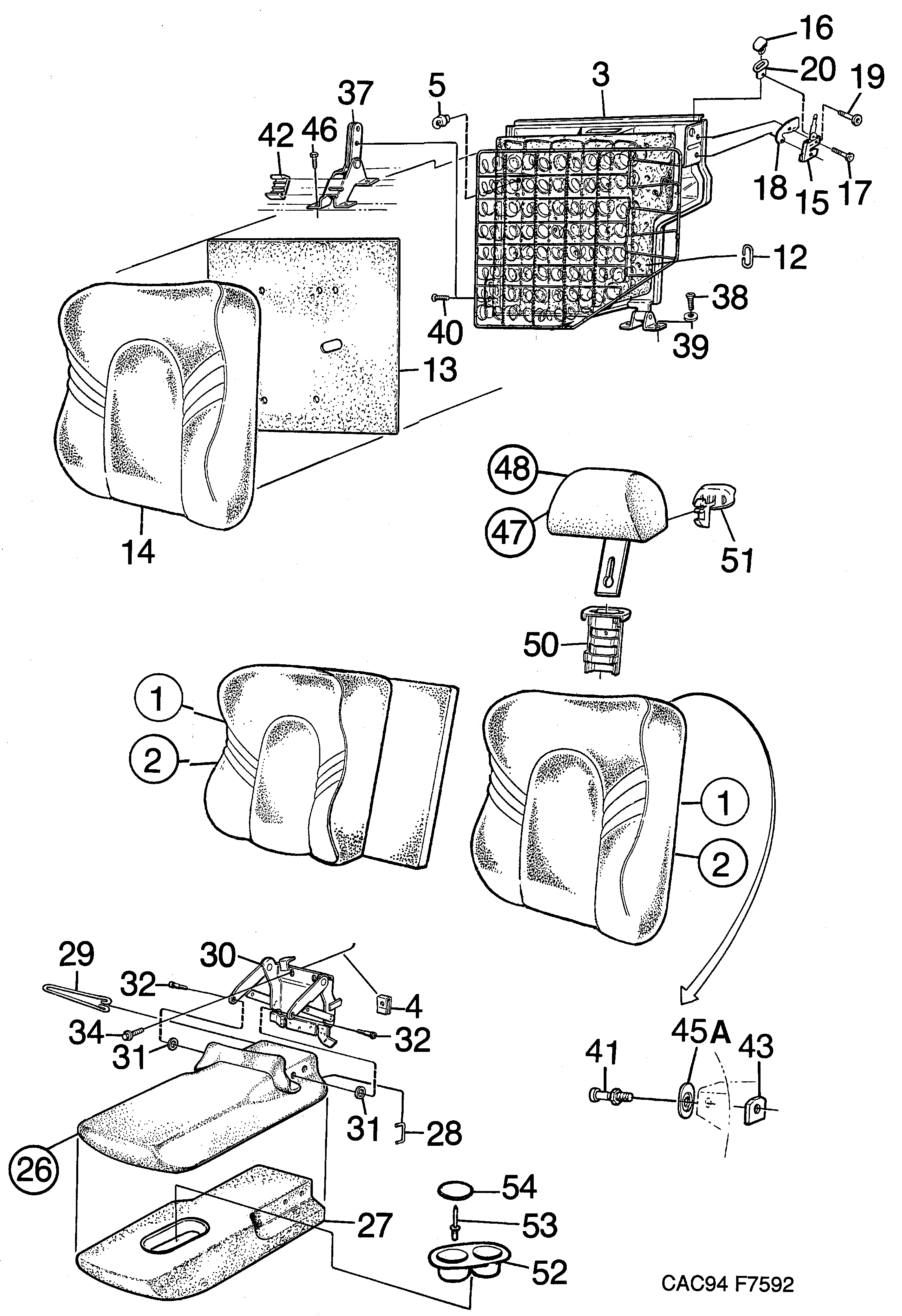

Saab 9000 Rear seat Back cushion diagram

Pos	Article	Part No.
1	Backrest cushion	9699067
1	Backrest cushion	9699034
2	Backrest cushion	4629507
2	Backrest cushion	4629515
2	Backrest cushion	4652004
3	Spring housing	30546523 (replaces 4313839)
3	Spring housing	30546522 (replaces 4313821)
4	Clip nut	92150164 (replaces 7972573)
5	Hook	9781469
6	Rivet	92153060 (replaces 7972516)
12	Clamp	9450685
13	Padding	9696691
14	Foam plastic cushion	4629366
14	Foam plastic cushion	4629358
15	Lock	4629374
15	Lock	4629382
16	Handle	9755935
17	Screw	7977028
18	Spacer	9789801
18	Spacer	9783309
19	Lock pin	4532867
20	Ferrule	4532818
26	Arm rest	9672650
26	Arm rest	4650701
27	Cushion	9781337
27	Cushion	4650719
28	Staple	8438467
29	Clamp	9445909
30	Bracket	9593948
31	Washer	8457541
32	Shoulder screw	4532529 (replaces 4055133)
32	Shoulder screw	4532529
34	Screw	7971294
37	Joint	9761974
38	Screw	11900016 (replaces 7976897)
39	Washer	92153033 (replaces 7916497)
40	Screw	7981921
41	Lock pin	30542669 (replaces 4312948)
41	Lock pin	4656005
42	Plastic buffer	9789769
43	Nut plate	9765272
43	Nut plate	4716445
45A	Washer	4288189
46	Screw	92151821 (replaces 8059552)
47	Head restraint	9699182
48	Head restraint	30546820 (replaces 4315412)
50	Sleeve	4031563
51	Latch	4136610
52	Can holder	4716304
52	Can holder	4716296
52	Can holder	4716312
53	Rivet	4716346
54	Plate	4716320
	Mounting kit	4475547
