Saab 9000 1994-1996 Rear seat Seat cushion

Group 8b Car body, internal, section 1500

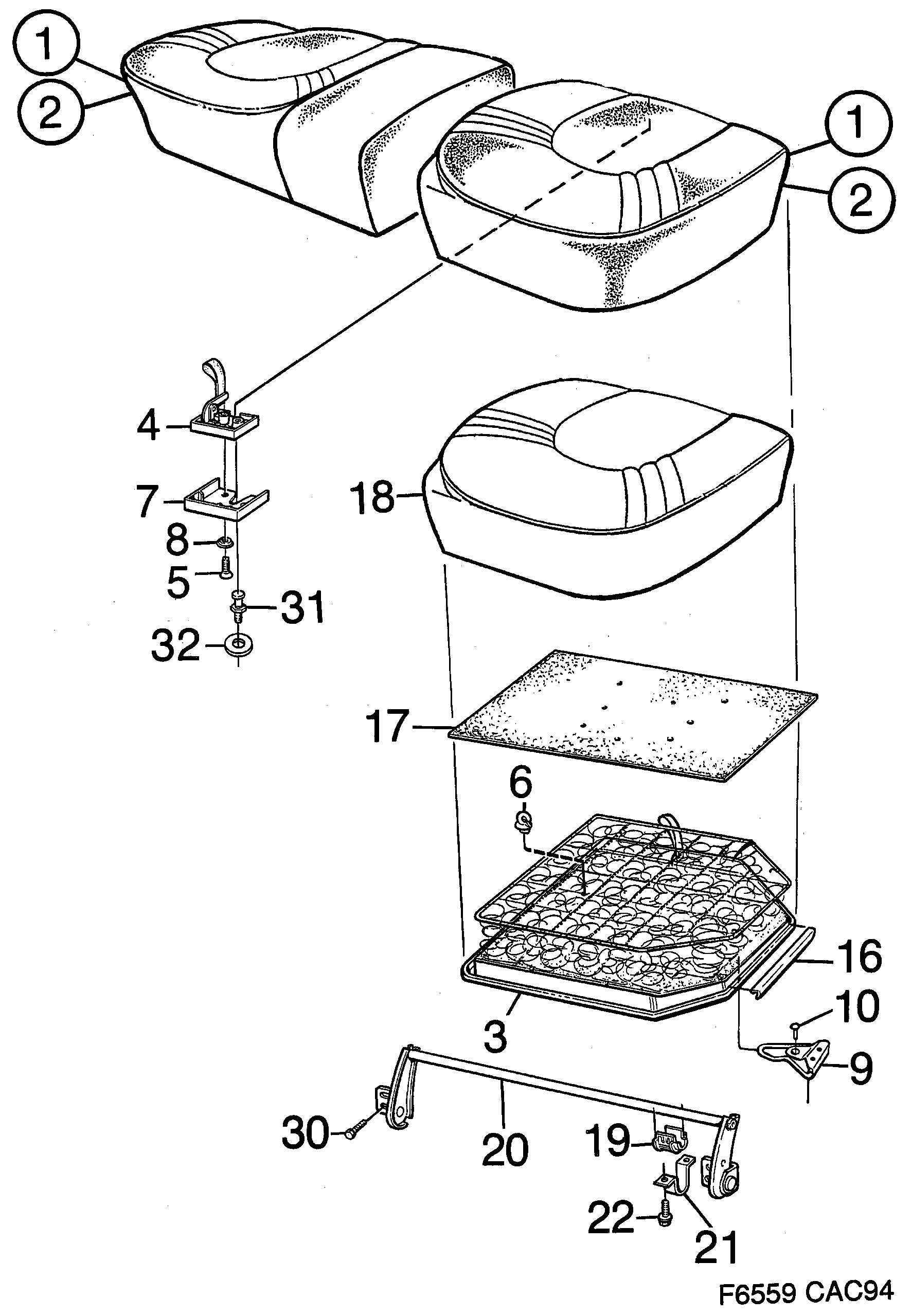

Saab 9000 Rear seat Seat cushion diagram

Pos	Article	Part No.
1	Seat cushion	9699158
1	Seat cushion	9699125
2	Seat cushion	30552786 (replaces 4315339)
2	Seat cushion	30552787 (replaces 4315347)
3	Spring housing	4315370
3	Spring housing	4315396
4	Lock	9774175
4	Lock	9774183
5	Screw	7977028
6	Hook	9781469
7	Protecting casing	9781576
7	Protecting casing	9784604
8	Washer	9787516
9	Bracket	4140059
9	Bracket	4140042
10	Rivet	92153060 (replaces 7972516)
16	Moulding	9697459
17	Padding	9696048
17	Padding	9696766
18	Foam plastic cushion	30546206 (replaces 4313888)
18	Foam plastic cushion	32000162 (replaces 4313870)
19	Bushing	4048260
20	Link arm	9663410
20	Link arm	9663402
21	Cap	4048278
22	Screw	7974397
30	Screw	8059578 (replaces 9778952)
31	Lock pin	30542669 (replaces 4312948)
31	Lock pin	4656005
32	Washer	8311904
	Mounting kit	4475539
