Saab 9000 1985-1989 Equipment luggage compartment

Group 8b Car body, internal, section 1450

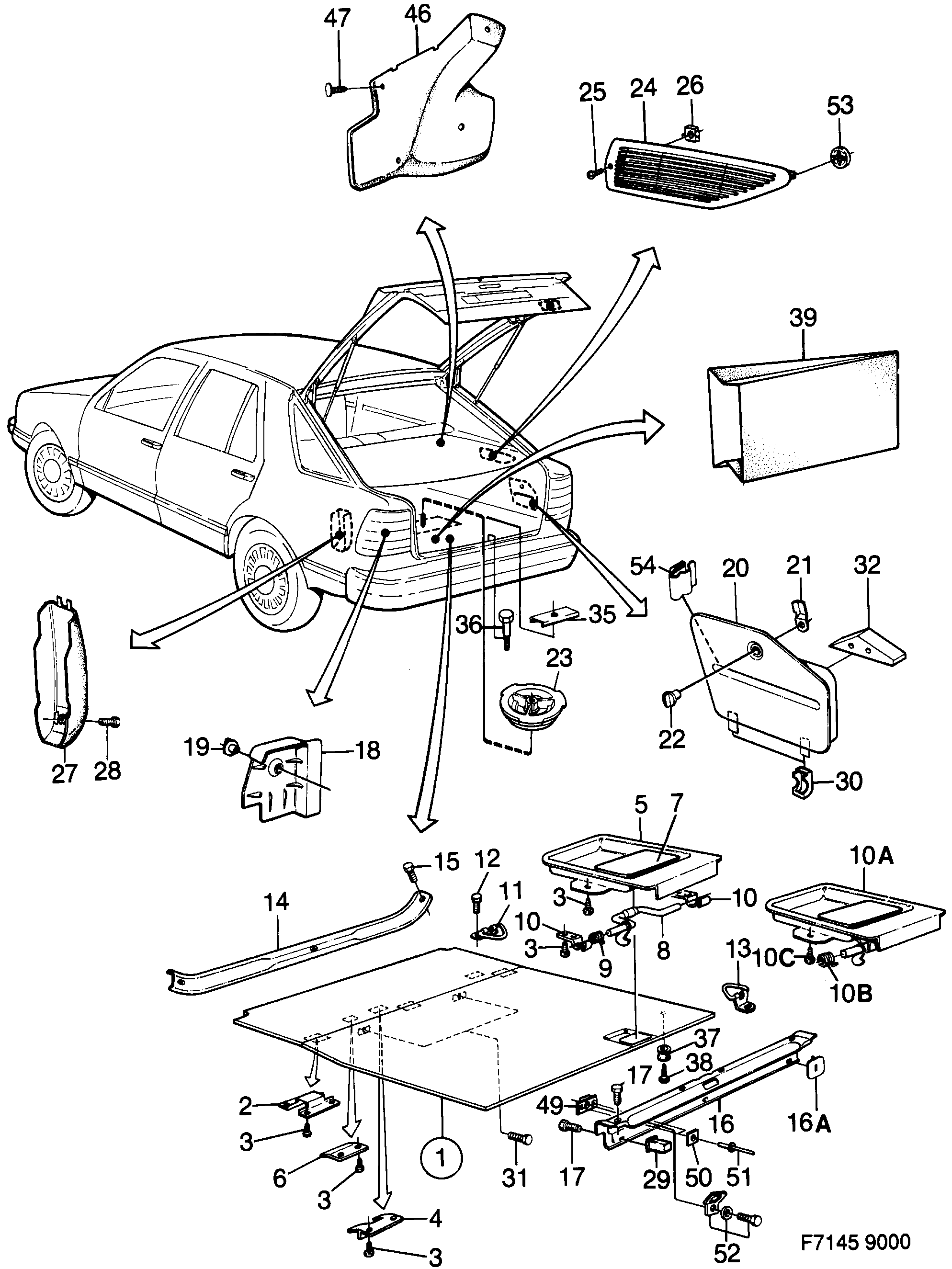

Saab 9000 Equipment luggage compartment diagram

Pos	Article	Part No.
1	Floor	9575630
2	Hinge	9764853
2	Hinge	9790981
3	Screw	9775230
4	Plate	9778317
5	Cover	9774266
6	Clamp	9778309
7	Handle	9782509
8	Brace	9774258
9	Spring	9774282
10	Bracket	9782228
10A	Lock	9657123
10C	Screw	8059248
11	Eye	9774217
12	Screw	7922420
13	Eye	9777749
14	Cover	9765215
14	Cover	9574468
15	Screw	8441503
16	Sill protection	9754847
16	Sill protection	4141636
16	Sill protection	9545450
16	Sill protection	9656968
16A	Plug	9658618
17	Screw	9771320
20	Tool box	4499778 (replaces 9548108)
21	Latch	9767799
22	Knob	9767781
23	Knob	12791335 (replaces 9774290)
24	Grille	9571043
24	Grille	9784752
24	Grille	4141628 (replaces 9545443)
25	Screw	7971500
25	Screw	7977960
25	Quick fastener	9491689
26	Clip nut	8601916
26	Clip	8238305
26	Quick nut	8452898
27	Cover	9767971
27	Cover	9788605
27	Cover	9545351
28	Screw	8426199
29	Press nut	7977358
30	Cover	9795717
31	Screw	92153219 (replaces 7922354)
31	Screw	92151992 (replaces 7972938)
32	Holder	9661877
35	Washer	9733338
36	Screw	5334750 (replaces 9661018)
37	Knob	9794264
39	Bag	9459728
46	Protection	9576513
46	Protection	9576505
47	Clip	92152407 (replaces 9668153)
49	Nut plate	9653502
49	Nut plate	9583790
50	Washer	9230293
51	Rivet	92153058 (replaces 7972490)
52	Attaching washer	4657094 (replaces 9593542)
52	Attaching washer	9593534
53	Washer	4128195 (replaces 9545427)
54	Clamp	9548355
