Saab 9000 1994-1998 Front seats Part 3 Electrically adjustable

Group 8b Car body, internal, section 1410

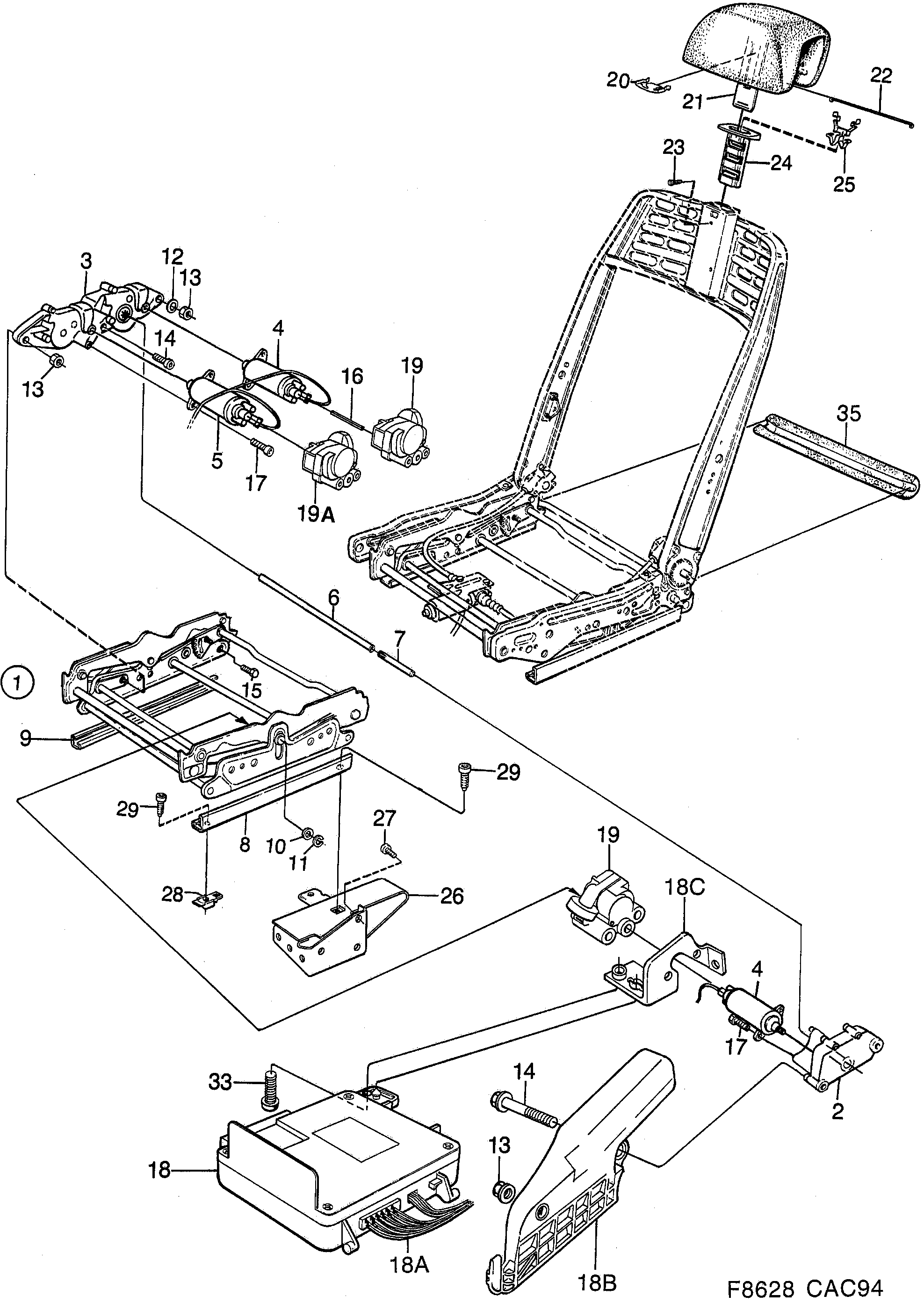

Saab 9000 Front seats Part 3 Electrically adjustable diagram

Pos	Article	Part No.
1	Seat frame	32000160 (replaces 4312625)
1	Seat frame	4415279
1	Seat frame	4653713
2	Gear	9695321
3	Gear	9695354
4	Electrical motor	4054078
5	Electrical motor	4054086
6	Shaft	9579772
7	Shaft	9579780
8	Rail	4133153
9	Rail	4133161
10	Washer	9586165
11	Retaining ring	9586173
12	Spacer washer	9579764
13	Nut	9586132
14	Screw	8059396 (replaces 9586157)
15	Screw	9586181
16	Shaft	4416350
17	Screw	9586207
18	Electronic unit	30550993 (replaces 4415287)
18	Electronic unit	4653705
18B	Anchorage	4132866
18C	Quick attachment	4132874
19	Potentiometer	4111001
19A	Potentiometer	4111506
20	Clamp	9545104
21	Head restraint	4123386
21	Head restraint	30546817 (replaces 4315305)
22	Wire rod	9459868
23	Screw	7922396
24	Sleeve	4031563
25	Locking spring	9796848
26	Bracket	4256756
26	Bracket	4256749
27	Screw	7974884
28	Cage nut	7975766
29	Screw	4134003
33	Screw	9835737
35	Protection	9792391
