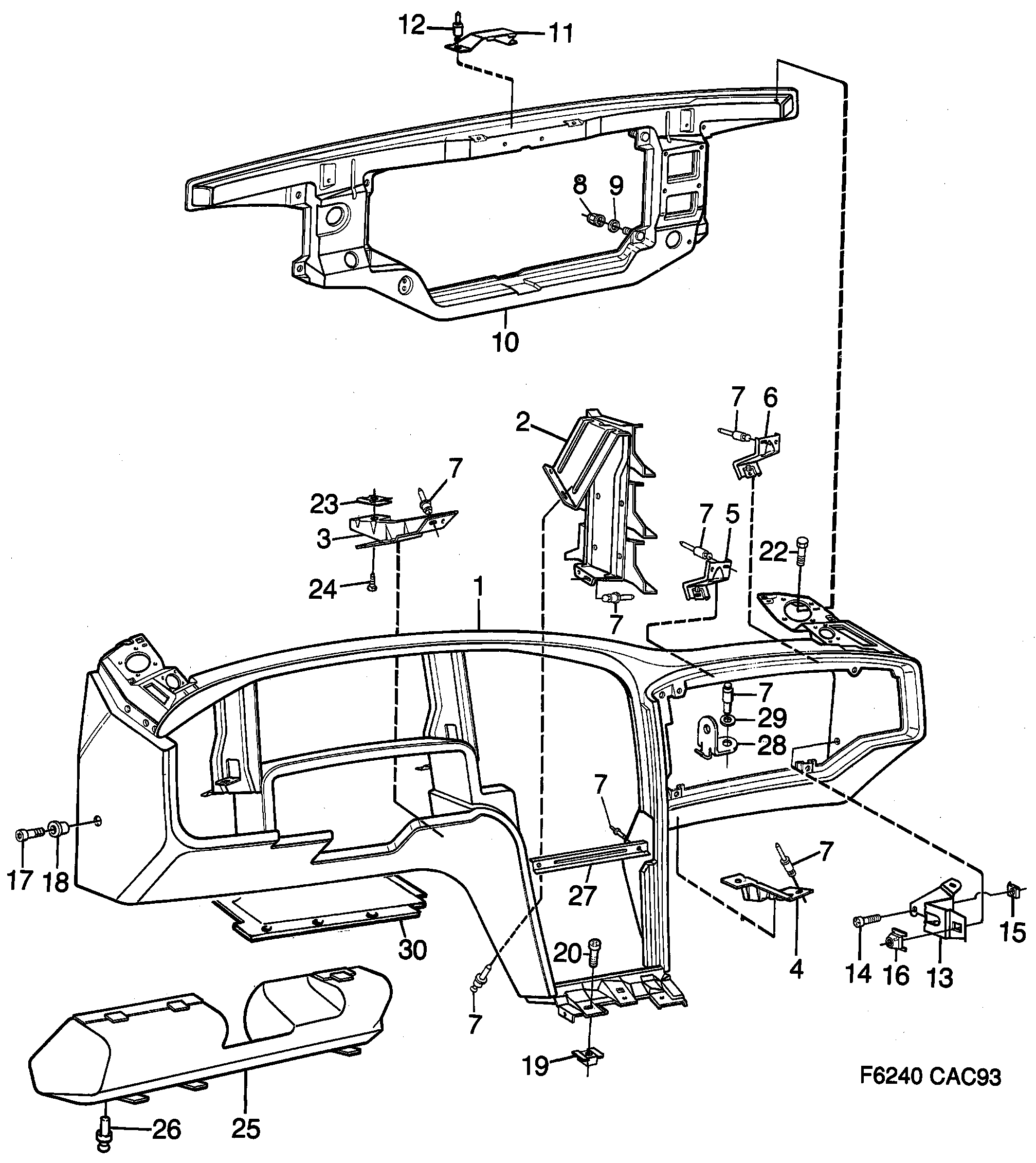

Group 8b Car body, internal, section 140
| Pos | Article | Part No. |
|---|---|---|
| 1 | Panel | 4609459 (replaces 4081329) |
| 1 | Panel | 9547589 |
| 1 | Panel | 9547605 |
| 1 | Panel | 9547613 |
| 1 | Panel | 4609442 (replaces 9547639) |
| 1 | Panel | 4609483 (replaces 4436333) |
| 1 | Panel | 4436317 |
| 1 | Panel | 4436325 |
| 1 | Panel | 4609475 (replaces 4079604) |
| 2 | Guide rail | 9691189 |
| 2 | Guide rail | 9691197 |
| 3 | Bracket | 9755117 |
| 3 | Bracket | 9767302 |
| 4 | Bracket | 9755125 |
| 4 | Bracket | 9767294 |
| 5 | Bracket | 9767526 |
| 5 | Bracket | 9671355 |
| 6 | Bracket | 9767534 |
| 6 | Bracket | 9671363 |
| 7 | Rivet | 32000288 (replaces 7977804) |
| 8 | Nut | 7979602 |
| 9 | Sealing washer | 8929531 |
| 10 | Carrier | 4077079 |
| 10 | Carrier | 4519302 (replaces 4077087) |
| 11 | Bracket | 9761941 |
| 12 | Rivet | 7968845 |
| 13 | Bracket | 9663022 |
| 13 | Bracket | 9663030 |
| 14 | Screw | 8059396 |
| 15 | Cage nut | 7974231 |
| 16 | Clip nut | 92151849 (replaces 7975071) |
| 17 | Screw | 7972128 |
| 18 | Cover | 4082731 |
| 18 | Cover | 9676263 |
| 18 | Cover | 9676354 |
| 18 | Cover | 9582651 |
| 18 | Cover | 9676305 |
| 19 | Clip nut | 7399215 |
| 20 | Screw | 7922974 |
| 20 | Screw | 7922503 |
| 22 | Screw | 7972466 |
| 24 | Screw | 7922818 |
| 25 | Knee pad | 30542538 (replaces 4032181) |
| 25 | Knee pad | 30542538 (replaces 4312906) |
| 26 | Rivet | 9220880 |
| 27 | Reinforcement | 9678533 |
| 27 | Reinforcement | 9679937 |
| 28 | Attaching bracket | 9678442 |
| 29 | Washer | 32000431 (replaces 8029936) |
| 29 | Washer | 32000431 (replaces 9166356) |
