Saab 9000 1985-1989 Rear seat Seat cushion

Group 8b Car body, internal, section 1330

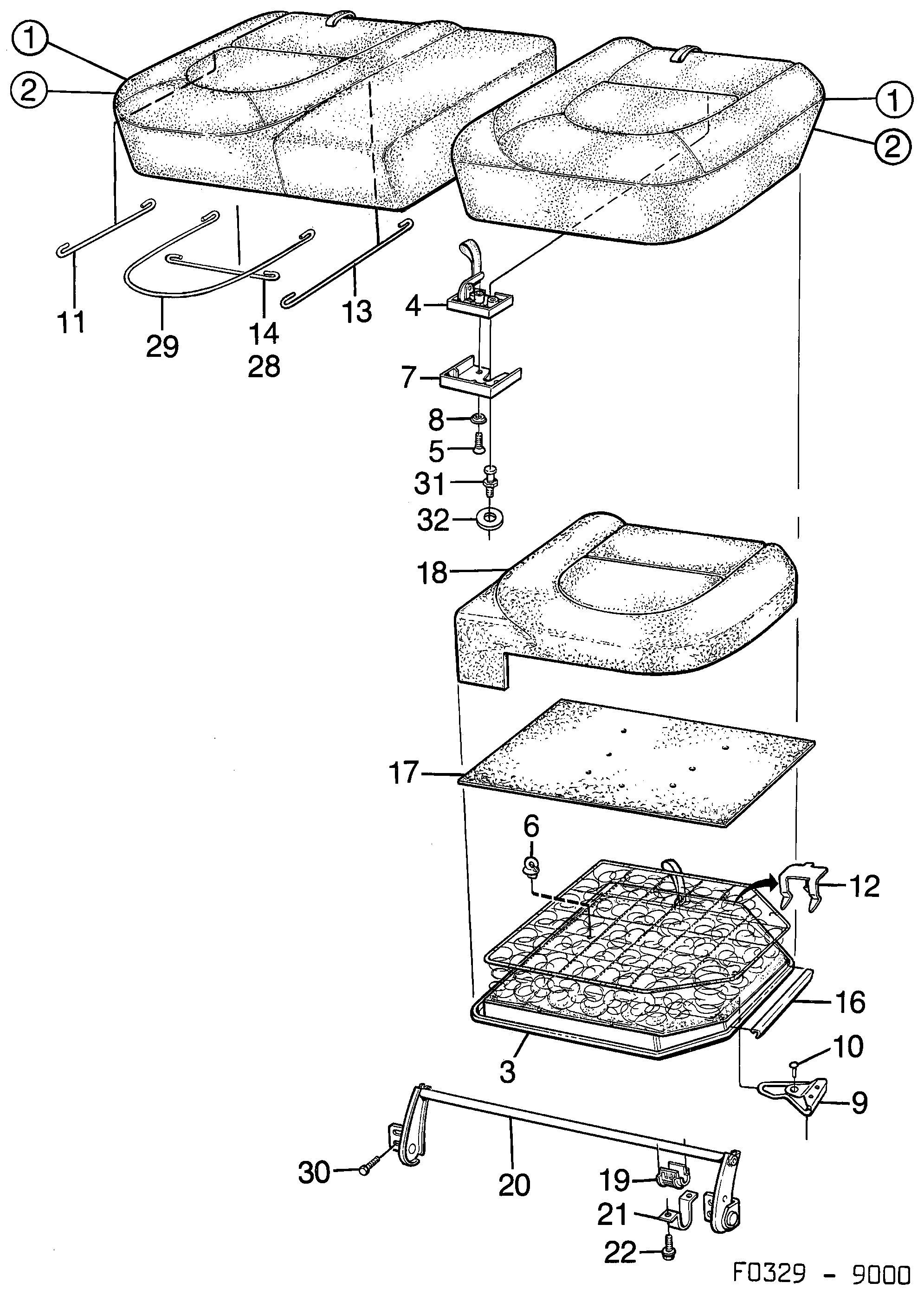

Saab 9000 Rear seat Seat cushion diagram

Pos	Article	Part No.
1	Seat cushion	9751728
1	Seat cushion	9782103
1	Seat cushion	9699158
1	Seat cushion	9699166
1	Seat cushion	9699174
1	Seat cushion	9751710
1	Seat cushion	9782095
1	Seat cushion	9699125
1	Seat cushion	9699133
1	Seat cushion	9699141
2	Seat cushion	9672619
2	Seat cushion	9696675
2	Seat cushion	9672627
2	Seat cushion	9696667
3	Spring housing	9752239
3	Spring housing	9661794
3	Spring housing	4288429 (replaces 9696030)
3	Spring housing	9752007
3	Spring housing	9661778
3	Spring housing	4288411 (replaces 9696758)
4	Lock	9774175
4	Lock	9774183
5	Screw	7977028
6	Hook	9781469
7	Protecting casing	9781576
7	Protecting casing	9784604
8	Washer	9787516
9	Bracket	9771296
9	Bracket	9789751
10	Rivet	92153060 (replaces 7972516)
11	Wire rod	9584749
12	Clamp	9673831
13	Wire rod	9693094
14	Wire rod	9721499
16	Moulding	9697459
17	Padding	9696048 (replaces 9761859)
17	Padding	9761842
17	Padding	9696048
17	Padding	9696766
18	Foam plastic cushion	9795220
18	Foam plastic cushion	9691353
18	Foam plastic cushion	9584640
18	Foam plastic cushion	9795212
18	Foam plastic cushion	9691361
18	Foam plastic cushion	9584665
19	Bushing	9719808
19	Bushing	4048260
20	Link arm	9663410
20	Link arm	9663402
21	Cap	9719790
21	Cap	4048278
22	Screw	7974397
28	Wire rod	9828658
29	Wire rod	9787532
30	Screw	8059578 (replaces 9778952)
31	Lock pin	30542669 (replaces 9751249)
31	Lock pin	30542669 (replaces 9671025)
32	Washer	8311904
	Clamp kit	9746736
	Mounting kit	9672668
