Saab 9000 1990-1993 Equipment luggage compartment

Group 8b Car body, internal, section 1310

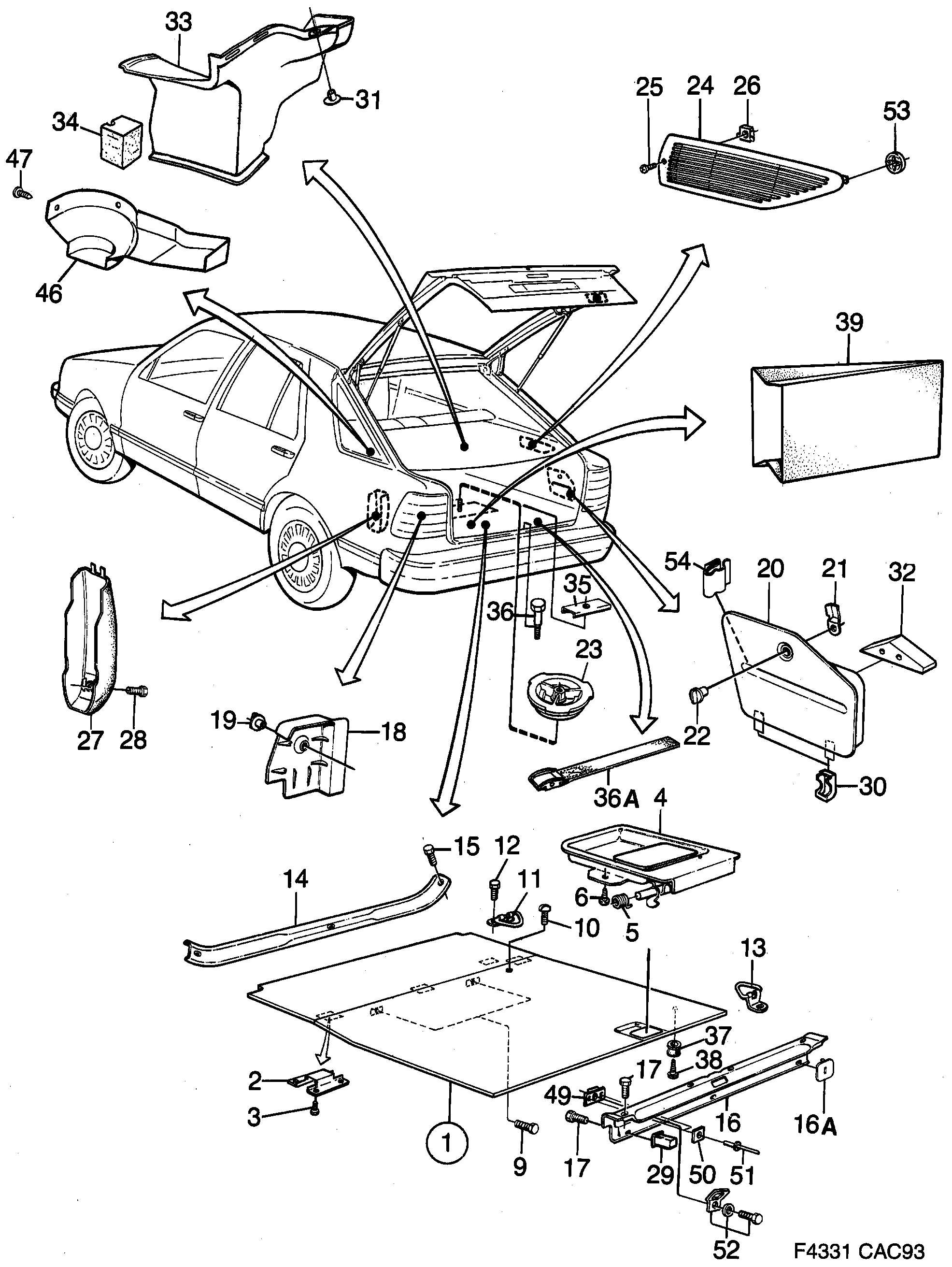

Saab 9000 Equipment luggage compartment diagram

Pos	Article	Part No.
1	Floor	9575630
1	Load floor	4267654 (replaces 9089285)
1	Load floor	4267654
1	Load floor	4136180
1	Load floor	4267662
2	Hinge	9764853
2	Hinge	9790981
3	Screw	9775230
4	Lock	9657123
5	Spring	9774282
6	Screw	8059248
9	Screw	92151992 (replaces 7972938)
10	Screw	9771320
11	Eye	9774217
12	Screw	7922420
13	Eye	9777749
14	Cover	9574468
14	Cover	4031696
15	Screw	8441503
16	Sill protection	9754847
16	Sill protection	9545450
16	Sill protection	9656968
16	Sill protection	4258596
16	Sill protection	4141636
16	Sill protection	4271235
16A	Plug	9658618
20	Tool box	4499778 (replaces 9548108)
20	Tool box	4499778 (replaces 4270005)
20	Tool box	4499778
21	Latch	9767799
22	Knob	9767781
23	Knob	12791335 (replaces 9774290)
24	Grille	9571043
24	Grille	4141958
24	Grille	4141628 (replaces 9545443)
24	Grille	4141628
25	Screw	7977960
26	Clip	8238305
27	Cover	9767971
27	Cover	9545351
28	Screw	8426199
29	Press nut	7977358
30	Cover	9795717
31	Push nut	4087029
32	Holder	9661877
33	Cover	4267761
34	Support	4267704
35	Washer	9733338
36	Screw	5334750 (replaces 9661018)
36A	Strap	5334750 (replaces 4141784)
37	Knob	9794264
39	Bag	9459728
46	Protection	9576513
46	Protection	9576505
46	Protection	4032090
46	Protection	4268447
46	Protection	4032108
47	Clip	92152407 (replaces 9668153)
49	Nut plate	9653502
49	Nut plate	9583790
50	Washer	9230293
51	Rivet	92153058 (replaces 7972490)
52	Attaching washer	4657094 (replaces 9593542)
52	Attaching washer	9593534
53	Lock washer	4128195
54	Clamp	9548355
