Saab 9000 1989-1989 Front seats Part 3 Electrically adjust

Group 8b Car body, internal, section 1300

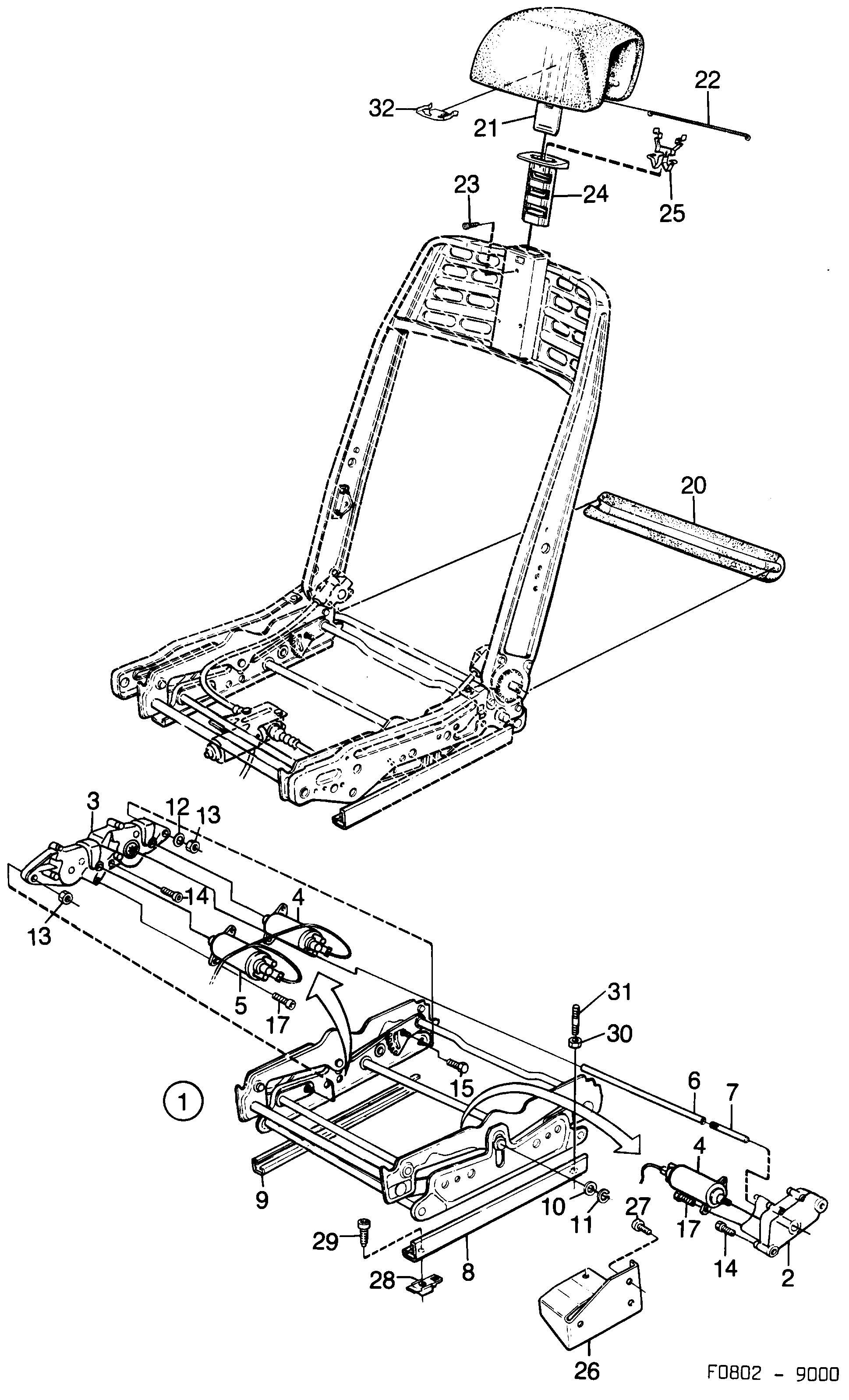

Saab 9000 Front seats Part 3 Electrically adjust diagram

Pos	Article	Part No.
1	Seat frame	32000160 (replaces 9695248)
2	Gear	9695321
3	Gear	9695354
4	Electrical motor	4054078 (replaces 9695347)
5	Electrical motor	9579798
6	Shaft	9579772
7	Shaft	9579780
8	Rail	9695305
9	Rail	9695313
10	Washer	9586165
11	Retaining ring	9586173
12	Spacer washer	9579764
13	Nut	9586132
14	Screw	8059396 (replaces 9586157)
15	Screw	9586181
17	Screw	9586207
20	Protection	9792391
21	Head restraint	9547688
22	Wire rod	9459868
23	Screw	7922396
24	Sleeve	9571696
24	Sleeve	4031563
25	Locking spring	9796848
26	Bracket	9781162
26	Bracket	9782210
27	Screw	7974884
28	Cage nut	7975766
29	Screw	9585423
30	Nut	4134003 (replaces 7979479)
31	Stud	4134003 (replaces 9585431)
32	Clamp	9545104
