Saab 9000 1989-1989 Front seats Part 2 Electrically adjust

Group 8b Car body, internal, section 1270

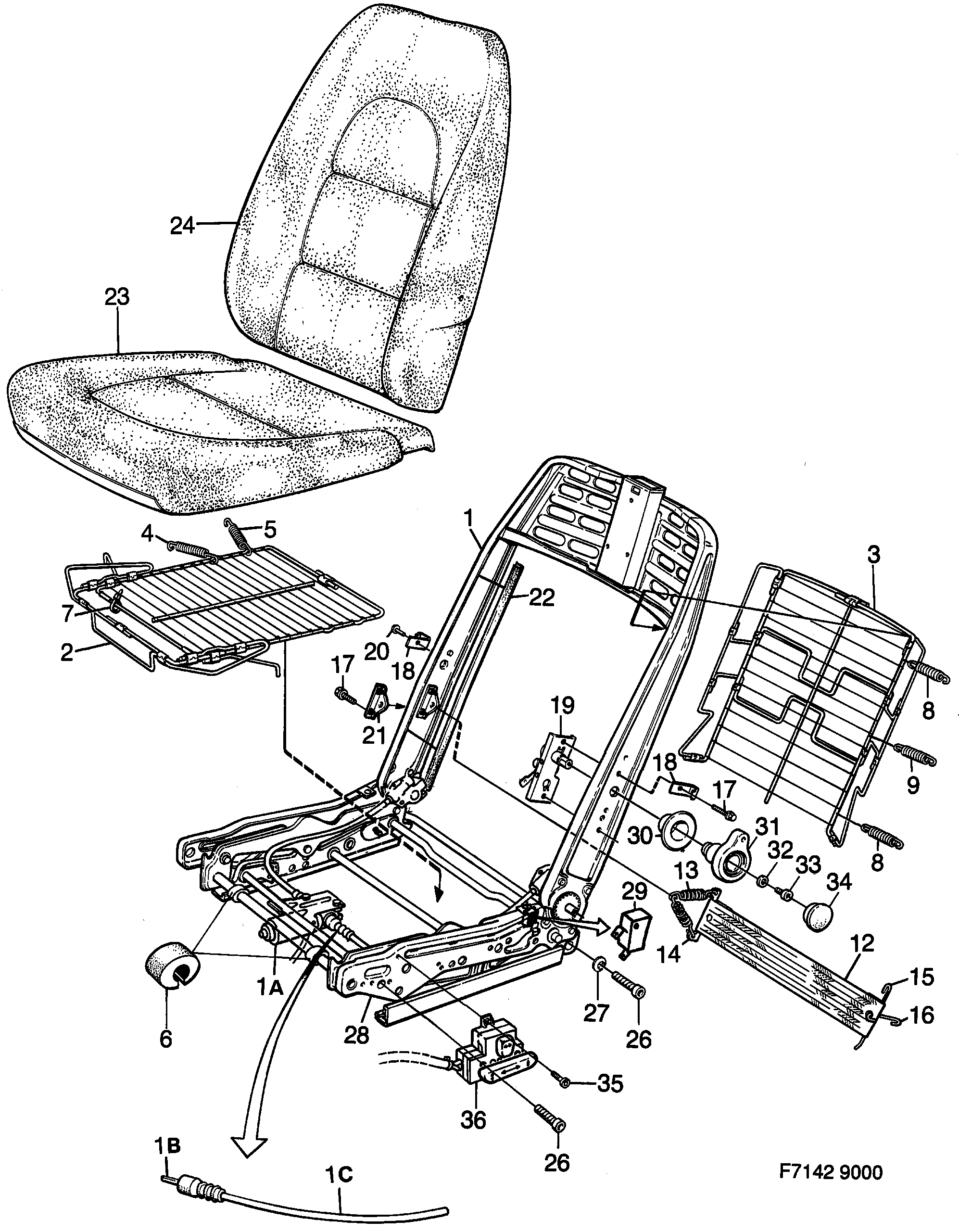

Saab 9000 Front seats Part 2 Electrically adjust diagram

Pos	Article	Part No.
1	Seat frame	4131751 (replaces 9592155)
1A	Electrical motor	9695768
1B	Drive shaft	9579715
1B	Drive shaft	9542317
1C	Cover	4126355 (replaces 9542309)
2	Wire matting	4032934
3	Wire matting	9697525
4	Spring	9673146
5	Spring	9673435
6	Rubber spacer	4033486
7	Tie strap	7971872
8	Spring	9759069
9	Spring	9759077
12	Strip	9770918
13	Spring	9579293
14	Brace	4531059 (replaces 9770942)
15	Brace	4531059 (replaces 9770926)
16	Hook	9770934
17	Screw	7974330
18	Brace	9778895
19	Control	9617325
19	Control	9617333
20	Rivet	7975402
21	Bracket	9864349
22	Protecting moulding	9671835
23	Seat cushion	4416525 (replaces 9696618)
23	Seat cushion	9677014
24	Backrest cushion	30545238 (replaces 9696600)
24	Backrest cushion	9758715
26	Screw	7576580
27	Washer	9547381
29	Microswitch	4036299
30	Cover washer	9785015
31	Steering wheel	9763632
32	Washer	8029944
33	Screw	8059396
34	Cover	9763624
35	Screw	92153219 (replaces 7922354)
36	Switch	9564980
36	Switch	9566993
