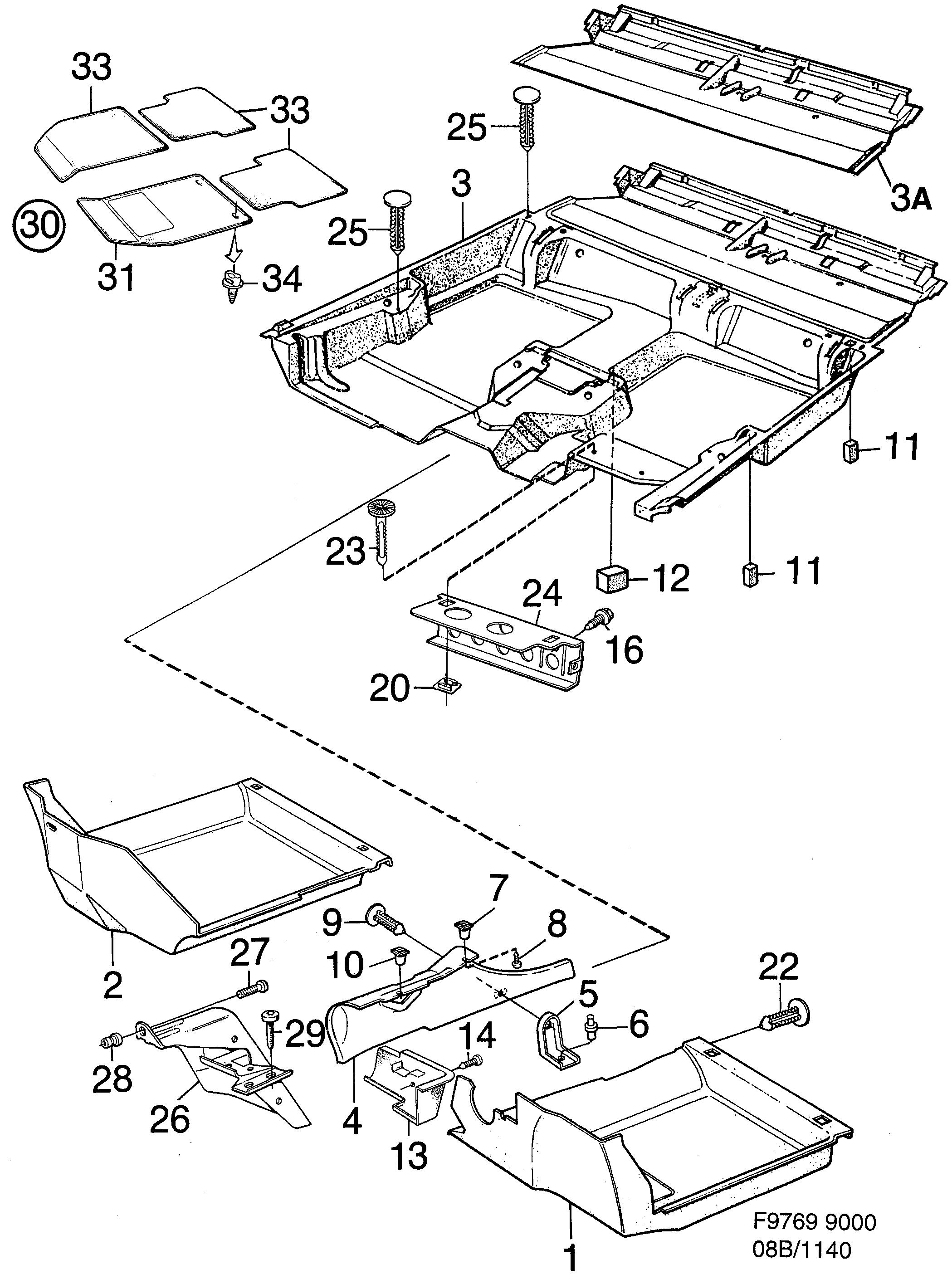

Group 8b Car body, internal, section 1140
| Pos | Article | Part No. |
|---|---|---|
| 1 | Carpet | 4822599 (replaces 4261244) |
| 2 | Carpet | 4499786 |
| 1 | Carpet | 4510301 |
| 2 | Carpet | 4822615 (replaces 4261285) |
| 3 | Carpet | 4902987 (replaces 4608410) |
| 3A | Carpet | 4903001 |
| 4 | Carpet | 4261277 |
| 4 | Carpet | 4708475 |
| 4 | Carpet | 4708533 |
| 4 | Carpet | 4261301 |
| 1 | Carpet | 4264644 |
| 2 | Carpet | 4499794 |
| 1 | Carpet | 4510285 |
| 2 | Carpet | 4822607 (replaces 4264651) |
| 3 | Carpet | 4902995 (replaces 4608394) |
| 3A | Carpet | 4903019 |
| 4 | Carpet | 9690629 |
| 4 | Carpet | 4708467 |
| 4 | Carpet | 4708525 |
| 4 | Carpet | 9690777 |
| 5 | Bracket | 9663345 |
| 5 | Bracket | 9663352 |
| 6 | Rivet | 9849514 |
| 7 | Press nut | 7977358 |
| 8 | Screw | 9771320 |
| 9 | Clip | 4260824 |
| 9 | Clip | 92152407 (replaces 9668153) |
| 10 | Press nut | 7977341 |
| 11 | Spacer | 9897919 |
| 12 | Spacer | 9897901 |
| 13 | Cover | 4511564 |
| 13 | Cover | 4511572 |
| 14 | Quick fastener | 9491689 |
| 16 | Screw | 11900353 (replaces 7978091) |
| 20 | Quick nut | 8452898 |
| 24 | Carpet retainer | 4160628 |
| 26 | Foot rest | 4272217 |
| 27 | Screw | 7977283 |
| 28 | Nut | 7398936 |
| 29 | Screw | 7977366 |
| 30 | Mat set | 4274957 |
| 30 | Mat set | 4485041 |
| 30 | Mat set | 4485074 |
| 30 | Mat set | 4485108 |
| 31 | Carpet | 4274965 |
| 31 | Carpet | 4485009 |
| 31 | Carpet | 400109476 (replaces 4485090) |
| 31 | Carpet | 400109435 (replaces 4485124) |
| 34 | Bracket | 4269932 |
