Saab 9000 1990-1993 Front seats Part 2 Electrically adjustable

Group 8b Car body, internal, section 1130

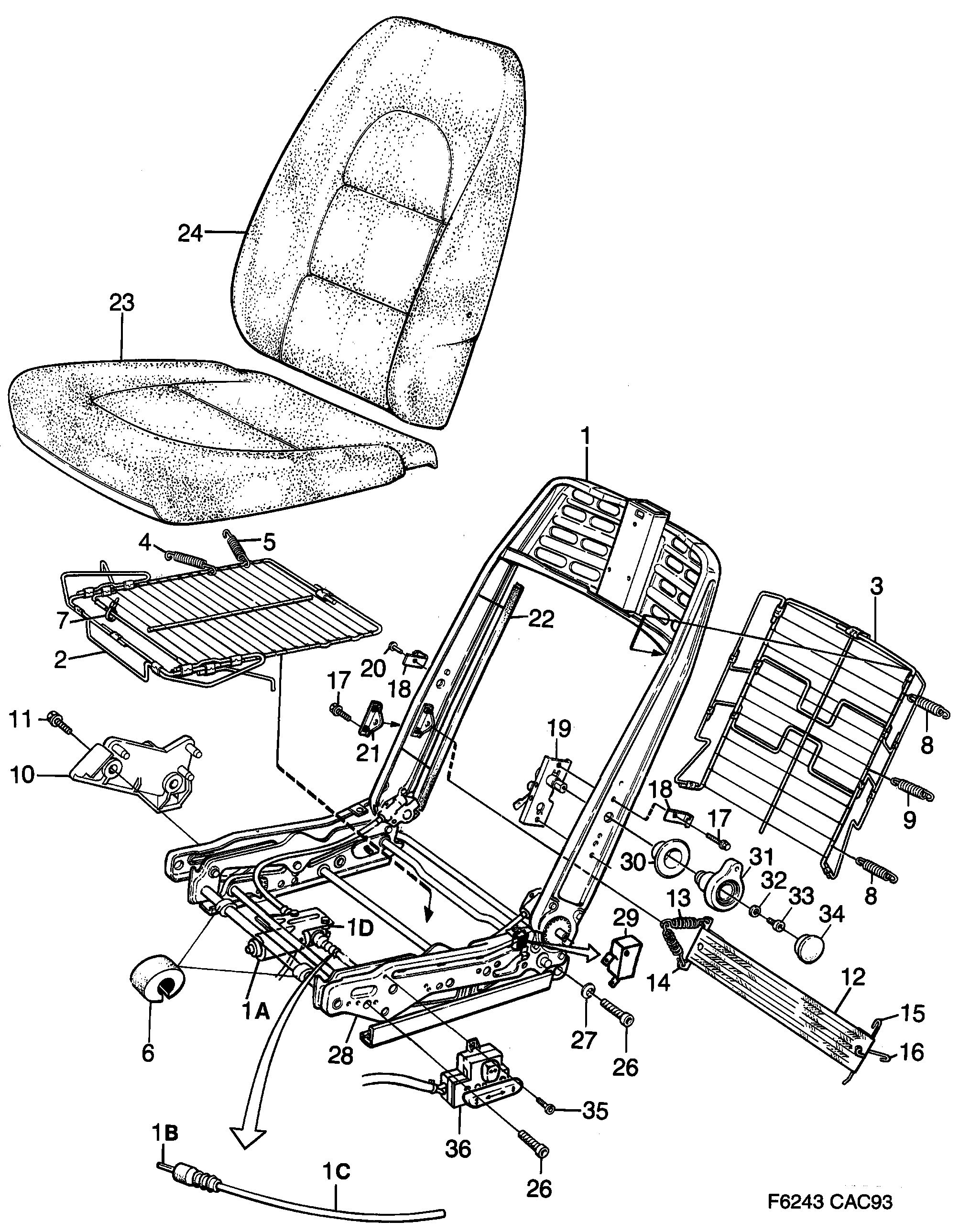

Saab 9000 Front seats Part 2 Electrically adjustable diagram

Pos	Article	Part No.
1	Seat frame	4131751 (replaces 9592155)
1	Seat frame	4131751
1	Seat frame	4045704
1	Seat frame	32000161 (replaces 4313748)
1	Seat frame	32000163 (replaces 4313987)
1A	Electrical motor	9695768
1B	Drive shaft	9579715
1B	Drive shaft	4126330
1B	Drive shaft	9542317
1C	Cover	4126355 (replaces 9542309)
1C	Cover	4126355
1C	Cover	4126348
1D	Potentiometer	4110995
2	Wire matting	4032934
3	Wire matting	9697525
4	Spring	9673146
5	Spring	9673435
6	Rubber spacer	4033486
7	Tie strap	7971872
8	Spring	9759069
9	Spring	9759077
10	Support	4142832
10	Support	4142824
11	Screw	92153219 (replaces 7922354)
12	Strip	9770918
13	Spring	9579293
14	Brace	4531059 (replaces 9770942)
15	Brace	4531059 (replaces 9770926)
16	Hook	9770934
17	Screw	7974330
18	Brace	9778895
19	Control	9617325
19	Control	9617333
20	Rivet	7975402
20	Rivet	92153060 (replaces 7972516)
21	Bracket	9864349
22	Protecting moulding	9671835
23	Seat cushion	4416525 (replaces 9696618)
23	Seat cushion	4416525
23	Seat cushion	9677014
23	Seat cushion	30546201 (replaces 4313797)
24	Backrest cushion	30545238 (replaces 9696600)
24	Backrest cushion	30545238 (replaces 4292934)
24	Backrest cushion	9758715
24	Backrest cushion	30546202 (replaces 4313805)
26	Screw	7576580
26	Screw	90511048 (replaces 8059826)
27	Washer	9547381
29	Microswitch	4036299
30	Cover washer	9785015
31	Steering wheel	9763632
32	Washer	8029944
33	Screw	8059396
34	Cover	9763624
36	Switch	9564980
36	Switch	9566993
36	Switch	4117081
36	Switch	4117073
36	Switch	4108015
36	Switch	4108007
