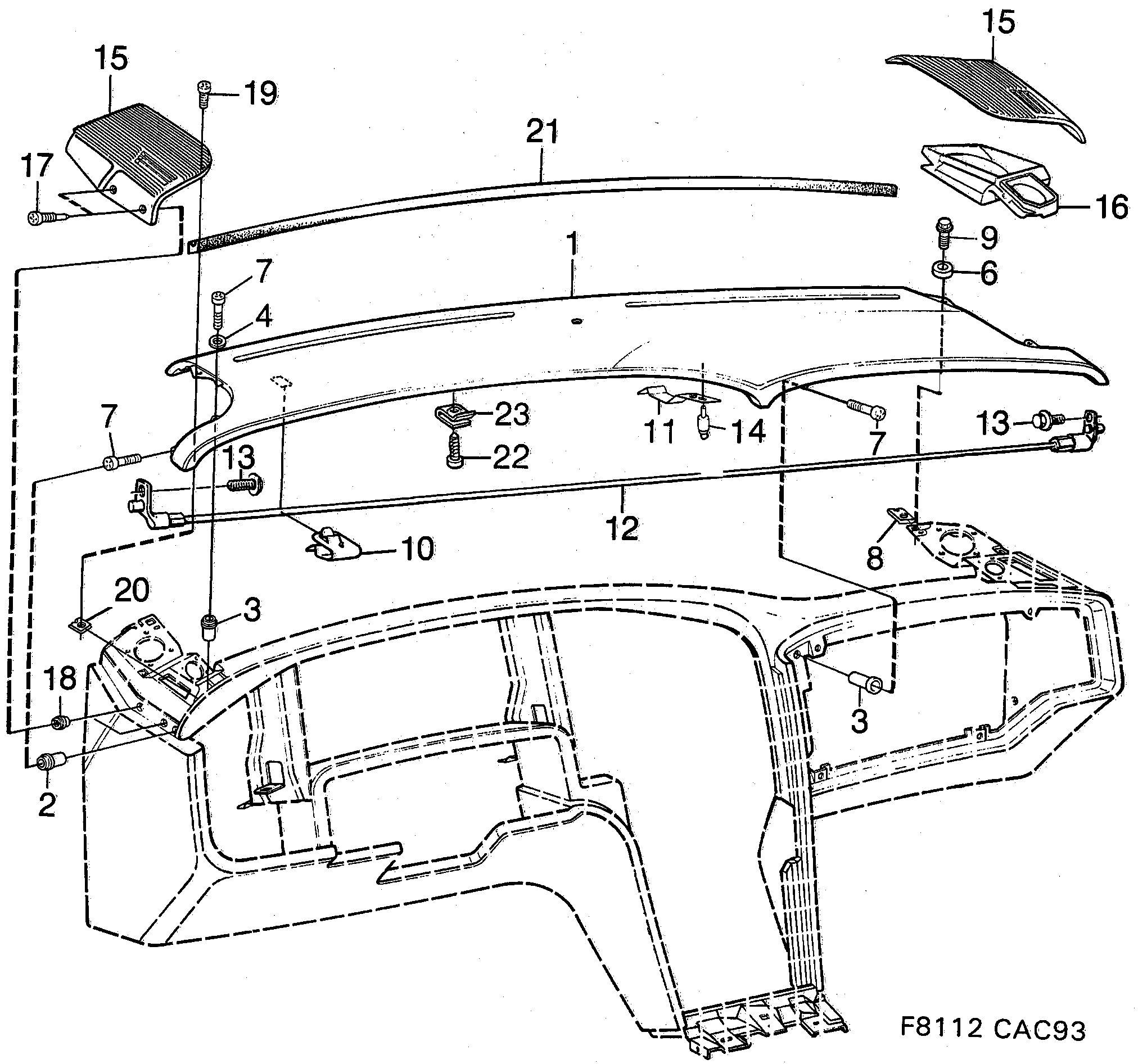

Group 8b Car body, internal, section 110
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cover | 4082756 |
| 1 | Cover | 4082749 |
| 1 | Cover | 4037222 |
| 1 | Cover | 4051736 |
| 1 | Cover | 4080206 |
| 1 | Cover | 4080156 |
| 1 | Cover | 4037248 |
| 1 | Cover | 4051751 |
| 1 | Cover | 4080222 |
| 1 | Cover | 4080172 |
| 1 | Cover | 4037255 |
| 1 | Cover | 4051769 |
| 1 | Cover | 4080230 |
| 1 | Cover | 4080180 |
| 1 | Cover | 4080214 (replaces 4037263) |
| 1 | Cover | 4080164 (replaces 4051744) |
| 1 | Cover | 4080214 |
| 1 | Cover | 4080164 |
| 1 | Cover | 4436366 |
| 1 | Cover | 4436390 |
| 1 | Cover | 4436341 |
| 1 | Cover | 4436374 |
| 1 | Cover | 4436358 |
| 1 | Cover | 4436382 |
| 1 | Cover | 4080248 (replaces 4037313) |
| 1 | Cover | 4051793 |
| 1 | Cover | 4080248 |
| 1 | Cover | 4080198 |
| 2 | Blind rivet nut | 7399579 |
| 3 | Blind rivet nut | 9759846 |
| 4 | Washer | 7045776 |
| 6 | Spacer | 7554215 |
| 7 | Screw | 7972193 |
| 8 | Clip nut | 92150164 (replaces 7972573) |
| 9 | Screw | 7973126 |
| 9 | Screw | 92153149 (replaces 7977465) |
| 10 | Clamp | 4086419 (replaces 4032017) |
| 10 | Clamp | 4086419 |
| 11 | Spring | 4035093 |
| 12 | Cable | 4030003 |
| 13 | Screw | 92152142 (replaces 7975212) |
| 14 | Rivet | 32000288 (replaces 7977804) |
| 15 | Grille, loudspeaker | 4083432 |
| 15 | Grille, loudspeaker | 4083457 |
| 15 | Grille, loudspeaker | 4041133 |
| 15 | Grille, loudspeaker | 4041323 |
| 15 | Grille, loudspeaker | 4041174 |
| 15 | Grille, loudspeaker | 4041349 |
| 15 | Grille, loudspeaker | 4041190 |
| 15 | Grille, loudspeaker | 4041356 |
| 15 | Grille, loudspeaker | 4041158 |
| 15 | Grille, loudspeaker | 4041331 |
| 15 | Grille, loudspeaker | 4041257 |
| 15 | Grille, loudspeaker | 4436507 |
| 15 | Grille, loudspeaker | 4436481 |
| 15 | Grille, loudspeaker | 4436465 |
| 15 | Grille, loudspeaker | 4083440 |
| 15 | Grille, loudspeaker | 4041141 |
| 15 | Grille, loudspeaker | 4041182 |
| 15 | Grille, loudspeaker | 4041208 |
| 15 | Grille, loudspeaker | 4041166 |
| 15 | Grille, loudspeaker | 4041265 |
| 15 | Grille, loudspeaker | 4436515 |
| 15 | Grille, loudspeaker | 4436499 |
| 15 | Grille, loudspeaker | 4436473 |
| 16 | Sealing collar | 4032058 |
| 16 | Sealing collar | 4032074 |
| 16 | Sealing collar | 4032041 |
| 16 | Sealing collar | 4032066 |
| 17 | Screw | 7968084 (replaces 7977648) |
| 18 | Clip nut | 7935703 |
| 19 | Screw | 7975535 |
| 20 | Clip nut | 7972771 |
| 21 | Felt strip | 9545534 |
| 22 | Screw | 7965353 |
| 23 | Clip nut | 7977317 |
