Saab 9000 1985-1987 Front seats Part 2 Manuel

Group 8b Car body, internal, section 1090

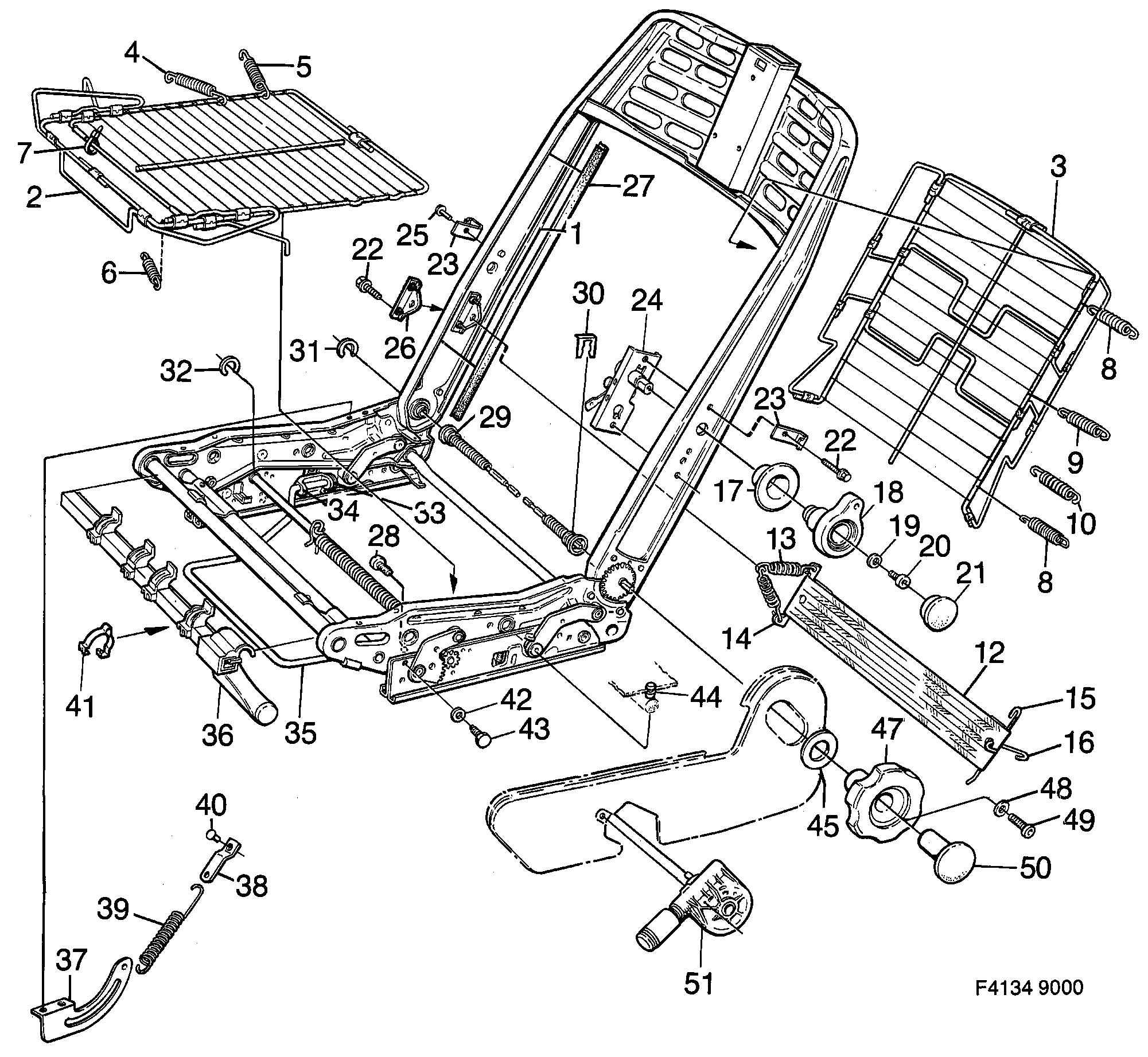

Saab 9000 Front seats Part 2 Manuel diagram

Pos	Article	Part No.
1	Seat frame	9896424
1	Seat frame	9694571
1	Seat frame	9896341
1	Seat frame	9896440
1	Seat frame	9694589
2	Wire matting	9656869
2	Wire matting	9673179
2	Wire matting	9783283
2	Wire matting	9673450
3	Wire matting	9697525
4	Spring	9758954
4	Spring	9673146
5	Spring	9758988
5	Spring	9673435
6	Spring	9758947
7	Tie strap	7971872
8	Spring	9759069
9	Spring	9759077
10	Spring	9771205
12	Strip	9770918
13	Spring	9579293 (replaces 9765355)
14	Brace	4531059 (replaces 9770942)
15	Brace	4531059 (replaces 9770926)
16	Hook	9770934
17	Cover washer	9785015
18	Steering wheel	9763632
19	Washer	8029944
20	Screw	8059396
21	Cover	9763624
22	Screw	7974330
23	Brace	9778895
24	Control	9763657
24	Control	9617325
24	Control	9777533
24	Control	9617333
25	Rivet	7975402
26	Bracket	9765330
26	Bracket	9864349
27	Protecting moulding	9671835
28	Screw	8019713
29	Shaft	9758608
30	Retaining ring	9777327
31	Retaining ring	7963143 (replaces 7915077)
32	Retaining ring	7963143
33	Washer	7398282 (replaces 7975592)
33	Washer	7398282
34	Ring	9782582
35	Shaft	9781774
35	Shaft	9659012
35	Shaft	9659020
36	Camshaft	9660853
36	Camshaft	9660861 (replaces 9777541)
36	Camshaft	9660861
37	Spring retainer	9795618
37	Spring retainer	9795626
38	Spring retainer	9795634
39	Spring	9795642
41	Clamp	9767518
42	Washer	92153033 (replaces 7916497)
43	Screw	92153212 (replaces 7972623)
44	Stop lug	9678434 (replaces 9765314)
45	Spacer	9797028
46	Reinforcement	9589045
47	Steering wheel	9758871
47	Steering wheel	9798356
50	Cover	9765132
51	Control	9658584
51	Control	9658592 (replaces 9777525)
51	Control	9658592
