Saab 9000 1985-1987 Front seats Part 1 Manuel

Group 8b Car body, internal, section 1060

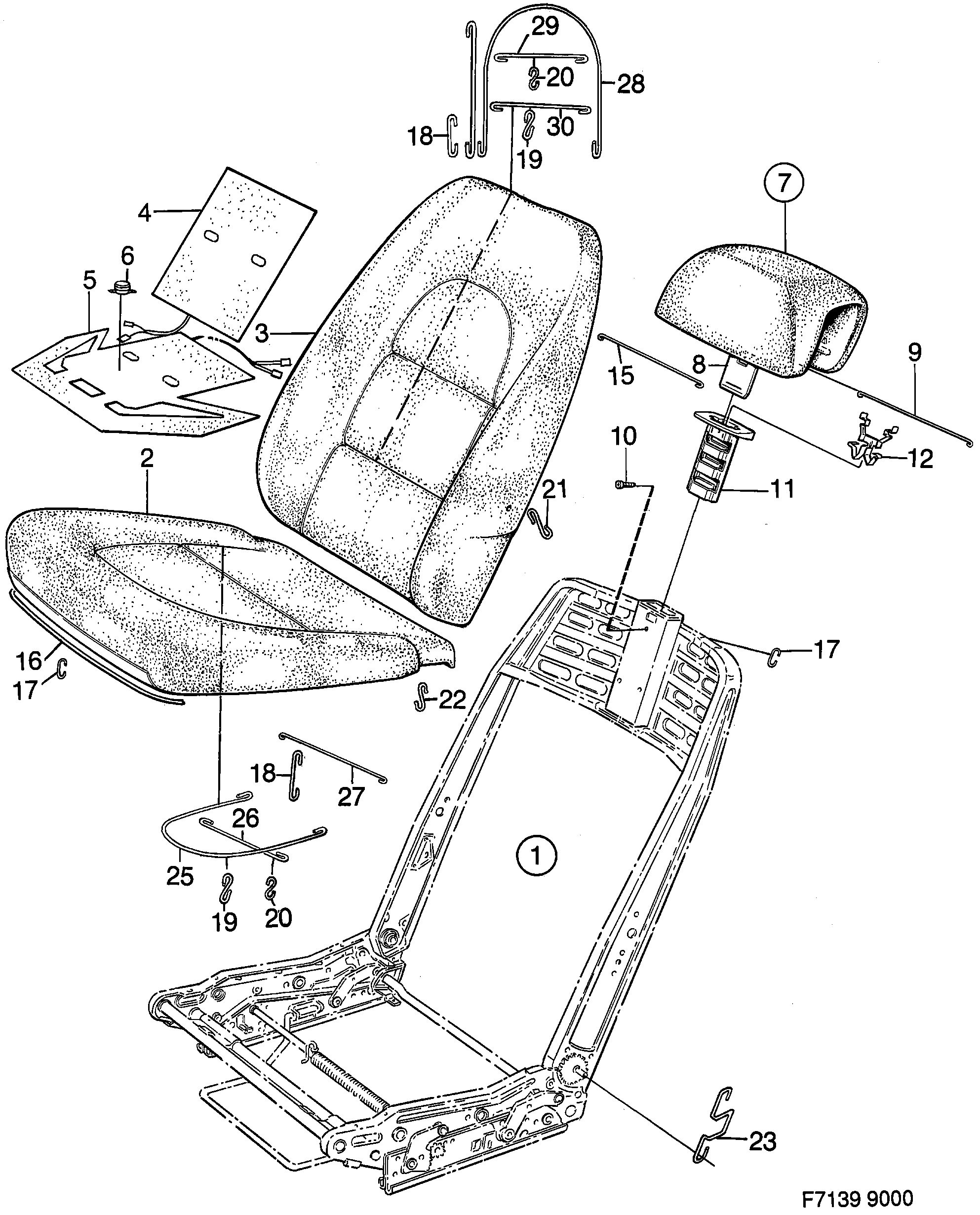

Saab 9000 Front seats Part 1 Manuel diagram

Pos	Article	Part No.
1	Seat	9777780
1	Seat	9777947
1	Seat	9777806
1	Seat	9777962
1	Seat	9892407
1	Seat	9894684
1	Seat	9894742
1	Seat	9892464
2	Seat cushion	4416525 (replaces 9696618)
2	Seat cushion	9677014
3	Backrest cushion	9758715
3	Backrest cushion	9874629
4	Heating element kit	8547523
4	Heating pad	9569955
4	Heating pad	9519877
5	Heating element kit	8547507
5	Heating element kit	8547515
5	Heating pad	4902342 (replaces 9527706)
5	Heating pad	9519869
6	Thermostat	9524745
7	Head restraint	9767807
8	Head restraint	9767815
9	Wire rod	9459868
10	Screw	7974348
11	Sleeve	4031563
12	Locking spring	9796848
15	Cover rod	9781592
16	Cover rod	9782558
17	Clamp	9450685 (replaces 7090640)
17	Clamp	9450685
18	Hook	9769209
19	Hook	9769217
20	Hook	9769225
21	Wire rod	9849530
22	Hook	9692864
23	Attaching brace	9783408
25	Wire rod	9692906
26	Wire rod	9721499
27	Wire rod	9584715
28	Wire rod	9671041
29	Wire rod	9721481
	Mounting kit	9676818
