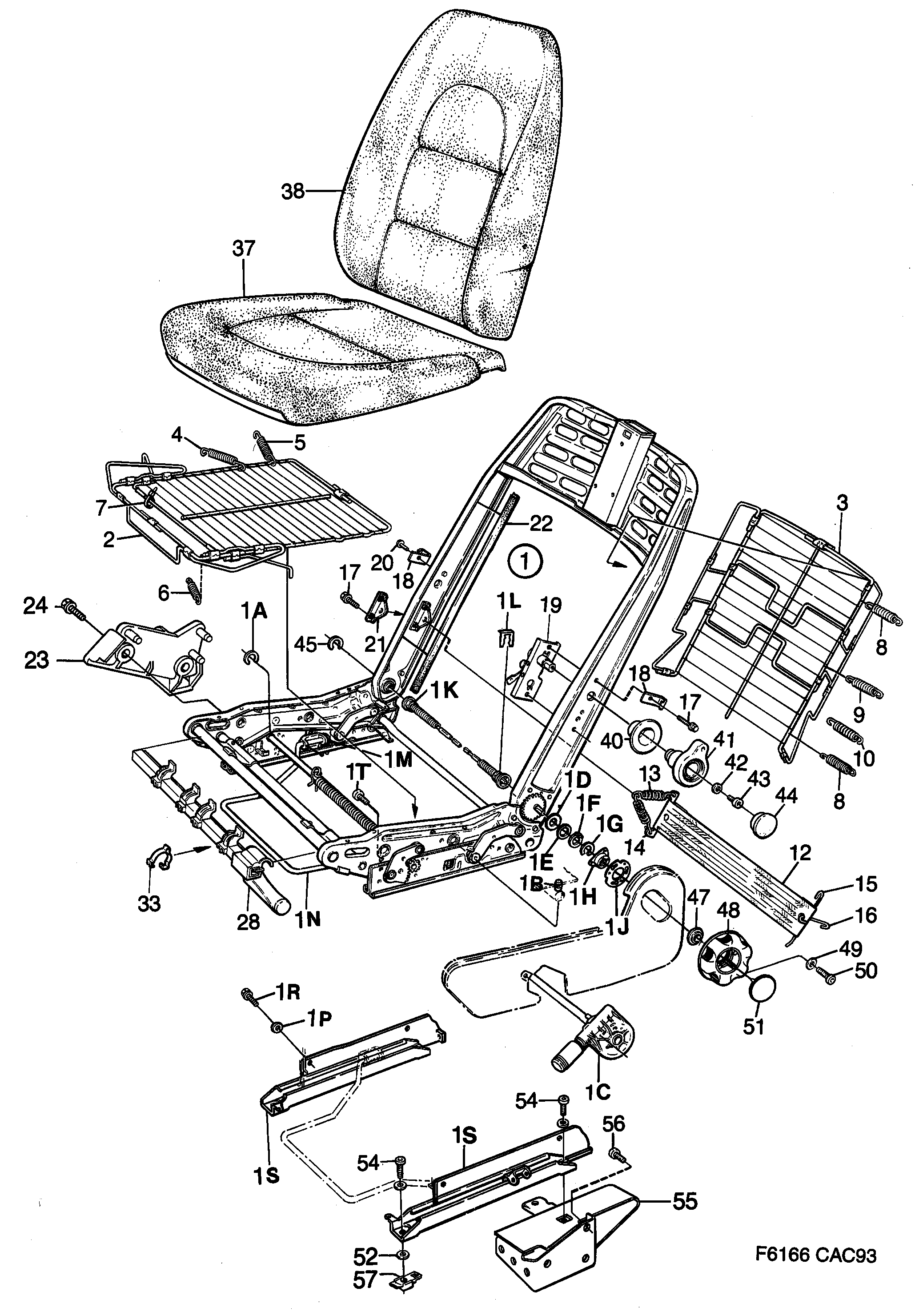

Group 8b Car body, internal, section 1040
| Pos | Article | Part No. |
|---|---|---|
| 1 | Seat frame | 4124798 |
| 1 | Seat frame | 4125209 |
| 1 | Seat frame | 4257671 |
| 1 | Seat frame | 4123105 |
| 1 | Seat frame | 4124806 |
| 1 | Seat frame | 4257697 (replaces 4125225) |
| 1 | Seat frame | 4257689 |
| 1 | Seat frame | 4257697 |
| 1A | Retaining ring | 7963143 |
| 1B | Stop ring | 9678434 |
| 1C | Control | 9658584 |
| 1C | Control | 9658592 |
| 1D | Washer | 9586967 |
| 1E | Ring | 9586975 |
| 1F | Washer | 9586983 |
| 1G | Retaining ring | 8123473 (replaces 7936016) |
| 1H | Brake | 9585613 |
| 1J | Spring clamp | 4043394 |
| 1K | Shaft | 9586249 |
| 1L | Retaining ring | 9777327 |
| 1M | Washer | 7398282 |
| 1N | Shaft | 9659012 |
| 1N | Shaft | 9659020 |
| 1P | Washer | 92153033 (replaces 7916497) |
| 1R | Screw | 92153212 (replaces 7972623) |
| 1S | Seat rail | 4048286 |
| 1S | Seat rail | 4134680 (replaces 4048294) |
| 1S | Seat rail | 4134672 |
| 1S | Seat rail | 4134680 |
| 1S | Seat rail | 9547852 |
| 1S | Seat rail | 9547860 |
| 1S | Seat rail | 4255832 |
| 1S | Seat rail | 4255840 |
| 1T | Screw | 8019713 |
| 2 | Wire matting | 9673179 |
| 2 | Wire matting | 9673450 |
| 2 | Wire matting | 4032934 |
| 3 | Wire matting | 9697525 |
| 4 | Spring | 9673146 |
| 5 | Spring | 9673435 |
| 6 | Spring | 9758947 |
| 7 | Tie strap | 7971872 |
| 8 | Spring | 9759069 |
| 9 | Spring | 9759077 |
| 10 | Spring | 9771205 |
| 12 | Strip | 9770918 |
| 13 | Spring | 9579293 |
| 14 | Brace | 4531059 (replaces 9770942) |
| 15 | Brace | 4531059 (replaces 9770926) |
| 16 | Hook | 9770934 |
| 17 | Screw | 7974330 |
| 18 | Brace | 9778895 |
| 19 | Control | 9617325 |
| 19 | Control | 9617333 |
| 20 | Rivet | 7975402 |
| 20 | Rivet | 92153060 (replaces 7972516) |
| 21 | Bracket | 9864349 |
| 22 | Protecting moulding | 9671835 |
| 23 | Support | 4142832 |
| 23 | Support | 4142824 |
| 24 | Screw | 92153219 (replaces 7922354) |
| 28 | Camshaft | 9660853 |
| 28 | Camshaft | 9660861 |
| 33 | Clamp | 9767518 |
| 37 | Seat cushion | 4416525 (replaces 9696618) |
| 37 | Seat cushion | 4416525 |
| 37 | Seat cushion | 9677014 |
| 38 | Backrest cushion | 30545238 (replaces 9696600) |
| 38 | Backrest cushion | 30545238 (replaces 4292934) |
| 38 | Backrest cushion | 9758715 |
| 40 | Cover washer | 9785015 |
| 41 | Steering wheel | 9763632 |
| 42 | Washer | 8029944 |
| 43 | Screw | 8059396 |
| 44 | Cover | 9763624 |
| 45 | Retaining ring | 7963143 (replaces 7915077) |
| 47 | Reinforcement | 9589045 |
| 48 | Control knob | 9546946 |
| 49 | Washer | 8029951 |
| 49 | Washer | 9166364 |
| 50 | Screw | 8059560 |
| 51 | Cover | 9851619 |
| 52 | Washer | 8073108 |
| 54 | Screw | 9781204 |
| 54 | Screw | 4134003 |
| 55 | Bracket | 9781162 |
| 55 | Bracket | 4256756 |
| 55 | Bracket | 9782210 |
| 55 | Bracket | 4256749 |
| 56 | Screw | 7974884 |
| 57 | Cage nut | 7975766 |
