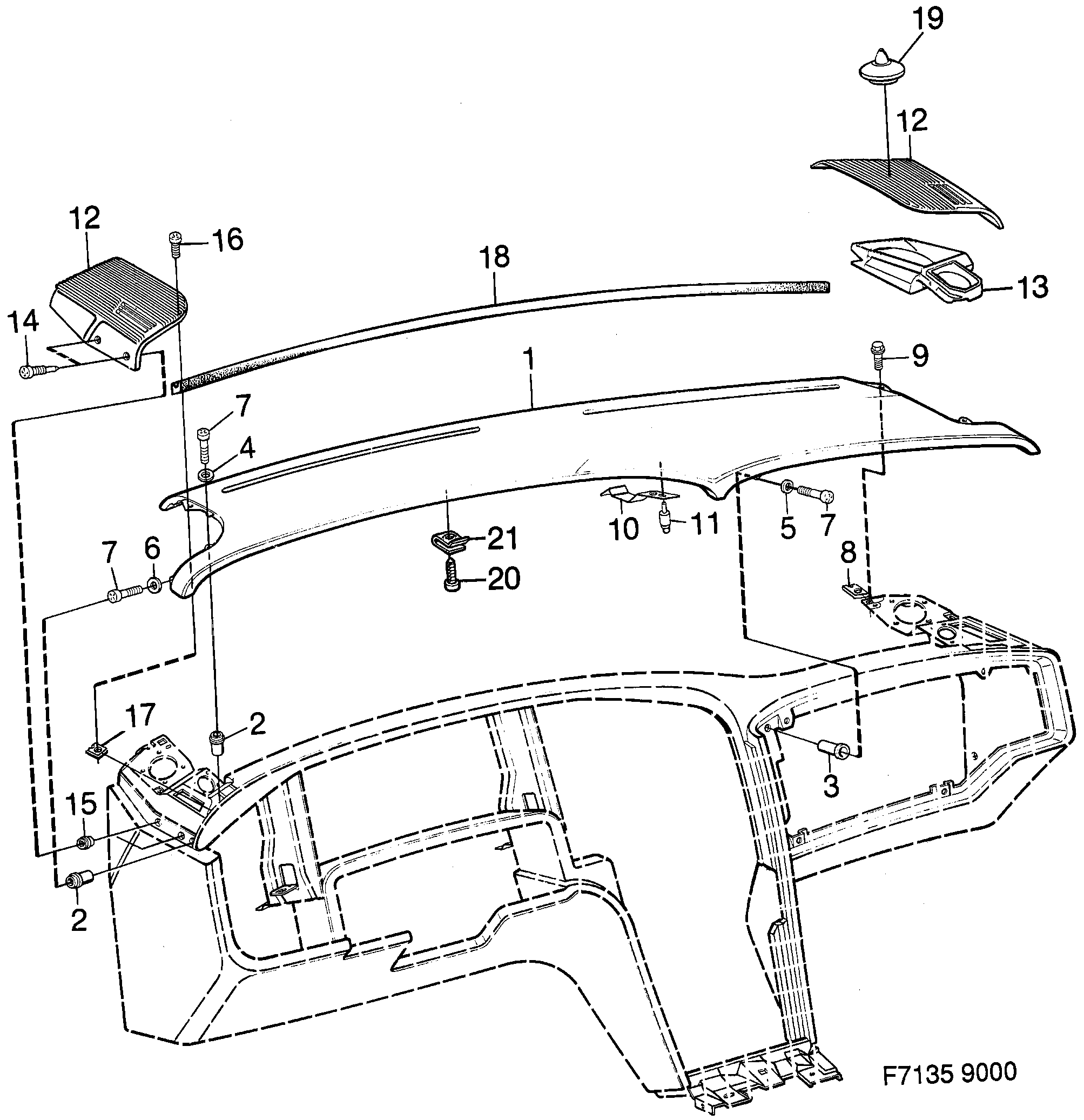

Group 8b Car body, internal, section 100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cover | 4080206 |
| 1 | Cover | 9679754 |
| 1 | Cover | 9768565 |
| 1 | Cover | 9679879 |
| 1 | Cover | 9768540 |
| 1 | Cover | 9679788 |
| 1 | Cover | 9679770 |
| 1 | Cover | 9768581 |
| 1 | Cover | 9679903 |
| 1 | Cover | 9679895 |
| 1 | Cover | 9768532 |
| 1 | Cover | 9669797 |
| 1 | Cover | 9679796 |
| 1 | Cover | 9582834 |
| 1 | Cover | 9768573 |
| 1 | Cover | 9669623 |
| 1 | Cover | 9679911 |
| 1 | Cover | 9582677 |
| 1 | Cover | 4080214 (replaces 9768557) |
| 1 | Cover | 4080214 |
| 1 | Cover | 4080248 (replaces 9768599) |
| 1 | Cover | 4080248 |
| 1 | Cover | 4080248 (replaces 9679929) |
| 1 | Cover | 9679762 |
| 1 | Cover | 9798497 |
| 1 | Cover | 9679887 |
| 2 | Nut | 9755729 |
| 2 | Blind rivet nut | 7399579 |
| 3 | Blind rivet nut | 9759846 |
| 4 | Washer | 7045776 |
| 5 | Washer | 32000431 (replaces 8029936) |
| 6 | Star washer | 92152203 (replaces 7915556) |
| 7 | Screw | 92150458 (replaces 8059263) |
| 8 | Clip nut | 92150164 (replaces 7972573) |
| 9 | Screw | 7973126 |
| 10 | Spring | 9761933 |
| 11 | Rivet | 7961634 |
| 11 | Rivet | 32000288 (replaces 7977804) |
| 12 | Grille, loudspeaker | 9768243 |
| 12 | Grille, loudspeaker | 9592973 |
| 12 | Grille, loudspeaker | 9768326 |
| 12 | Grille, loudspeaker | 9768284 |
| 12 | Grille, loudspeaker | 9676339 |
| 12 | Grille, loudspeaker | 9592999 |
| 12 | Grille, loudspeaker | 9768367 |
| 12 | Grille, loudspeaker | 9676388 |
| 12 | Grille, loudspeaker | 9798604 |
| 12 | Grille, loudspeaker | 9798612 |
| 12 | Grille, loudspeaker | 9768268 |
| 12 | Grille, loudspeaker | 9669755 |
| 12 | Grille, loudspeaker | 9582800 |
| 12 | Grille, loudspeaker | 9593005 |
| 12 | Grille, loudspeaker | 9768342 |
| 12 | Grille, loudspeaker | 9669581 |
| 12 | Grille, loudspeaker | 9582636 |
| 12 | Grille, loudspeaker | 4041158 (replaces 9768300) |
| 12 | Grille, loudspeaker | 9593021 |
| 12 | Grille, loudspeaker | 4041257 (replaces 9768383) |
| 12 | Grille, loudspeaker | 9768250 |
| 12 | Grille, loudspeaker | 9660630 |
| 12 | Grille, loudspeaker | 9768334 |
| 12 | Grille, loudspeaker | 9768292 |
| 12 | Grille, loudspeaker | 9660655 |
| 12 | Grille, loudspeaker | 9676347 |
| 12 | Grille, loudspeaker | 9768375 |
| 12 | Grille, loudspeaker | 9676396 |
| 12 | Grille, loudspeaker | 9768276 |
| 12 | Grille, loudspeaker | 9660648 |
| 12 | Grille, loudspeaker | 9669763 |
| 12 | Grille, loudspeaker | 4041208 (replaces 9582818) |
| 12 | Grille, loudspeaker | 9768359 |
| 12 | Grille, loudspeaker | 9669599 |
| 12 | Grille, loudspeaker | 9582644 |
| 12 | Grille, loudspeaker | 4041166 |
| 12 | Grille, loudspeaker | 4041166 (replaces 9660663) |
| 12 | Grille, loudspeaker | 4041265 (replaces 9768391) |
| 12 | Grille, loudspeaker | 9660622 |
| 12 | Grille, loudspeaker | 9798653 |
| 13 | Sealing collar | 9779802 |
| 13 | Sealing collar | 4032058 (replaces 9678517) |
| 13 | Sealing collar | 9779828 |
| 13 | Sealing collar | 9678582 |
| 13 | Sealing collar | 9660440 |
| 13 | Sealing collar | 4032041 (replaces 9678525) |
| 13 | Sealing collar | 9779836 |
| 13 | Sealing collar | 4032066 (replaces 9678590) |
| 14 | Screw | 7968084 (replaces 7977648) |
| 15 | Clip nut | 7935703 |
| 16 | Screw | 7975535 |
| 17 | Clip nut | 7972771 |
| 18 | Moulding | 9891367 |
| 18 | Felt strip | 9545534 |
| 19 | Cover | 9660739 |
| 19 | Cover | 9660747 |
| 19 | Cover | 9672239 |
| 19 | Cover | 9581539 |
| 19 | Cover | 9660754 |
| 19 | Cover | 9676719 |
| 19 | Cover | 9660762 |
| 19 | Cover | 9660721 |
| 20 | Screw | 7965353 |
| 21 | Clip nut | 7977317 |
