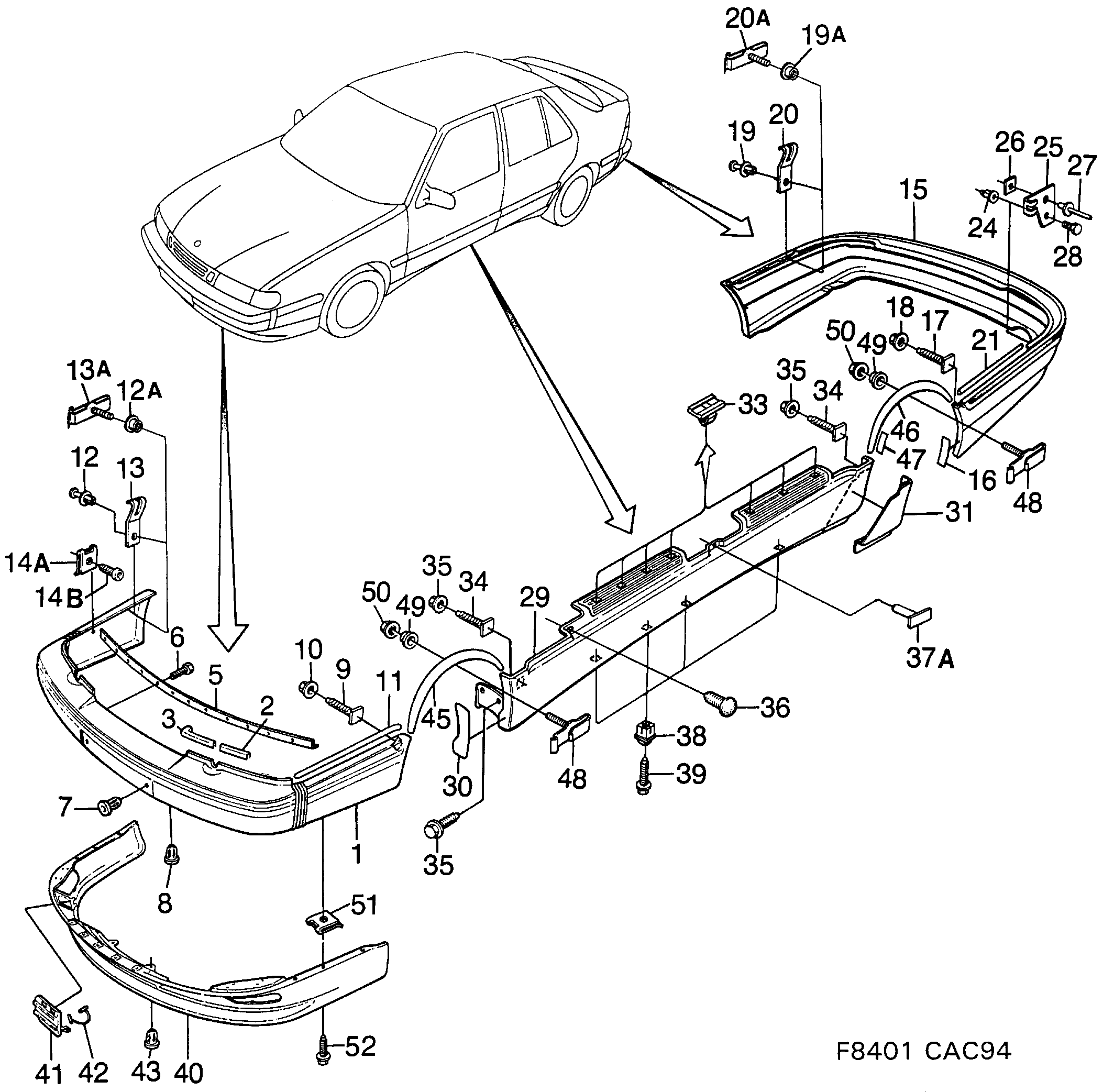

Group 8a Car body, external, section 990
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cover | 7497571 |
| 1 | Mounting kit | 7497589 |
| 1 | Cover | 4435178 |
| 2 | Seal | 4380036 |
| 3 | Seal | 4096756 |
| 3 | Seal | 4096749 |
| 5 | Attaching rail | 9081282 |
| 6 | Screw | 4446290 |
| 7 | Nut | 9087040 |
| 8 | Nut | 9288846 |
| 9 | Screw | 6959464 |
| 9 | Screw | 4087151 |
| 10 | Nut | 7399488 |
| 11 | Sealing strip | 4447611 |
| 11 | Sealing strip | 4484796 |
| 11 | Sealing strip | 4447603 |
| 12 | Rivet | 8667479 |
| 12A | Bushing | 7373269 |
| 13 | Attaching spring | 4342275 |
| 13A | Clip | 4090197 |
| 14A | Clip | 7977523 |
| 14B | Screw | 92151885 (replaces 7978638) |
| 15 | Cover | 7497597 |
| 15 | Cover | 8285413 |
| 16 | Protective foil | 8667214 |
| 16 | Protective foil | 8667206 |
| 21 | Sealing strip | 4447637 |
| 21 | Sealing strip | 4447629 |
| 21 | Sealing strip | 4484788 |
| 24 | Bushing | 6911804 |
| 25 | Attaching bracket | 4448874 |
| 25 | Attaching bracket | 4448866 |
| 26 | Washer | 9230293 |
| 27 | Rivet | 9849514 |
| 29 | Sill cover | 8285439 |
| 29 | Sill cover | 8285421 |
| 30 | Protective foil | 4447124 |
| 30 | Protective foil | 4447116 |
| 31 | Protective foil | 8662843 |
| 31 | Protective foil | 8662835 |
| 33 | Clamp | 4102000 |
| 36 | Clip | 92152407 (replaces 9668153) |
| 37A | Expanding rivet | 4447967 |
| 38 | Nut | 4008504 |
| 39 | Screw | 92153216 (replaces 7982325) |
| 40 | Spoiler | 4484739 (replaces 4435186) |
| 40 | Spoiler | 4484739 |
| 41 | Cover | 4342283 |
| 42 | Bracket | 6960926 |
| 45 | Fender flare | 4435137 |
| 45 | Fender flare | 4435129 |
| 46 | Fender flare | 8285447 |
| 46 | Fender flare | 8285454 |
| 47 | Protective foil | 8663270 |
| 47 | Protective foil | 8663262 |
| 49 | Bushing | 30521853 (replaces 9278151) |
| 52 | Screw | 92153149 (replaces 7977465) |
