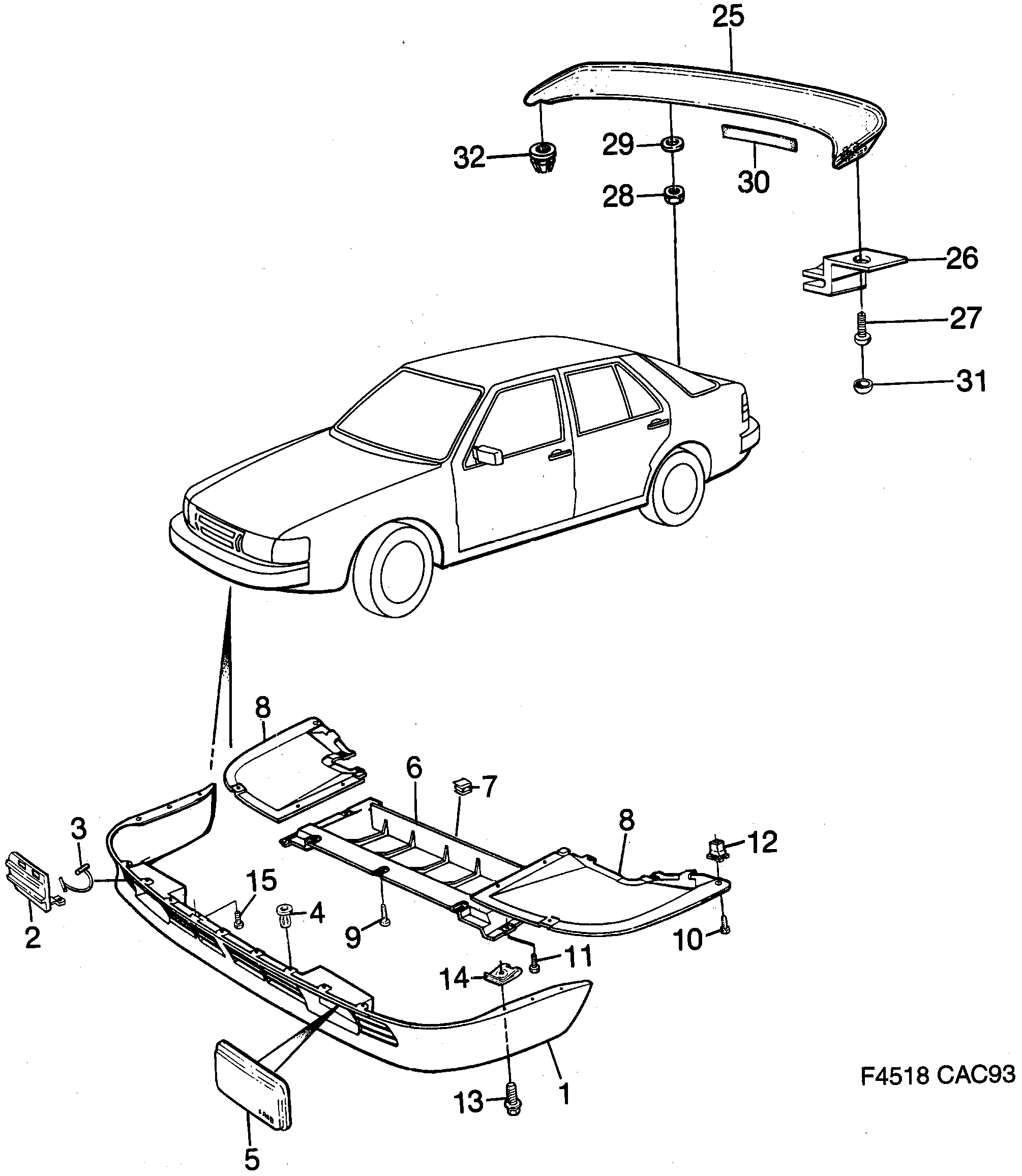

Group 8a Car body, external, section 980
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spoiler | 9262759 |
| 1 | Spoiler | 4092011 |
| 1 | Spoiler | 8661415 |
| 1 | Spoiler | 4343117 (replaces 6991608) |
| 1 | Spoiler | 4343117 |
| 1 | Spoiler | 4343117 (replaces 6954929) |
| 1 | Spoiler | 4344214 (replaces 4093183) |
| 1 | Spoiler | 4344214 |
| 2 | Cover | 6942429 |
| 2 | Cover | 6958904 |
| 3 | Bracket | 6960926 |
| 4 | Nut | 9288846 |
| 4 | Nut | 9087040 |
| 5 | Cover | 6991624 |
| 5 | Cover | 6991616 |
| 5 | Cover | 6956254 |
| 5 | Cover | 6956247 |
| 5 | Cover | 6991558 |
| 5 | Cover | 6991541 |
| 6 | Air shield | 9268079 |
| 6 | Air shield | 9276064 |
| 6 | Air shield | 9279589 |
| 6 | Air shield | 4008884 |
| 7 | Clamp | 9265331 |
| 8 | Shield | 9267972 |
| 8 | Shield | 9267964 |
| 8 | Shield | 6954879 |
| 8 | Shield | 6954861 |
| 8 | Shield | 4008256 |
| 8 | Shield | 4008249 |
| 9 | Screw | 92151807 (replaces 7976988) |
| 9 | Screw | 92153216 (replaces 7982325) |
| 11 | Screw | 92153149 (replaces 7977465) |
| 12 | Nut | 7975279 |
| 12 | Press nut | 7982655 |
| 13 | Screw | 7973134 |
| 14 | Clip | 7977523 |
| 15 | Screw | 7976996 |
| 25 | Spoiler | 8284283 |
| 25 | Spoiler | 8284275 |
| 25 | Spoiler | 4090924 |
| 26 | Attaching bracket | 9277864 |
| 27 | Screw | 8059537 |
| 28 | Nut | 7398423 |
| 29 | Washer | 12755938 (replaces 4089389) |
| 30 | Tape | 7874662 |
| 31 | Protecting cap | 9278847 |
| 32 | Clip | 4013454 |
| Washer | 4250114 | |
| Nut | 7977671 | |
| Mounting kit | 6962708 | |
| Mounting kit | 4009502 | |
| Mounting kit | 9267956 | |
| Mounting kit | 8284267 | |
| Mounting kit | 8284523 |
