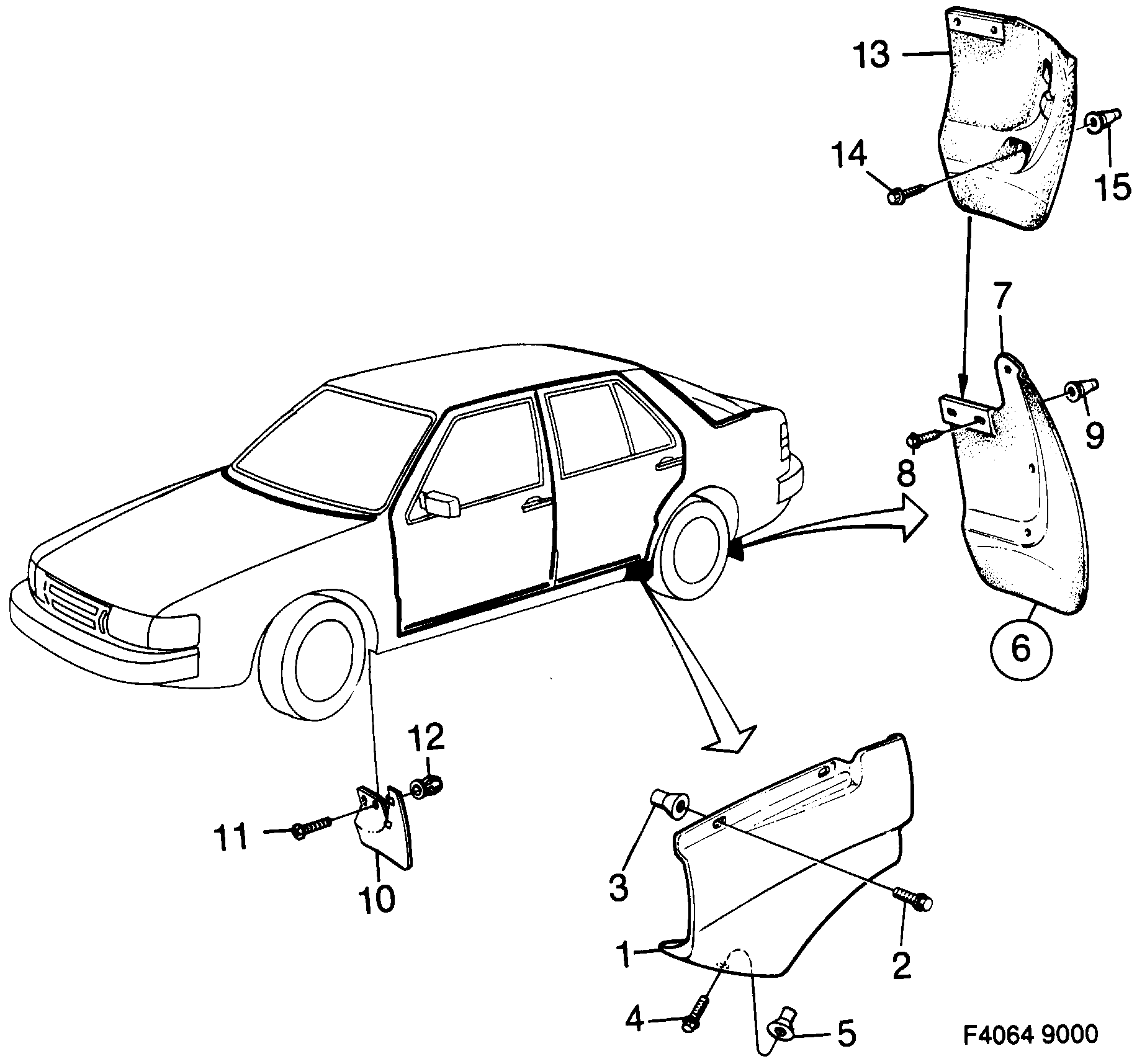

Group 8a Car body, external, section 970
| Pos | Article | Part No. |
|---|---|---|
| 1 | Protection | 9269432 |
| 1 | Protection | 6961999 |
| 1 | Guard | 9269424 |
| 1 | Protection | 6961981 |
| 2 | Screw | 92153005 (replaces 7969314) |
| 2 | Screw | 9776006 |
| 3 | Nut | 7975261 |
| 4 | Screw | 7973134 |
| 5 | Nut | 7975279 |
| 6 | Baffle | 7874431 |
| 6 | Baffle | 9698440 |
| 6 | Baffle | 9698457 |
| 7 | Baffle | 9268038 |
| 7 | Baffle | 9268020 |
| 8 | Screw | 92153149 (replaces 7975774) |
| 8 | Screw | 92153149 (replaces 7977465) |
| 8 | Screw | 7972672 (replaces 7978646) |
| 10 | Baffle | 8284721 (replaces 9698416) |
| 10 | Baffle | 9698424 |
| 10 | Baffle | 9698432 |
| 10 | Baffle | 9271495 |
| 10 | Baffle | 9279415 |
| 10 | Baffle | 4008942 (replaces 9271487) |
| 10 | Baffle | 4008942 (replaces 9279407) |
| 11 | Screw | 7981947 |
| 12 | Nut | 9288846 |
| 13 | Baffle | 6938914 |
| 13 | Baffle | 6938906 |
| 14 | Screw | 7973191 |
