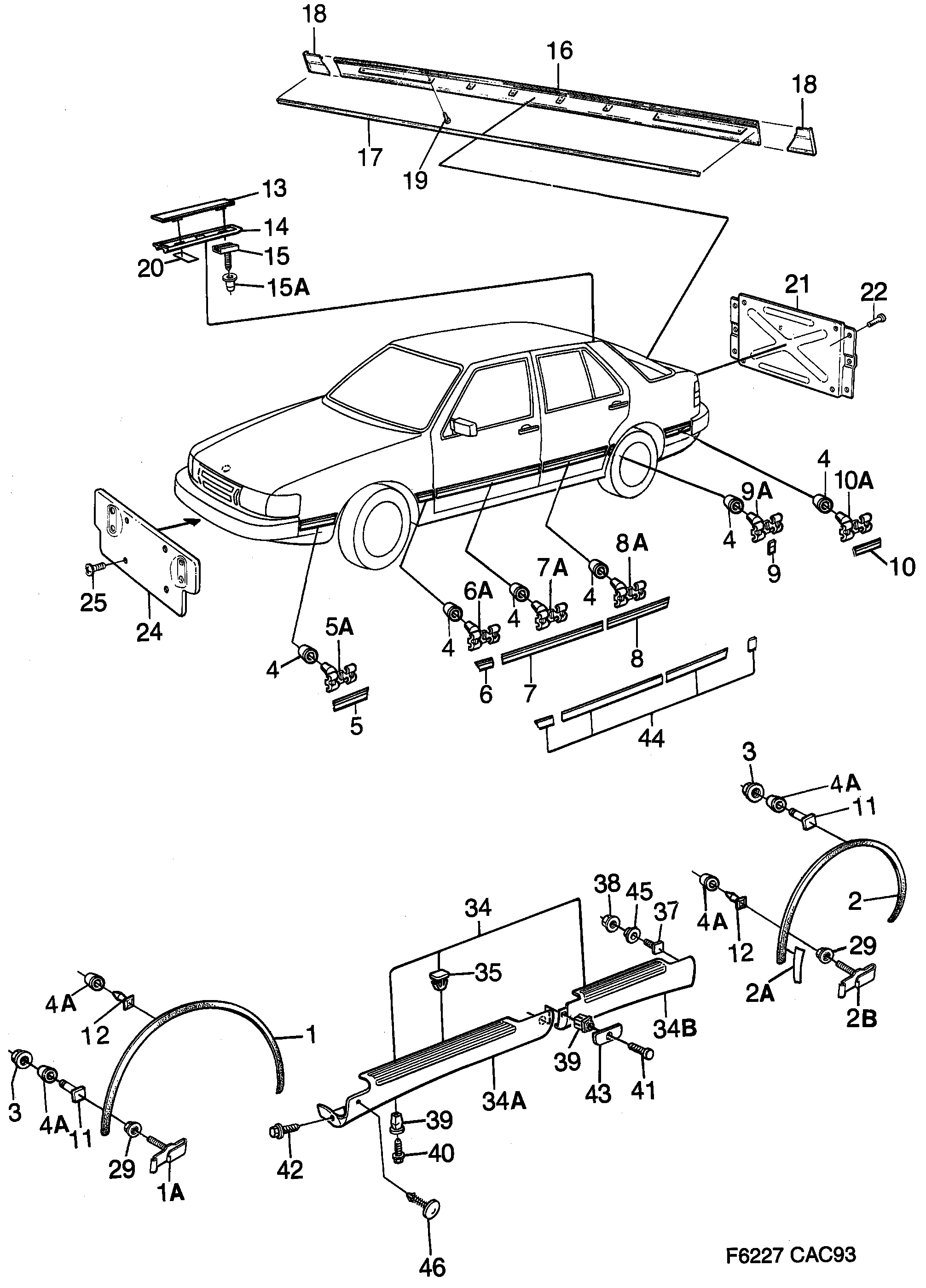

Group 8a Car body, external, section 890
| Pos | Article | Part No. |
|---|---|---|
| 1 | Wheel house moulding | 9257965 |
| 1 | Wheel house moulding | 9257957 |
| 1 | Wheel house moulding | 6993299 |
| 1 | Wheel house moulding | 6993307 |
| 1 | Wheel house moulding | 4251039 |
| 1 | Wheel house moulding | 4251047 |
| 1 | Wheel house moulding | 4251294 |
| 1 | Wheel house moulding | 4251302 |
| 1 | Fender flare | 8667545 |
| 1 | Fender flare | 8667537 |
| 1 | Fender flare | 8670861 |
| 1 | Fender flare | 8670853 |
| 1 | Fender flare | 6993174 |
| 1 | Fender flare | 6993182 |
| 1A | Clip | 4090197 |
| 2 | Wheel house moulding | 9258237 |
| 2 | Wheel house moulding | 9258229 |
| 2 | Wheel house moulding | 4251054 |
| 2 | Wheel house moulding | 4251062 |
| 2 | Wheel house moulding | 4251336 |
| 2 | Wheel house moulding | 4251344 |
| 2 | Fender flare | 8284648 |
| 2 | Fender flare | 8284630 |
| 2 | Fender flare | 8284820 |
| 2 | Fender flare | 8284812 |
| 2 | Fender flare | 6993190 |
| 2 | Fender flare | 6993208 |
| 2A | Protective foil | 8663270 |
| 2A | Protective foil | 8663262 |
| 2A | Protective foil | 8667198 |
| 2A | Protective foil | 8667180 |
| 3 | Nut | 7399488 |
| 4 | Bushing | 7373269 |
| 4A | Bushing | 30521853 (replaces 9278151) |
| 5 | Decor strip | 9255266 |
| 5 | Decor strip | 9255274 |
| 5 | Decor strip | 6992663 |
| 5 | Decor strip | 6992671 |
| 5A | Clip | 9266651 |
| 6 | Decor strip | 9255282 |
| 6 | Decor strip | 9255290 |
| 6 | Decor strip | 6992689 |
| 6 | Decor strip | 6992697 |
| 7 | Decor strip | 9255308 |
| 7 | Decor strip | 9255316 |
| 7 | Decor strip | 6992705 |
| 7 | Decor strip | 6992713 |
| 8 | Decor strip | 9255324 |
| 8 | Decor strip | 9255332 |
| 8 | Decor strip | 6992721 |
| 8 | Decor strip | 6992739 |
| 9 | Decor strip | 9255340 |
| 9 | Decor strip | 9255357 |
| 9 | Decor strip | 6992747 |
| 9 | Decor strip | 6992754 |
| 10 | Decor strip | 9255365 |
| 10 | Decor strip | 4254215 (replaces 9255373) |
| 10 | Decor strip | 4254207 |
| 10 | Decor strip | 4254215 |
| 10 | Decor strip | 6992762 |
| 10 | Decor strip | 6992770 |
| 11 | Screw | 7399470 |
| 11 | Screw | 4087151 |
| 12 | Clip | 9253329 |
| 13 | Decor | 9268202 |
| 13 | Decor | 9267394 |
| 13 | Decor | 4097457 |
| 13 | Decor | 4097440 |
| 14 | Decor strip | 9269713 |
| 14 | Decor strip | 9269705 |
| 14 | Decor strip | 6993513 |
| 14 | Decor strip | 6993505 |
| 15 | Clip | 9269697 |
| 15 | Clip | 9087560 |
| 15A | Bushing | 4096616 |
| 16 | Shield plate | 9251471 |
| 17 | Sealing strip | 9252057 |
| 18 | End piece | 9252131 |
| 18 | End piece | 9252123 |
| 19 | Screw | 7965544 |
| 20 | Tape | 9288127 |
| 21 | Bracket | 9272139 |
| 22 | Screw | 8059578 |
| 29 | Bushing | 4089934 |
| 34 | Kit | 8284705 (replaces 8284689) |
| 34A | Sill protection | 4007175 |
| 34B | Sill protection | 4007191 |
| 35 | Clamp | 4102000 (replaces 4008025) |
| 34 | Kit | 8284713 (replaces 8284697) |
| 34A | Sill protection | 4007167 |
| 34B | Sill protection | 4007183 |
| 34 | Kit | 8284705 |
| 34A | Sill protection | 6962138 |
| 34B | Sill protection | 6962153 |
| 35 | Clamp | 4102000 |
| 34 | Kit | 8284713 |
| 34A | Sill protection | 6962120 |
| 34B | Sill protection | 6962146 |
| 37 | Screw | 6959464 |
| 39 | Nut | 4008504 (replaces 4005237) |
| 40 | Screw | 92153149 (replaces 7977465) |
| 41 | Screw | 92150118 (replaces 7970536) |
| 42 | Screw | 7981947 |
| 43 | Cover washer | 30543650 (replaces 4098786) |
| 44 | Stripes kit | 8664807 |
| 39 | Nut | 4008504 |
| 40 | Screw | 92153216 (replaces 7982325) |
| 41 | Screw | 8059578 (replaces 9778952) |
| 43 | Cover washer | 30543650 (replaces 4293486) |
| 43 | Cover washer | 30543650 (replaces 4294062) |
| 46 | Clip | 92152407 (replaces 9668153) |
| Mounting kit | 12804284 (replaces 9240086) | |
| Mounting kit | 7496029 | |
| Mounting kit | 7496037 | |
| Moulding kit | 8284374 | |
| Moulding kit | 8284382 |
